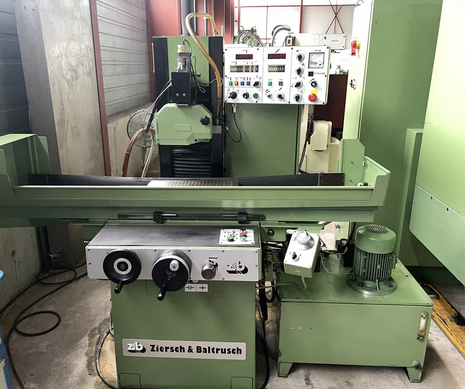

Ziersch & Baltrusch FS4.20T

Surface grinder
Table length: 450 mm
Table width: 150 mm
Grinding length: 400 mm
Grinding width: 200 mm
X-axis travel: 620 mm
Y-axis travel: 200 mm
Z-axis travel: 250 mm
Table speed (stepless): 2–33 m/min
Grinding wheel diameter: 225 mm
Grinding wheel width: 25 mm
Grinding wheel bore: 51 mm
Grinding wheel speed (stepless): up to 4000 rpm
Grinding spindle motor: 12.6 kW
Voltage: 380 V, 3-phase, 50 Hz
Magnetic plate length: 450 mm
Magnetic plate width: 170 mm
Coolant system included
Paper filtration system included
Redressing device included
New grinding wheel quantity: 1
Machine weight: 2000 kg
Overall length: 1800 mm
Overall width: 1700 mm
Overall height: 2100 mm
