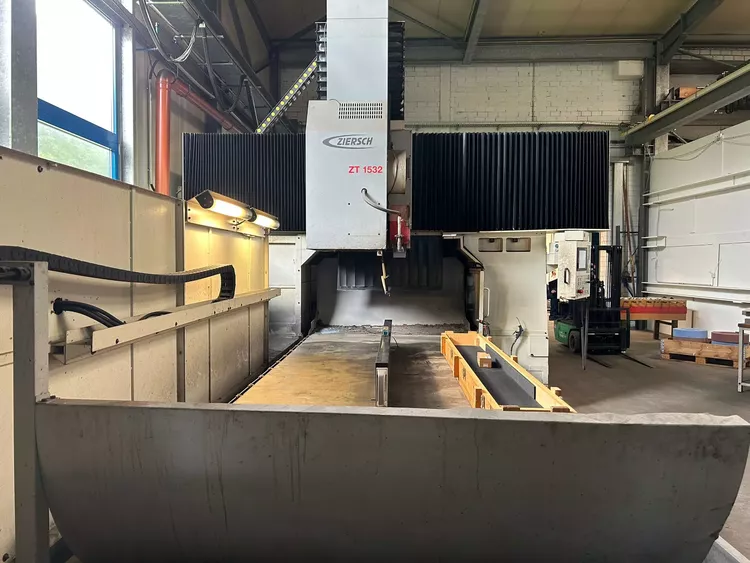

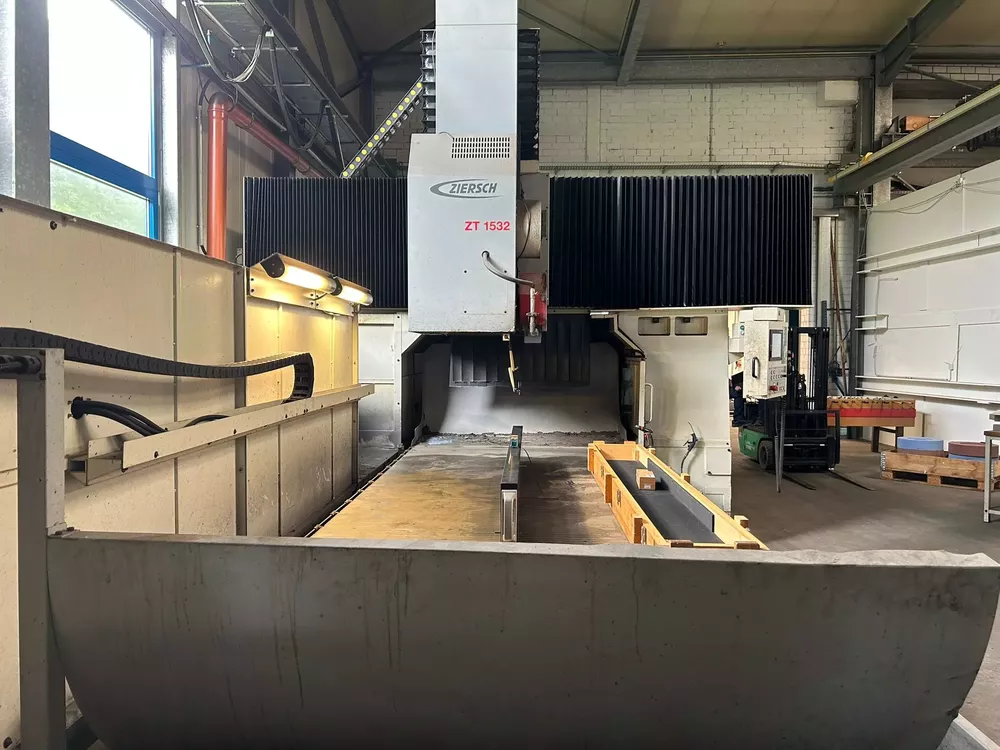

Ziersch & Baltrusch ZT 1532 3 Axis

X Axis Travel: 1680 mm
Y Axis Travel: 3300 mm
Z Axis Travel: 400 mm
Feedrate (X/Y/Z): 30 / 2 / 2 m/min
Control: Mitsubishi GOT 1000
Grinding Length: 3200 mm
Max Grinding Width: 1800 mm
Grinding Height: 500 mm
Grinding Wheel Diameter: 500 mm
Max Grinding Wheel Width: 120 mm
Spindle Speed Range: 1000–3000 rpm
Motor Power: 32 kW
Table Size: 3200 × 1500 mm
Max Workpiece Weight: 6000 kg
Connected Load: 66 kW
Machine Weight: 39000 kg
Machine Dimensions (L×W×H): 11.03 × 6.075 × 4.45 m
Magnetic Chuck: 3200 × 1500 mm
Coolant Tank: 1000 l
Paper Band Filter
Oil Mist Extraction
Dressing Device
Various Grinding Wheels
