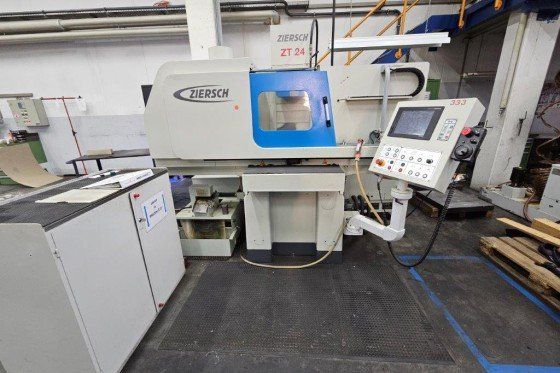

Ziersch ZT 24

Ziersch ZT 24
2010

Control Mitsubishi TOUCH Panel
Sturdy cast iron construction of all machine components
High machine weight for maximum rigidity
Preloaded precision linear guideways in vertical and cross axis (Bosch Rexroth)
Scraped and turcite coated slideways in longitudinal axis
Hydraulic longitudinal motion with return cooling unit
Electro-mechanic cross- and vertical motion
Measuring system in vertical axis (Heidenhain)
Maintenance-free paper band filtration unit with 500 l tank and 2-bar pressure pump
Integrated rinsing channel
Magnetic separator for prefiltration of paper band filtration unit
Infinitely variable grinding spindle motor
Machine lamp
Table-mounted dressing device for high precision and surface finish
Electro-permanent magnetic chuck (SAV) with integrated pole changing and traction regulation
Partial machine encapsulation with sliding door and service door
Effective splash guard and excellent accessibility
Preparation for coolant mist exhaust unit installation
Comfortable and easy-to-operate Z-control system
Automatic vertical infeed with dressing amount compensation
Fully automatic grinding cycle with dressing cycles
Touchscreen operation
Large 10.4" color screen
Electronic handwheel usable in vertical and cross axis
X-Travel 600 mm
Y-Travel 220 mm
Z-Travel 540 mm
Table Length 400 mm
Table Width 250 mm
Dimensions L x W x H 3050 x 2050 x 2510 mm
Weight 2900 kg
