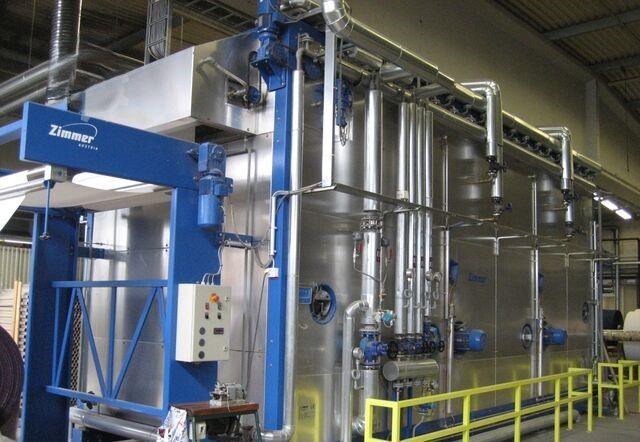

Zimmer Thermocure UHD 3 Universal Loop Steamer 200 Cm

for the operation with saturated steam 102 - 104 °C
with height temperature steam max. 185°C
with hot air max. 170°C
Machine like new , used only few years in one shift, after 2011 preserved

Technical Data:
Max material width : 200 cms
Max material content : 240 meters
Loop length : max. 2,8 m
Cloth qualities : woven or knitted goods – single width
Max. mechanic speed : 5 - 50 m/min.
Steaming duration : 5-40 minutes
Heating medium : saturated steam: min. 3 bar, max. 8 bar
Average steam consumption :approx. 500 - 1000 kg/h
Heating medium for high
temperature operation: Thermooil, 280°C, 12 m3/h, approx. 280 kW
Service voltage : 3 x 400 V 50 cy.
Control voltage : 230 V 50 cy
Electrical drive and air fan capacity: approx. 28 kVA
Compressed air : 1⁄2” , 6 bar
+
Thermal-oil heating unit for high temperature steam operation type HEIZA
Type : HW - S - 02 / K with Weishaupt burner, fired by gas
