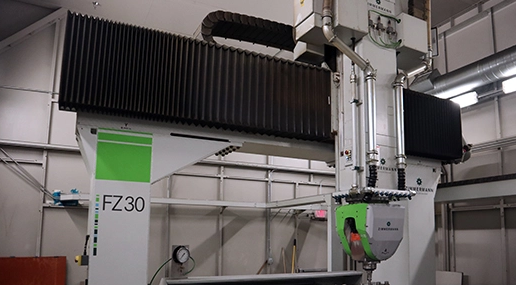

Zimmermann FZ 30 3 Axis

Used CNC bridge-type vertical machining center
Large capacity table 8000 × 3000 mm
HSK-63A tool holder
High-power milling spindle
Coolant supply
Minimum-quantity lubrication
Air blowing external and through tool

Travel X 6300 mm / 248"
Travel Y 3360 mm / 132.2"
Travel Z 1500 mm / 59"
Table size 8000 × 3000 mm / 314.96 × 118.1"
Table height 400 mm / 15.78"
C axis ±360°
A axis ±110°
Maximum table load 30,000 kg/m²
T-slot pitch 250 mm
Acceleration (linear axes) 1.5 m/s²
Torque A axis 1200 Nm
Torque C axis 1047 Nm
Holding torque (clamped) 3000 Nm
Positioning accuracy A/C axis 10"
Feedrate about A/C axis 360°/s
Repeatability A/C axis 6"
Spindle motor 40 kW
Spindle power S1 (100%) 40 kW, S6 (40%/2min) 53 kW
Maximum spindle torque S1 (100%) 48 Nm, S6 (40%/2min) 63 Nm
Constant power range 8000–25000 rpm
Tool holder HSK-63A
Swivel axis – spindle nose 286 mm
Tool clamping spring clamp
Tool release hydraulic
Lubrication permanent grease lubrication
