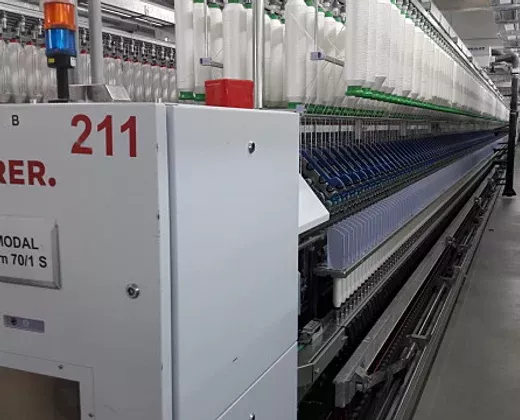

Zinser 351 Ring spinning linked with winder

Ref : 2296988-1-AS
Condition : Used
Manufacturer : Zinser
Model : 351
Short Description : Ring spinning linked with winder
Year(s) : 2014
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)
Last check : 05 Jul. 2021

Make: Zinser
Model: 351
Year: 2014
No. of spindles: 1152 each ring frame
Ring diameter: 42 mm
Gauge: 70mm
Ring spinning type: Bracker Titan
Ring profil: Normal
Tube length: 230mm
Tube conicity: 1:38
With Co-We-Mat type 395V
El. power: 3 x 400V, 50Hz
Main motor: 65Kw
With creel Zinser for flyer bobbins
4 rows
Length of bobbins: 450mm
Diameter of bobbin: max 130mm
Draw system: PK2630SE
Entrance upper cylinder: LP1002
Middle upper cylinder: LP1003
Exit upper cylinder: LP1002
Size of upper cylinders: D19 – D30 – D28
Coating upper cylinder: Accotex J470 round, 70o Shore
Upper holder: OH2122
Upper belts: Accotex 78210G
Lower diameter cylinders : 32 – 30,5 – 32mm
Lower belts : Accotex 78210G
Size of lower belts: D79 x 30 x 1,1mm
Clean cylinders
Synchrodraft
With suction tubes

Each ring spinning machine is linked to winder
Schlafhorst Autoconer X5 Type V
Make: Schlafhorst
Model: Autoconer X5
Year: 2014
26 heads each machine
Traverse: 6“ / 150mm
Machine length: 15,043 m
Machine width: 1,940 m
CTS+Caddystation ( Continuous Transfer Station)
3 x 400V, 50Hz
Auto Vacuum Control ( AVC)
With splicer
Yarn clearer: Loepfe
2 machines have Precy FX System
2 machines have standard drum system
