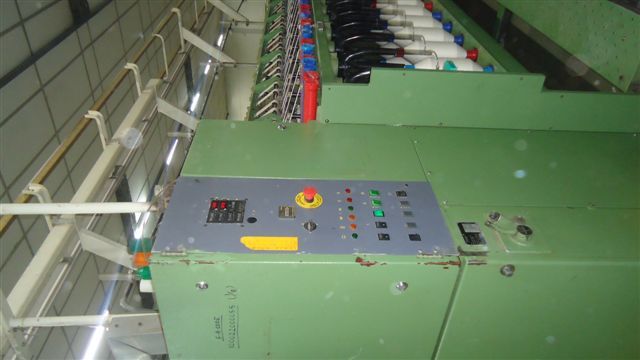

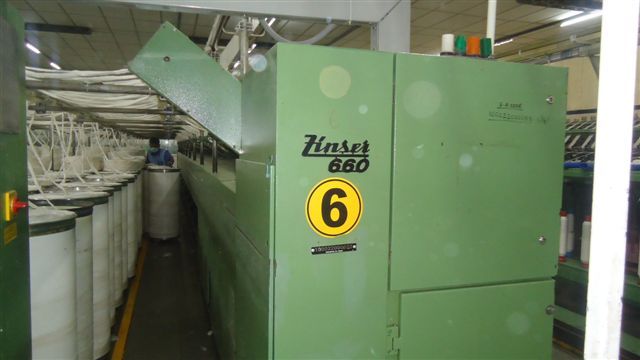

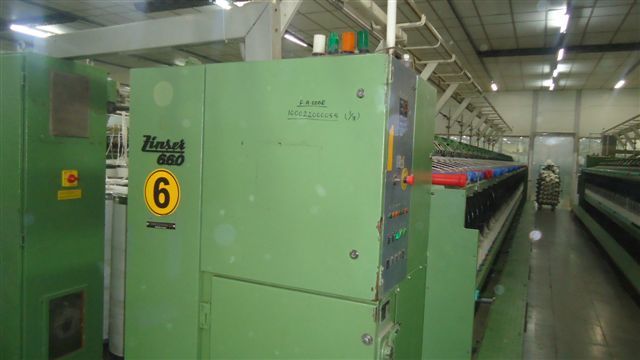

Zinser ZINSER speed frame

Ref : 1068601-1-FM
Condition : Used
Manufacturer : Zinser
Model : ZINSER
Short Description : speed frame
Year(s) : 1995
Quantity : 0
Location : Seller or machines location:
ASIA (South)
Last check : 21 Feb. 2014

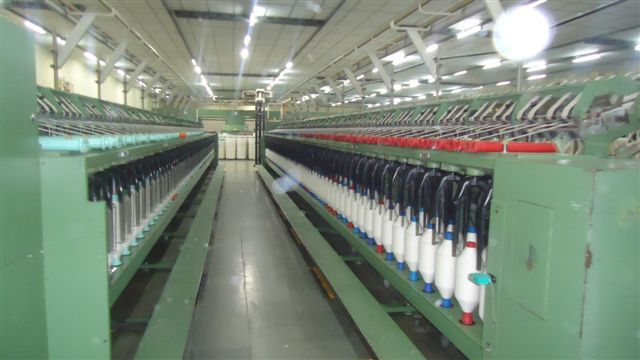

6 No. Zinser Speed Frames, Technical Specs are as follows:









Sr.


Particulars / No of machines


6

1


Make


Zinser

2


Model


660

3


Year of Manuf.


1995

4


No of spindles/Machines


120

5


Spindle Gauge


260

6


Bobbin Rail Travel


350, 400mm (14'' - 16'')

7


Bobbin Diameter


Up to 175mm (7")

8


Flyer Speed


1300rpm

9


Drafting System Delivery


Max. 28m/min.

10


Drafting System


3-Roller doubler apron

11


Draft


5 to 12 Fold

12


Roving Count


1250 to 165 tex (Nm0.8 to 6.0)

13


Twist Range


13.5 to 70T/m

14


Bottom Roll Dia.


F. Roll -30mm, M. Roll-25.5mm, B. Roll-30mm

15


Cots Size


19x30x40mm, SH-83 (Alu. Core)

16


Apron Size


Top -37x39.8x1.1mm, Bottom- 88.9x42.1.1mm




Electrical details:

16


Main drive motor


18.5 KW (with Inverter drive)

17


Power Supply


3 Phase 415 V + 10%, 50 Hz





--
