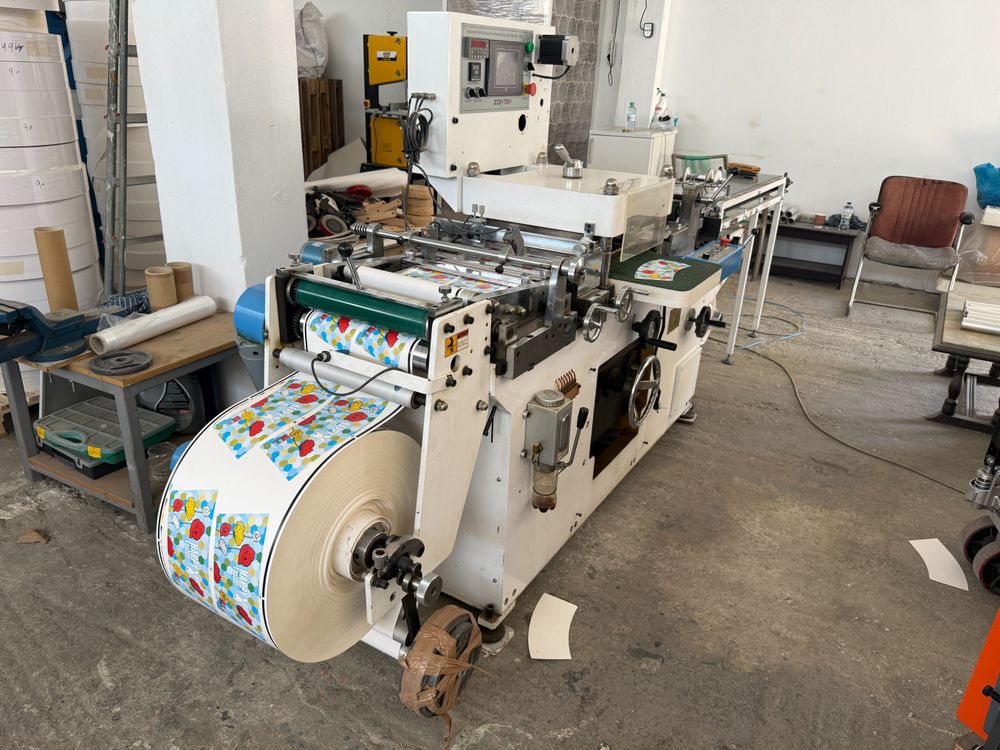

Zonten MQ 320 B

The ZONTEN MQ-320 is a professional-grade, high-precision flatbed die-cutting machine.
Below are the standard technical specifications and dimensions for this model:

Technical Specifications :
Max Web Width: 320 mm
Max Die-Cutting Width: 300 mm
Max Die-Cutting Length: 290 mm
Cutting Speed: Typically 20–220 cycles per minute, depending on the specific machine configuration.
Positioning Accuracy: ±0.1 mm
Max Unwind/Rewind Diameter: 500 mm
Total Power Capacity: 2.7 kW
Power Requirement: 220V (±5%)

Physical Dimensions & Weight :
Overall Dimensions (L x W x H): Approximately 2800 x 1100 x 1600 mm
Machine Weight: Approximately 1500 kg
