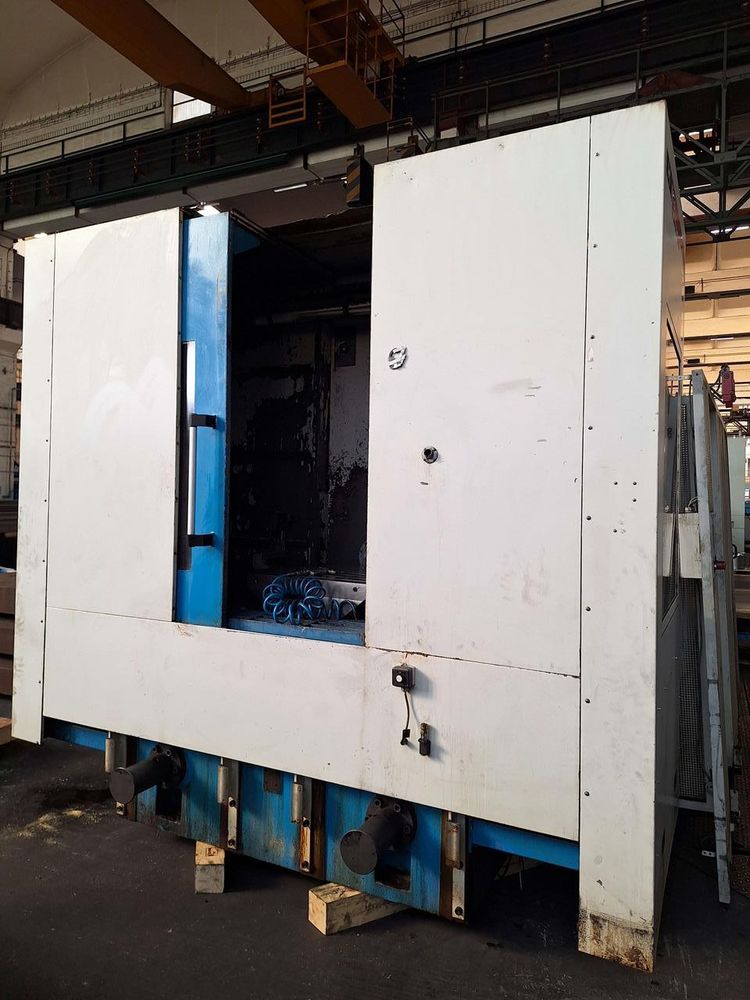

ZPS H 63 3 Axis

Control system: Heidenhain iTNC 530
Hours on: 22000 h
Length of the working table: 800 mm
Width of the working table: 630 mm
Number of stack positions: 102
Maximum rotary speed of the spindle: 8000 1/min

X-Axis travels: 1010 mm
Y-Axis travels: 800 mm
Z-Axis travels: 1010 mm
Taper: ISO 50

Max. tool diameter: 125 mm
Max. tool lenght: 450 mm
Max. tool weight: 35 kg
Machine weight: 16 t

Equipment:
Chip convoyer
Axis B
Tool cooling via the spindle axis
Workpiece probe BLUM TS50
Tool probe BLUM MINI NT
Oil mist extraction FX 7002
2022 – Replacement of the Z-axis ball screw
2017 – Replacement of the B-axis motor
2010 – Replacement of the Y-axis measuring scales
2009 – Replacement of the filtration pump for high-pressure coolant
