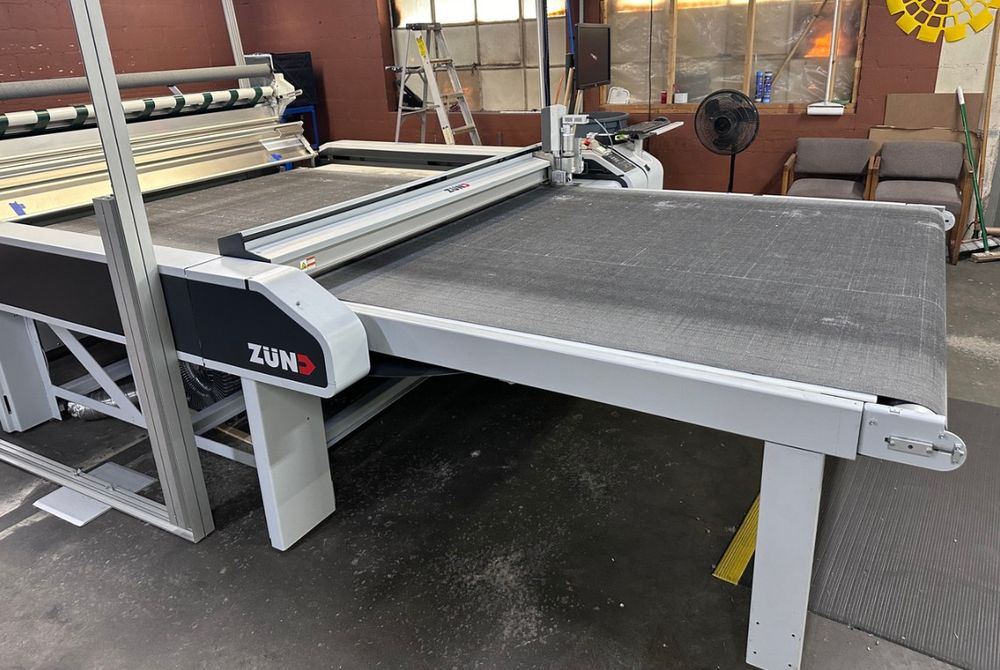

Zund S3 L-1600

CNC Digital Cutter w/ Overhead Camera System and Auto Roll Feeder
Specifications:
- Working Area: 1800 mm x 1630 mm (approx. 70" x 64").
- Max Material Thickness: Up to 25 mm (approx. 1 inch).
- Performance: Features a maximum X/Y axis speed of 1414 mm/s (55 in/s) and acceleration up to 1.4 m/s² (1G).

- Precision: High repeatability of ±0.03 mm and position accuracy of ±0.1 mm/m.
- Tooling: Dual-module slots allow for two different tools to be mounted simultaneously for multi-step jobs.

Features:
- Vacuum Bed: Uses an energy-efficient vacuum generator with adjustable hold-down across the width of the machine.
- Zünd Cut Center (ZCC): An intuitive software suite that guides the operator through the workflow for maximum efficiency.
- Automated Setup: Features an automated initialization system for quick and precise tool depth adjustment.
- Vision System: Optional overhead camera systems (like the OCC) can read registration marks to compensate for print distortions.

The S3 digital cutter is compatible with a wide range of materials:
- Rigid Materials: Acrylic, aluminum, Dibond, MDF, and corrugated boards using routing and creasing tools.
- Flexible Materials: Vinyl, film, leather, and textiles using specialized knives (kiss-cut, oscillating, or drag).
- Foams: Polystyrene and polyurethane using specialized V-cutting tools for 3D structures
