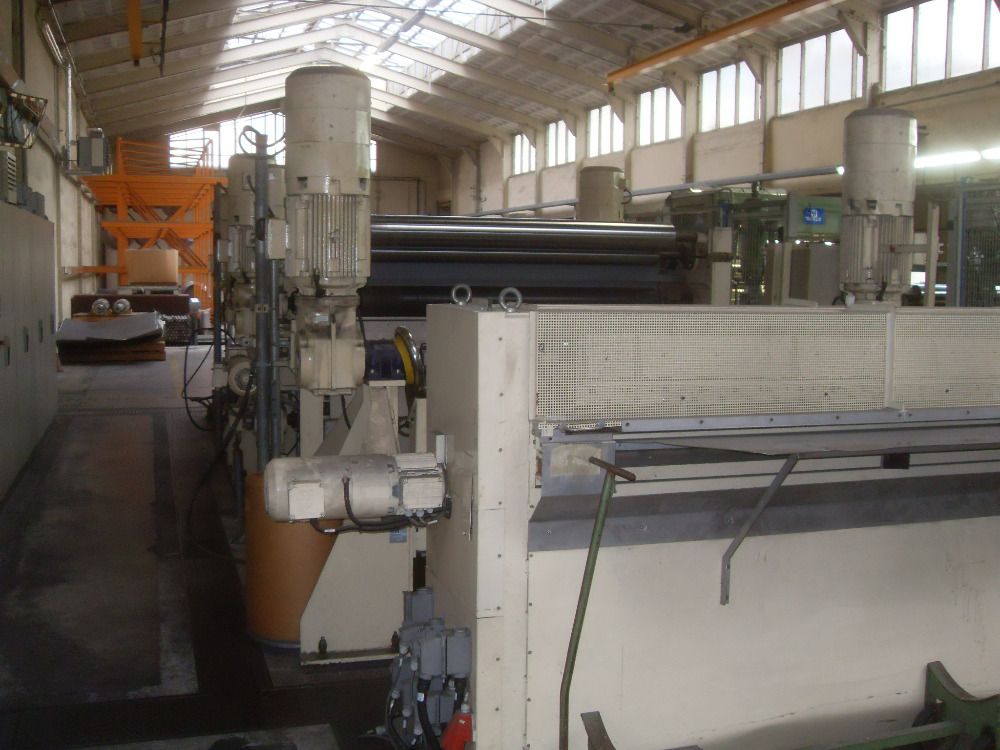

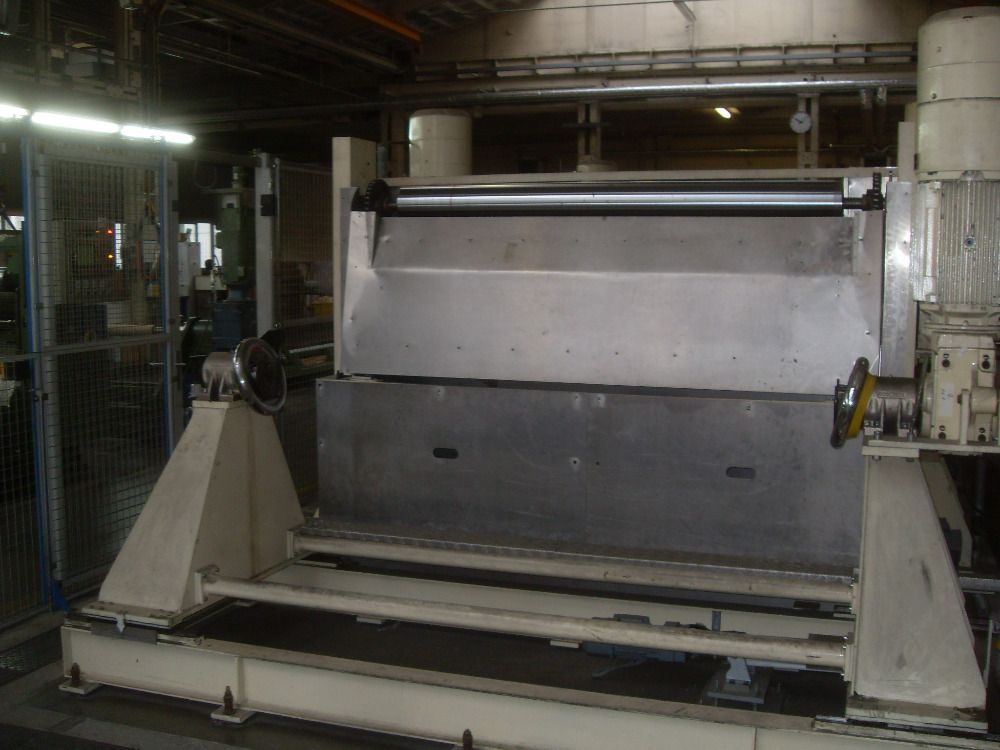

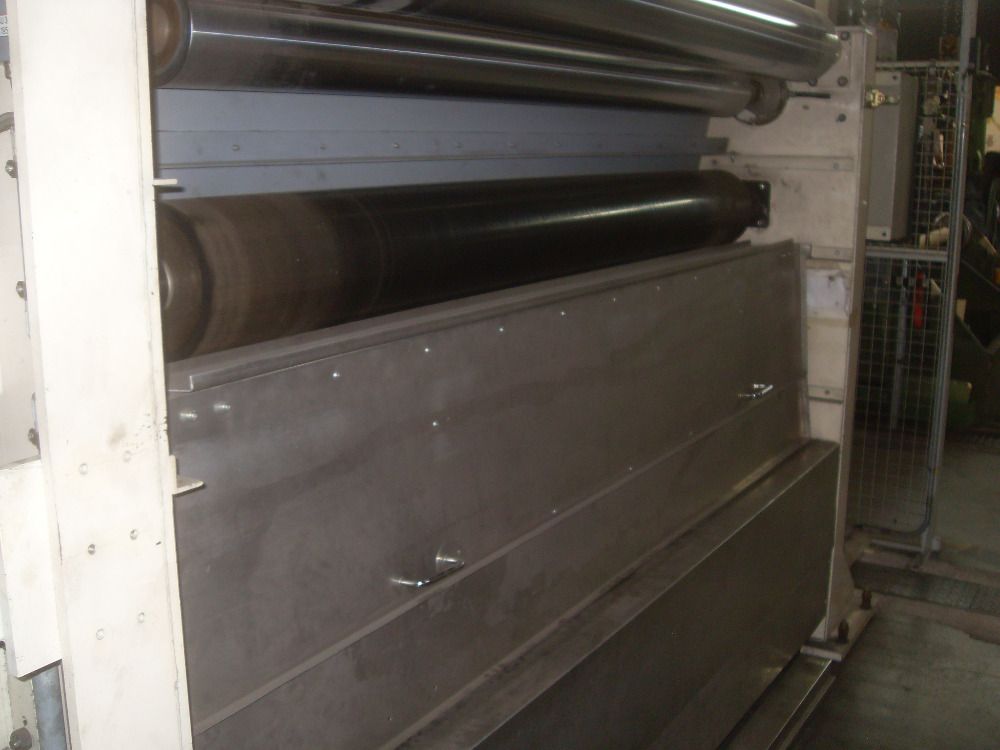

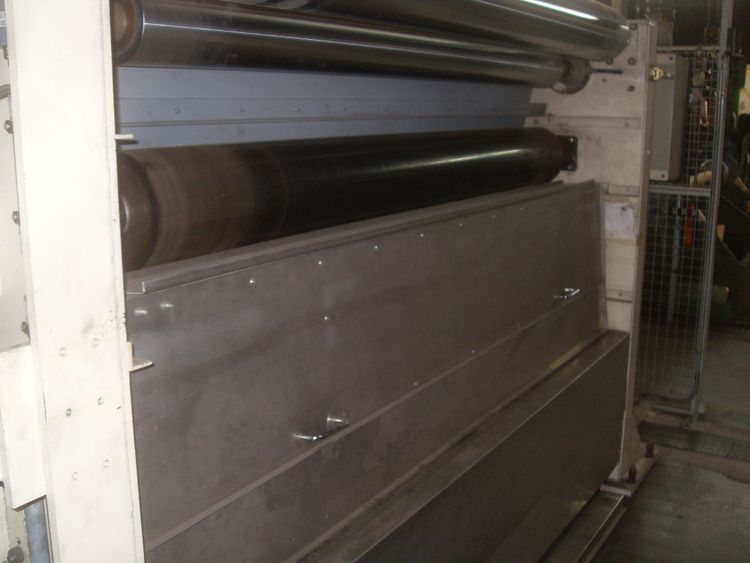

1.950 mm Rewinder for strong gsm/ 2mm thick grades

Ref : 2519125-2-CP

Condition : Used

Manufacturer : -

Width : 1.950 mm

Type : Rewinder for strong gsm/ 2mm thick grades

Year(s) : 2005

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Manufacturer GU: SWT

Eclectic concept: HSA Emerson

Rated current: 630 Amp

Drives: SEW AC motors

Gearbox: SEW bevel gearbox

Power rewind station 1: 30 KW

Power rewind station 2: 30 KW

Drive type: Frequency converter

Communication: Siemens S7 CPU 300

Production speed: 60m/min

web tension rewind station 1: 2000N

web tension rewind station 2: 2000N

Material thickness: 2,0mm

Roll diameter: 1500mm

Roll width: 1950mm
