10012 GAY RINSE

Power 380V sort + neutral

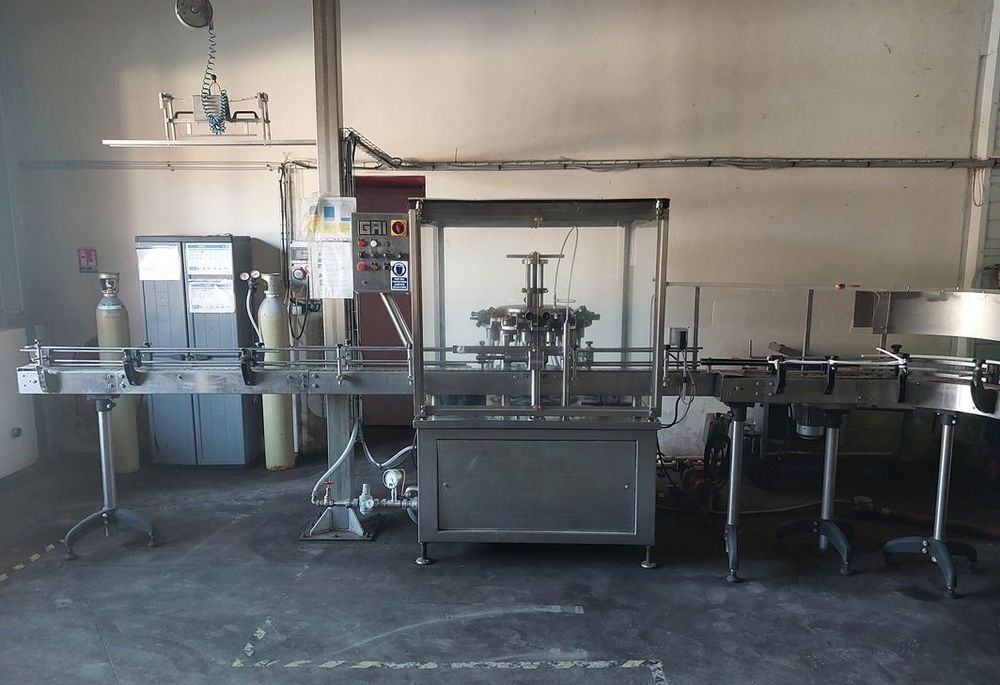

Automatic stainless steel monoblock with an electro-polishing finish level composed of:
1- TIRER PER GRAVITY 0 SLIGHT DEPRESSION A 14 BEAKS with constant levels for bottles with a maximum diameter of 115mm
Patented spouts closing the passage of the wine and the air return tube excluding any contact from the inside of the tank with the ambient air
Filling levels from 30 to 90mm ras le col
Supply of the central wine from the bottom allowing a natural and total emptying of the vat
Predisposition for the evacuation of washing and sterilization fluid.
The filling spouts have an open position for washing and sterilization.
The lift harnesses of the bottles are mechanical type with spring thrust and cam back.
Pneumatic solenoid valve power supply
2- CO2 GAS INJECTOR before clogging to significantly reduce the amount of oxygen between wine and cork
3- BUTCHER LIÈGE ras de col 4140P with drawer with steel cam
Slow tightening to 16mm by 4 jaws in hardened, ground and polished stainless steel
Production of the vacuum with a high vacuum pump in the neck of the bottle and quick introduction of the cap to avoid the drips. Quick and easy centering head and cone disassembly.
The entry of the bottles into the monoblock and the transfer between the rinser and the puller are synchronized with screws.
Protection against accidents at work in accordance with EC standards.
Equipped for a cylindrical bottle type.
One-piece rate: 600 to 2400 bottles/maximum time
Sense of work Left/Right

CHARGING TABLE MPF IMPIANTI BRAND
CONVEYOR Open Section L120xH140mm without gutter
STRING STAINLESS STEEL Thus 304 25/10 satin
MOTORIZATION Bonfiglioli direct on the traction shaft
LATERAL GUIDES Double polyetilene adjustable in width
Components Marbett / Movex / Habasit
CHAIN Acetal 82.5mm thickness 4mm
