1100 GS

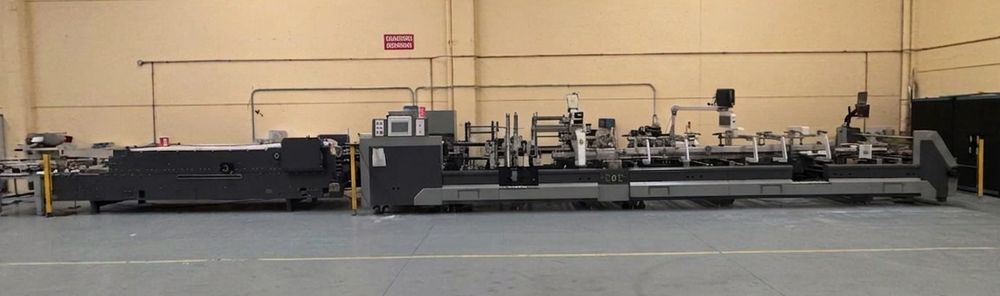

ROLLAM Folder Gluer
Max. blank width: 1100 mm
Max. belt speed: 400 m/min
Materials: flute types A, B, E
Flap-printed barcode inspection system, including image inspection, barcode,
and QR code verification, enabling contamination control and detection of skewed die-cuts
Plasma treatment unit with three guns
Double-sided tape applicator
Hot melt gluing system with 3 guns
450 output stacker

Technical specifications:
- Board capacity: up to 800 g/m2
- Corrugated board: flute types A, B, E
- Maximum speed: 400 m/min
- Slow speed: 10 m/min
- Maximum folded box thickness: 12 mm
- Material width: 1100 mm
- Power consumption: 31.2 kW
- Air pressure: 6 bar
- Compressor capacity: 10 m3/h
- Air tank volume: 60 L
- Dimensions (L × W × H, depending on configuration): 15,000 × 1,600 × 1,660 mm
- Net weight (depending on configuration): 7.6 T
