150~3000 CK0640 2

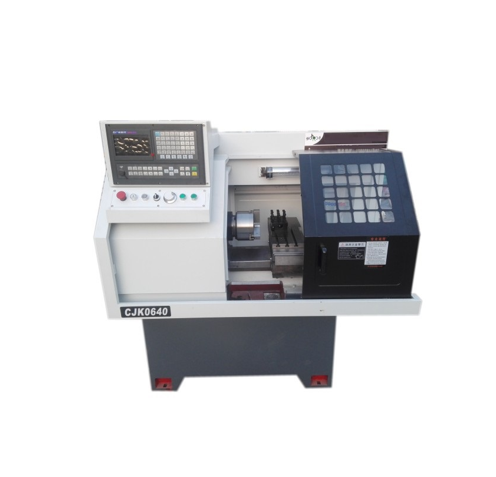

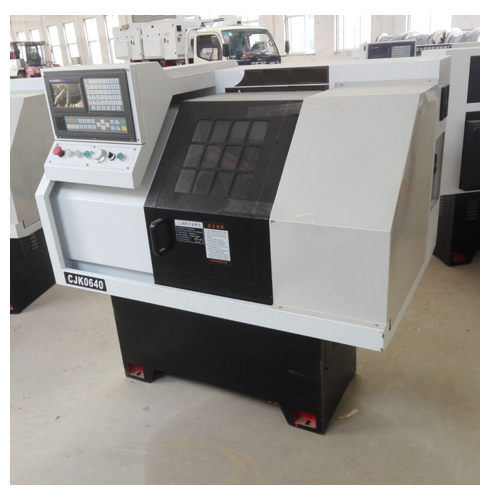

Main technical parameters CK0640
Turning diameter on the bed mm φ 180
Processing length mm 200 (chuck) 200 (collet)
Slewing diameter on carriage mm φ 100
Taper of the orifice at the front of the spindle 40°
Spindle diameter mm φ 40
Spindle speed rpm 150~3000 Frequency conversion
Main motor power/speed 4kw/1440rpm
X-axis rapid traverse speed m/min 8
Z-axis rapid traverse speed m/min 10
Z-axis motor Wide range feed servo motor
X-axis motor Wide range feed servo motor
X axis setting unit mm 0.001
Z axis setting unit mm 0.001
Tool holder form Four position electric tool rest
Cooling pump power/speed 90W/2860rpm
Overall dimensions of machine tool (length × wide × High) mm 1600*1150*1600

Configuration standard

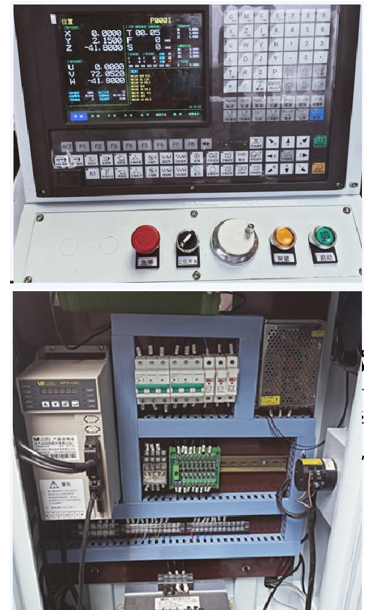

1. System GSK English
2. Tool rest cutter tools arrangement
3. Tail stock optional
4. System lubrication Yurun china
5. System cooling china
