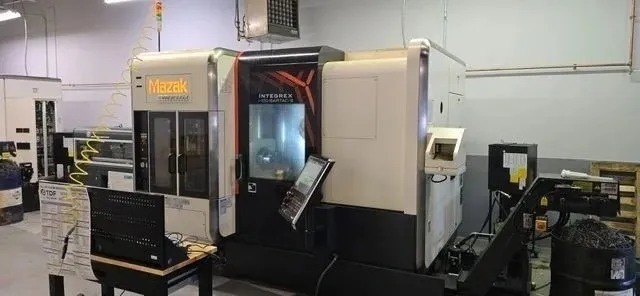

Mazak MAZATROL SMOOTHX CNC 2,000 RPM INTEGREX I-100 BARTAC-S 6 Axis

X-Axis Travel: 17.72"
Y-Axis Travel: 8.27"
Z-Axis Travel: 35.59"
W-Axis Travel (Sub Spindle): 35.59"
Rapid Traverse X: 1969 ipm
Rapid Traverse Z: 1969 ipm
Rapid Traverse Y: 1575 ipm
B-Axis Indexing: 240°
C-Axis Indexing: 0.0001°
Control: MAZATROL SMOOTHX CNC
LNS Quickload S3 Barfeed
213 PSI High Pressure Coolant
Parts Catcher
Chip Conveyor
Renishaw Probe
Bar Capacity (Main): 4"
Bar Capacity (Sub): 2"
Swing Over Bed: 20.87"
Turning Diameter: 19.67"
Turning Length: 33.62"
Main Spindle Speed: 2,000 RPM
Main Spindle Motor: 15 HP
Main Spindle Nose: A2-8
Main Spindle Bore: 4.4"
Sub Spindle: Yes
Sub Spindle Speed: 6,000 RPM
Sub Spindle Motor: 15 HP
Sub Spindle Nose: A2-5
Sub Spindle Bore: 2.4"
Milling Spindle Speed: 12,000 RPM
Milling Spindle Motor: 10 HP
Milling Spindle Taper: KM-63
Main Chuck: 8"
Sub Chuck: 6"
ATC Capacity: 72 Tools
Maximum Tool Diameter: 3.54" / 4.92"
Maximum Tool Length: 11.8"
Maximum Tool Weight: 22 lb
Machine Weight: 29,960 lb
