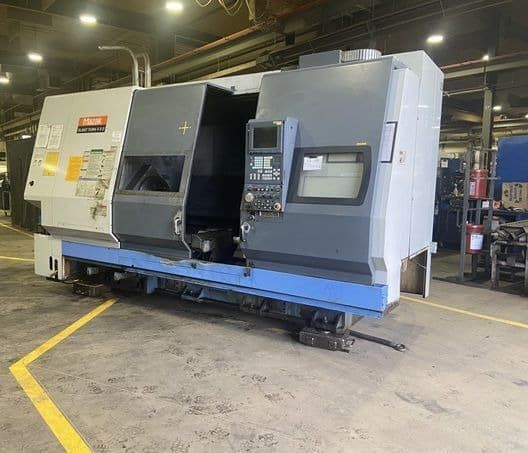

Mazak Mazatrol Fusion 640T CNC 1,500 RPM SLANT TURN 450 2 Axis

X-Axis Travel: 14.75" (375 mm)
Z-Axis Travel: 78.74" (2,000 mm)
Rapid Traverse X-Axis: 787 IPM
Rapid Traverse Z-Axis: 945 IPM
Control: Mazatrol Fusion 640T CNC
Bar Capacity: 10" (254 mm)
Swing Over Bed: 28.13" (715 mm)
Swing Over Carriage: 19.68" (500 mm)
Maximum Turning Diameter: 24.4" (620 mm)
Distance Between Centers: 78.74" (2,000 mm)
Workpiece Capacity: 10,000 lbs
Spindle Speed: 1,500 RPM
Spindle Motor: 40 HP
Spindle Nose: A1-15
12-Station Turret
Tailstock
Tailstock Quill Taper: MT5
Tailstock Quill Diameter: 5.12" (130 mm)
Tailstock Quill Stroke: 5.12" (130 mm)
Tailstock Body Travel: 54.2" (1,375 mm)
Chip Conveyor
Chip Pan
Machine Dimensions: 208" × 82" × 100"
Machine Weight: 21,780 lbs (9,900 kg)
