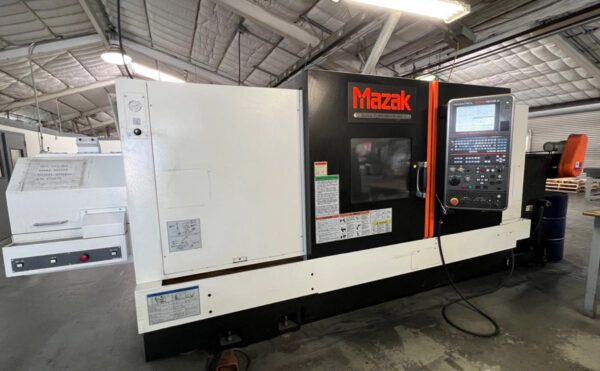

Mazak Mazatrol Matrix II Nexus 2000 rpm QUICK TURN NEXUS 450-II 2 Axis

Travel X: 12.2 in
Travel Z: 42.12 in
Control: Mazatrol Matrix II Nexus
Windows XP operating system
12.1 in color LCD
USB interface (2-port)
LAN port
MT Connect preparation
User macros
EIA/ISO input function
Background tool path check
Thread cutting function
Polar coordinates input (G122)
Velocity and feedrate control
Mazak Voice Adviser
Virtual Machining
Tool Eye
High-power coolant system
Work light
Intelligent safety shield
Re-threading function
Thread start point compensation
Bar capacity: 6.5 in
Maximum turning diameter: 22.83 in
Maximum turning length: 38.54 in
Spindle nose: A2-15
Spindle speed: 2000 rpm
Spindle motor power: 50 hp
Chuck size: 18 in 3-jaw hydraulic through-hole chuck
Turret: 12-position bidirectional
Drum turret: 12D/24 position
Programmable tailstock
Tailstock thrust select (9 levels)
Large spindle bore
Jorgensen side chip conveyor 1000U
Electrical requirements: 220 V / 3 phase / 60 Hz / 27 kVA
Machine dimensions: 159 x 90 in
Machine weight: 20420 lb
