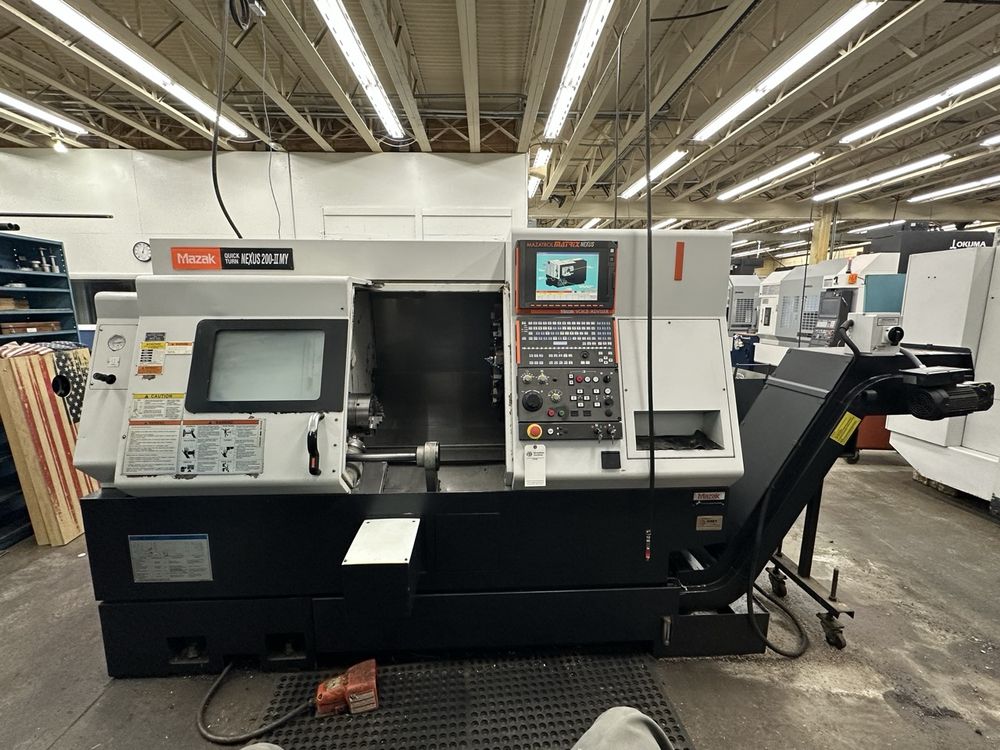

Mazak Mazatrol Matrix Nexus CNC control 5000 rpm QTN 200MY-II 3 Axis

X axis travel: 230 mm
Y axis travel: 100 mm
Z axis travel: 575 mm
Rapid traverse X axis: 30 m/min
Rapid traverse Y axis: 21 m/min
Rapid traverse Z axis: 33 m/min
Rapid traverse C axis: 555 rpm

C axis
Mazatrol Matrix Nexus CNC control
Live tooling
Programmable tailstock
Automatic tool presetter
Voice adviser
Side-exit chip conveyor
Manuals and technical documentation

Bar capacity: 65 mm
Maximum swing: 675 mm
Standard machining diameter: 276 mm

Chuck size: 8"
Spindle speed: 35 – 5000 rpm
Spindle nose: A2-6
Spindle bore: 76 mm
Spindle motor output: 26.0 kW
Maximum spindle torque: 47.4 kgf·m

Milling spindle speed: 25 – 4500 rpm
Milling motor output: 5.5 kW
Maximum milling spindle torque: 3.6 kgf·m

Royal Products CNC collet chuck
SMW Autoblok NCSE 210-52 quick-jaw-change 3-jaw power chuck
Tailstock center bore: MT5
Tailstock travel: 550 mm
Maximum thrust: 700 kgf
Indexing time: 0.2 / 0.6 sec

Distance between spindle end and turret end face: 135 – 710 mm
Weight: 12,500 lbs.
