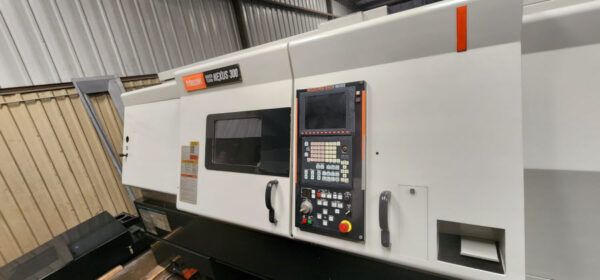

Mazak Mazatrol Fusion 640T 4,000 RPM QT NEXUS 300 2 Axis

X-Axis Travel: 8.85"
Z-Axis Travel: 49"
Rapid Traverse X-Axis: 1,181 IPM
Rapid Traverse Z-Axis: 984 IPM
Control: Mazatrol Fusion 640T
Auto Tool Eye
Tailstock
Chip Conveyor
Bar Capacity: 3"
Maximum Swing: 26.77"
Standard Machining Diameter: 10.39"
Maximum Machining Diameter: 16.53"
Spindle Motor: 35/30 HP
Spindle Bore: 3.46"
Spindle Torque: 422 ft/lbs
Spindle Speed: 4,000 RPM
Spindle Nose: A2-8
Turret Type: Drum Turret
Number of Tools: 12
Tool Shank Height: 1"
Boring Bar Shank Diameter: 1.5"
Turret Index Time: 0.2 sec
Tailstock Center: MT No. 5
Machine Height: 78.73"
Floor Space: 137.8" x 80"
Weight: 16,535 lbs
