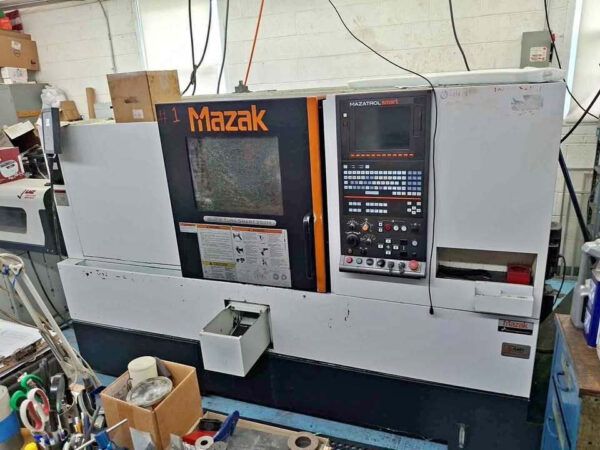

Mazak Smart CNC 5,000 RPM SMART 200M 2 Axis

X-axis travel: 8.875"
Z-axis travel: 23.75"
Rapid traverse X/Z/C: 1181 / 1299 / 555
Control: Smart CNC
Live tooling
Tool probe presetter
Coolant system
Chip auger
Part catcher
LNS Quick Load Servo 80/S2 bar feeder
LNS bar feed
Bar capacity: 2.56"
Maximum swing: 26"
Swing over cross slide: 13.5"
Maximum machining diameter: 14.25"
Maximum machining length: 21.035"
Spindle speed: 5,000 RPM
Spindle motor: 25 HP
Spindle nose: A2-6
Spindle bore: 2.99"
Rotary tool spindle speed: 4,500 RPM
Rotary tool spindle motor: 7.5 HP
Milling capacity: 3/4"
Tapping: M20 × 2.5
Chuck size: 8"
Collet chuck
8" jaw chuck
12-station bolt-on turret
Tool shank size: 1"
Boring bar shank diameter: 1.5"
Turret indexing time: 0.23 sec
Tailstock
Tailstock stroke: 22.125"
Power requirement: 28.7 kVA
Coolant tank capacity: 71.3 gallons
Machine dimensions: 103" × 66" × 71"
Machine weight: 12,125 lbs
