2 Pellet Presses (2 x 15 kW) - Twin Auger Hopper (1.5 m3)

2 Pellet Presses (2 x 15 kW) – Twin Auger Hopper (1.5 m³)
Multiple Opportunities:
- Near-new condition (2024 - lightly used)

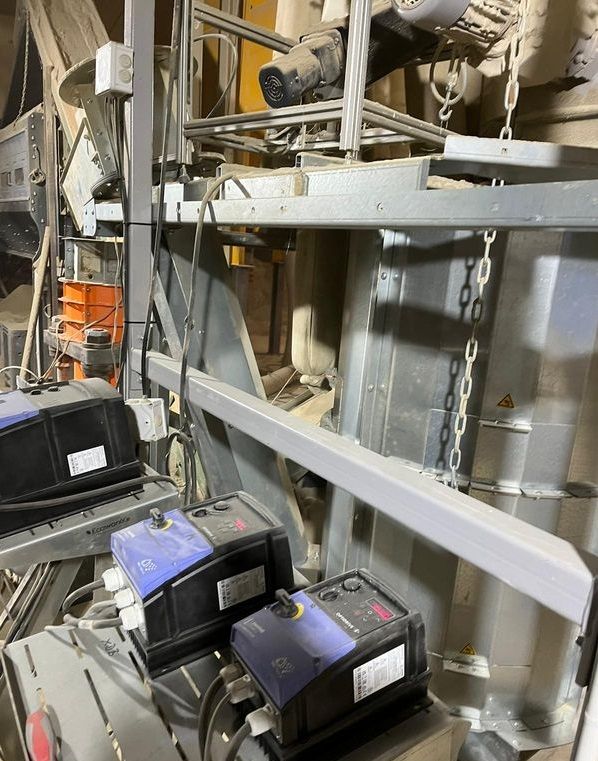

- System connected by 5 frequency inverters (signals)
- Immediately operational
- German-made / spare parts available
- Expert support / Delivery, assembly & commissioning available
- Straw/alfalfa yield: 180 kg per press, softwood yield: 150-200 kg per press (depending on moisture content and material quality)
- Automation: The unit is designed for fully automatic operation via frequency inverters
- Electrical components can be supplied upon request and quote
- Total electrical power: +/- 30-40 kW (total motors)
- Area required: +/- 50-100 m2, min height. 4m, unit can be adapted to a compact space, site survey available upon request.

TECHNICAL SPECIFICATIONS

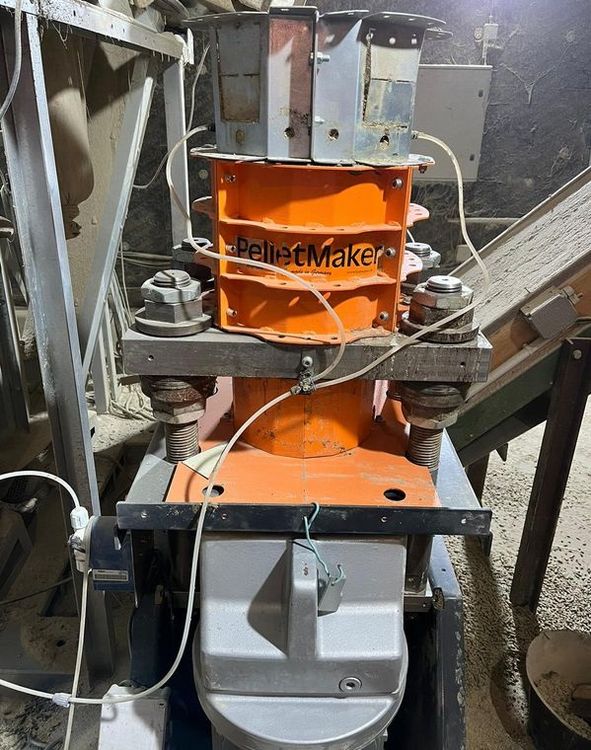

2 Pellet Presses (2 x 15 kW)
Pellet Diameter: 3 to 30 mm
Main Motor Specifications: 1,823 Nm at 15 kW, optional integrated variable frequency drive
Set of 2 or 4 rollers for uniform granulation and controlled operation
Adjustable pellet length
Simplified adjustment system and tooling
Electronically adjustable liquid pump with adjustable injection points
Optional:

- 0.75 kW auger with control for coordinated material feeding
- Mixer and magnet
- Screening and foreign body collection
- Electronic and mechanical connections for upstream/downstream material flow (belts, augers, etc.)
- Dust removal by vibration at the outlet

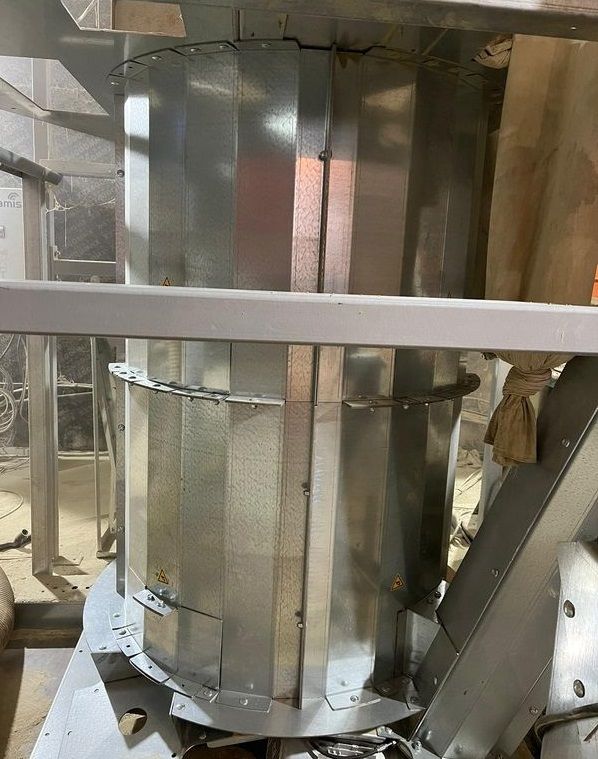

Automatic 1.5 m³ twin-auger hopper
Hop Material feeding and dosing unit, designed for universal feeding and extraction of biomass materials, such as wood chips, pellets, and other similar materials.
Basic Principle / Chassis:
Symmetrical, four-sided sheet metal hopper
Stable steel profiles
- Optional: on 4 adjustable feet or braked casters

Integrated, vertical mixing arm
Enables continuous material movement
Prevents bridging in the hopper
Ensures material transfer
- Directly via integrated augers
- Or to external conveyor belts
Equipped with a speed regulator
Configurable for on/off operation:
- Material detection or upstream/downstream machine operation
- To prevent overloading

Material Feeding:
Equipped with an upper receiving bench for positioning:
- Airlock and auger
- Cyclone
- Conveyor belt
Electronic control for incoming material
- Via authorization signals Integrated mixing arm
- Option for a capacitive level sensor in addition to the control

Material extraction:
Optional
Up to 4 integrated augers
- Mechanically adjustable access length depending on the material
- Each integrated auger motor is equipped with:
a speed regulator
a contactor triggered by the downstream machine
4 mechanical extraction hatches positioned on the conveyor belts
It is possible to combine the number and position of the

MISCELLANEOUS:
- Optional at our Alsatian site: 2 silos of 60m³, 120m³ total, with variable speed drive and bucket elevator for distribution between the 2 silos

TO COMPLETE THE LINE:
- Refiner
- Dryer/Boiler
- Pellet screener
- Cooler
- Bag filling station (automatic/manual) or big bag, which we can supply
