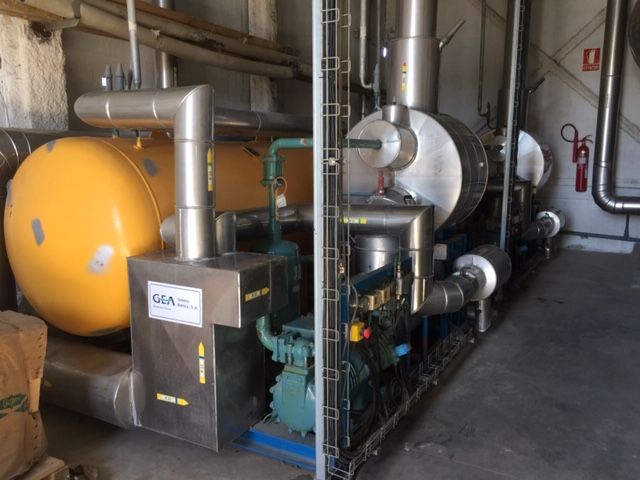

2 Bitzer 6F-40.2Y FREEZING INSTALLATION

Cooling capacity: 51 kW / 15 tons
Absorbed power: 19 kW
Refrigerant: R23 / R717
Voltage: 400 V

Compressor type: Bitzer 6F-40.2Y
Capacity control: 33% / 67% / 100%
Oil separator: Included
Safety devices: Manometer set included

Cascade condenser capacity: 105 kW (R23 / Ammonia R717)
Cascade condenser temperature: -33°C / -40°C
Heat exchanger material: AISI-316 stainless steel
Cascade condenser surface: 283 m2

Expansion tank volume: 1,795 L
Expansion tank refrigerant: R23
Expansion tank temperature range: -10°C to +50°C

Control system: Custom switch-board

Application: Very low temperature freezing / storage system (-60°C to -65°C)
System type: Cascade refrigeration system
Additional note: Must be connected to ammonia installation (-30°C to -40°C side)
