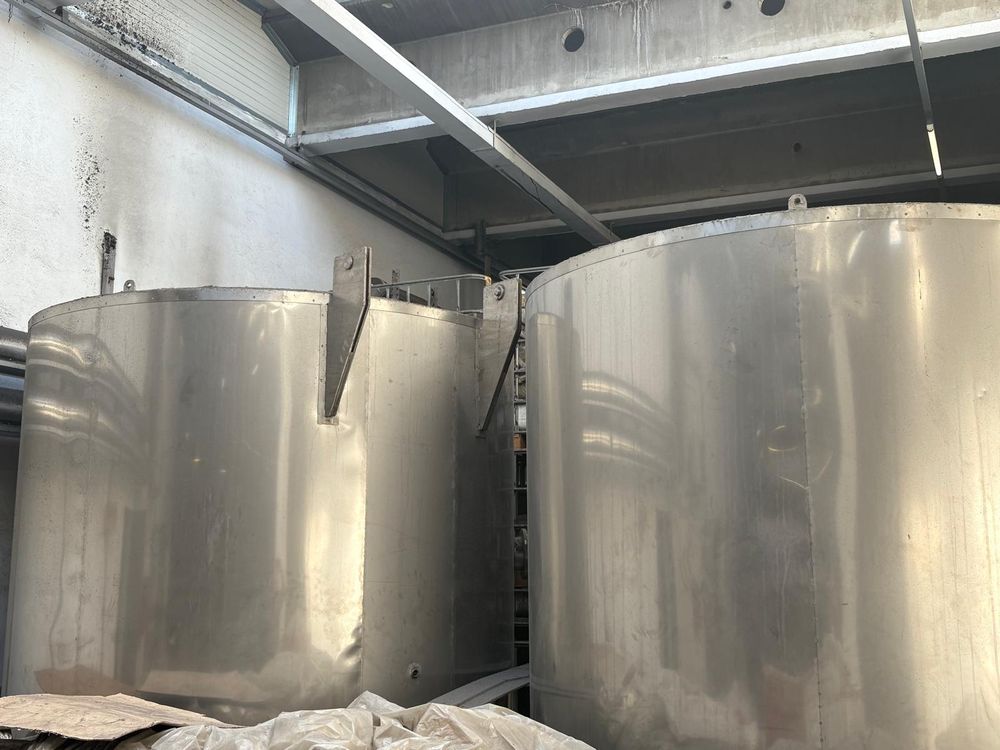

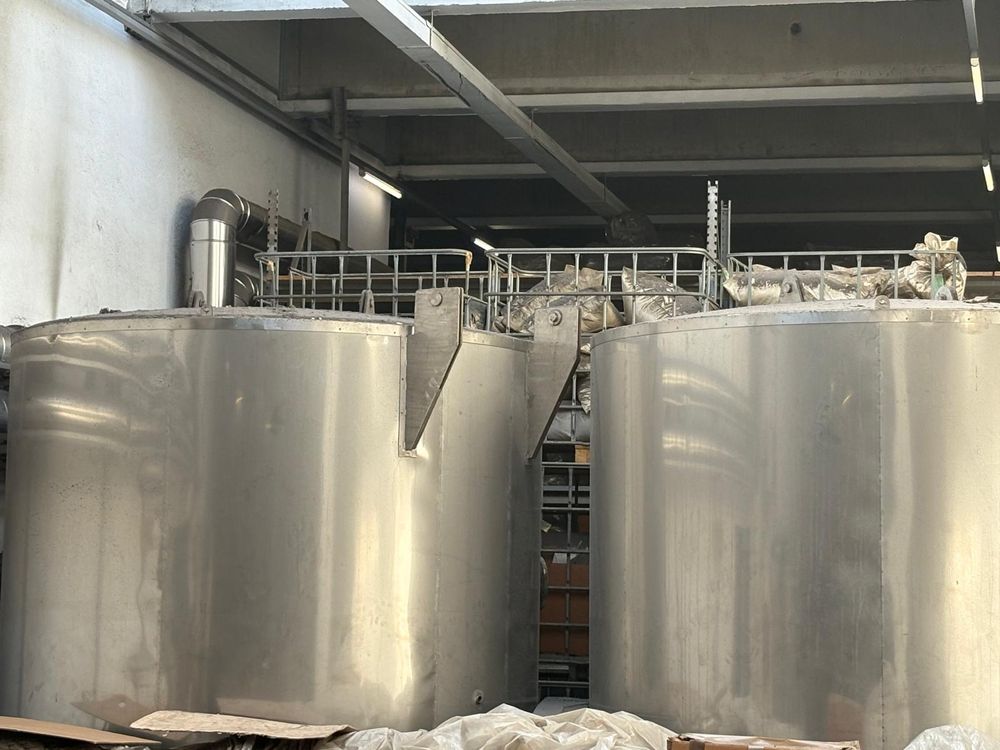

2 Dyeing Tanks (for Flock)

Dyeing tanks with heat recovery, made entirely of AISI 316L stainless steel, insulated and coated, with a flower-embossed surface finish.
- Internal diameter 2,400 mm
- External diameter 2,500 mm
- Height 2,400 mm
- Capacity 10,000 L

Features: 2.5 mm thick shell and base plate with ground and brushed internal welds, 50 mm thick pressed cork insulation, 0.8 mm thick sheet metal exterior cladding.
Top cover made of 2 mm thick sheet metal with hinged arm system for full opening. 100 x 6 mm flat base with adjustable feet.

Accessories:
Double-spiral internal coil made of 26.9mm SS pipe, 2.33mm thick, AISI 316 stainless steel,

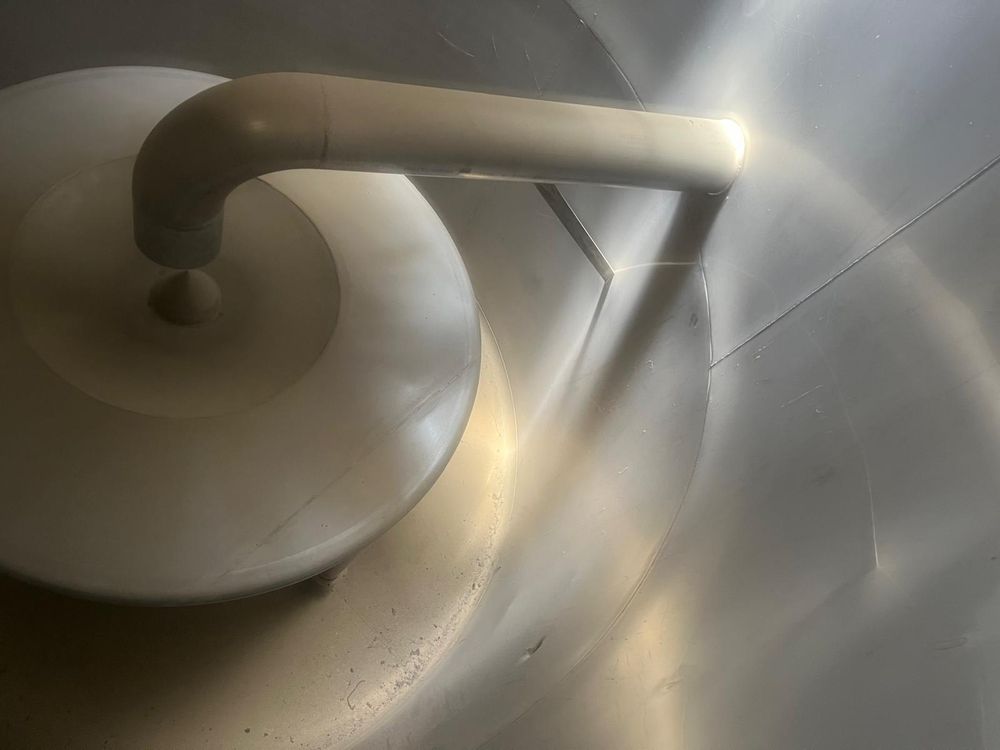

1.500mm diameter internal diffuser base made of 2.5mm thick sheet metal,
168.3mm inlet pipe and outlet connection with DN 100PN 6 external flanges, 200mm vent on cover.
Approximate weight: 1,250kg
