2 FS41N

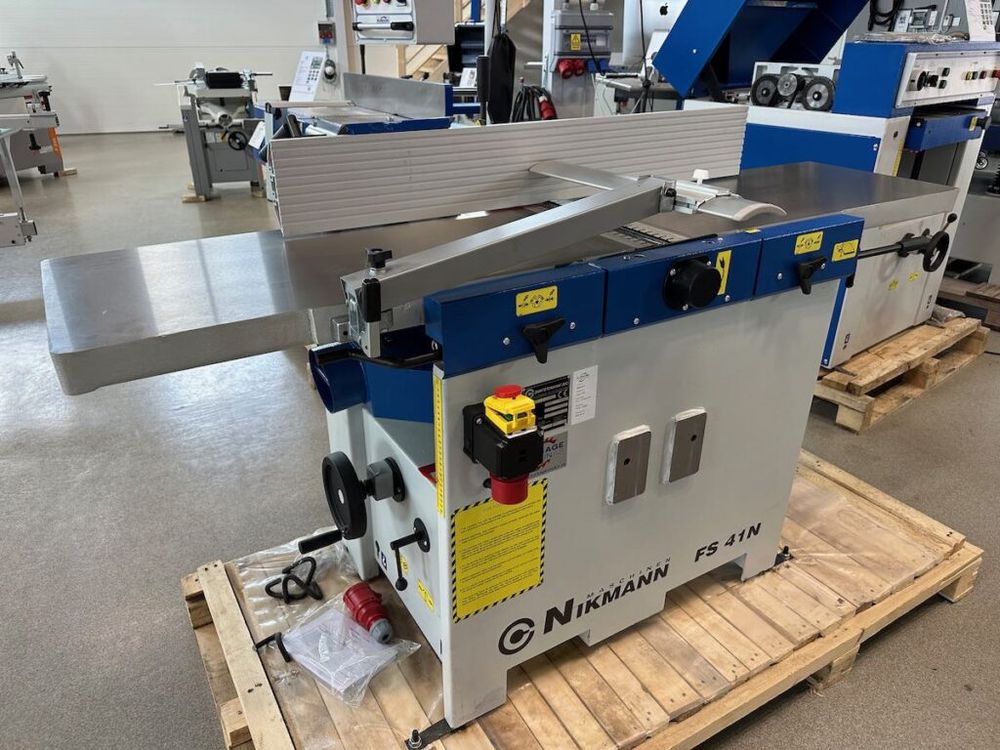

Nikmann FS41N
Stable combined straight & planer with cast tables and straight stop in aluminum.
4-steel cutter with reversible blade type Barke (standard equipment)

Other equipment included:
Feed motor with gearbox
Barke reversible cutting system
Profi fence
Motor 4 kw (5.5 HP)
Mechanical digital counter Support
rollers in the planing table
Manual

Technical data:
Straightening table dimension 1800x410mm
Max planing width 4120mm
Max cutting depth 5mm
Cutter with 4 steels (indexable)
Cutter diameter 100mm
Cutter speed 4500rpm Straightening
fence 1100x115mm
Planing table 700x406mm
Max planing width 410mm
Max cutting depth 4mm
Feed speed 6 and 12 m/min (gearbox)
Workpiece thickness min-max 4-230mm
Motor 3 kw, 4 Hp
Weight 450kg
