2 Kodak Magnus 800 (Quantum SquareSpot)

MAGNUS Q 800 PLATESETTER
-Machine Configuration: MCU Autoloader with 4 cassettes and automatic paper removal
-Imaging Head: KODAK SquareSpot / Quantum THERMAL Imaging Head/ GMCE
-Laser head model TH2 installed in 2012
-Throughput (configured): ~45 plates/hour- X speed
-In last Kodak service ( Nov. 2024 ) the head ran 25,361 hours; today, we're at approximately 27,172 hours
-Plate Format: Support for B1 formats / minimum format 318 x 305 mm - maximum format 950 x 1163 mm
-Plate Handling / Automation: MCU Multi-cassette unit (autoloader) — 4 cassettes; reloading during use,
automatic cassette selection per job. Typical cassette capacity: up to ~100–110 plates per cassette (variable by thickness).
-Resolution and screening: Supports common resolutions of 2400 dpi; compatible with Kodak advanced screening (e.g., Staccato).
-Integrated punch (optional): for Backer and Komori
-Software/workflow integration: RIP Kodak Printconsole, Kodak Prinergy Workflow server,
computer and monitor included - receives 1-bit TIFFs from any device, even non-Kodak devices.

MAGNUS Q 800 PLATESETTER
-(November 2007 -> TOTALLY refurbished by Kodak in 2015)
-Machine Configuration: MCU Autoloader with 5 trays and automatic paper removal
-Imaging Head: KODAK SquareSpot / Quantum THERMAL imaging head / GMCE
-Laser head model TH 2 installed in 2015
-Throughput (configured): ~45 plates/hour- X speed
-Plate Format: Supports B1 formats / minimum size 318 x 305 mm - maximum size 950 x 1163 mm
-Plate Handling / Automation: Multi-cassette unit (autoloader) — 5 cassettes; refillable during use,
automatic cassette selection per job. Typical cassette capacity: up to ~100–110 plates per tray (variable by thickness).
-In last Kodak service ( Nov. 2024 ) the head had run 11,212 hours; today, we're at approximately 12,613 hours
-Resolution and screening: Supports common resolutions of 2400 dpi; compatible with Kodak advanced screening (e.g., Staccato).
-Integrated punch (optional): for Backer and Komori
-Software/workflow integration: RIP Kodak Printconsole, Kodak Prinergy Workflow server,
computer and monitors included- receives 1-bit TIFF from any device, even non-Kodak.

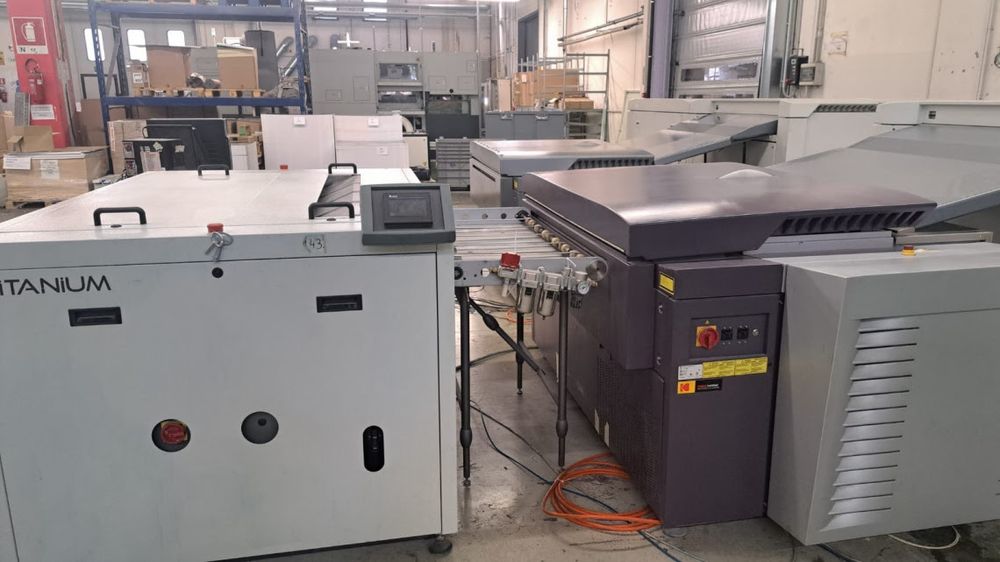

On line now with :

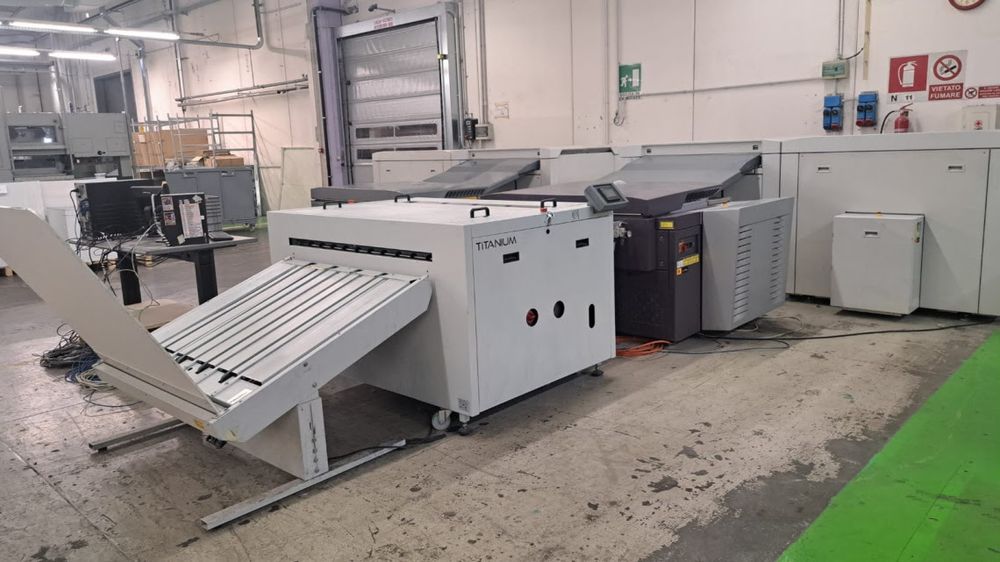

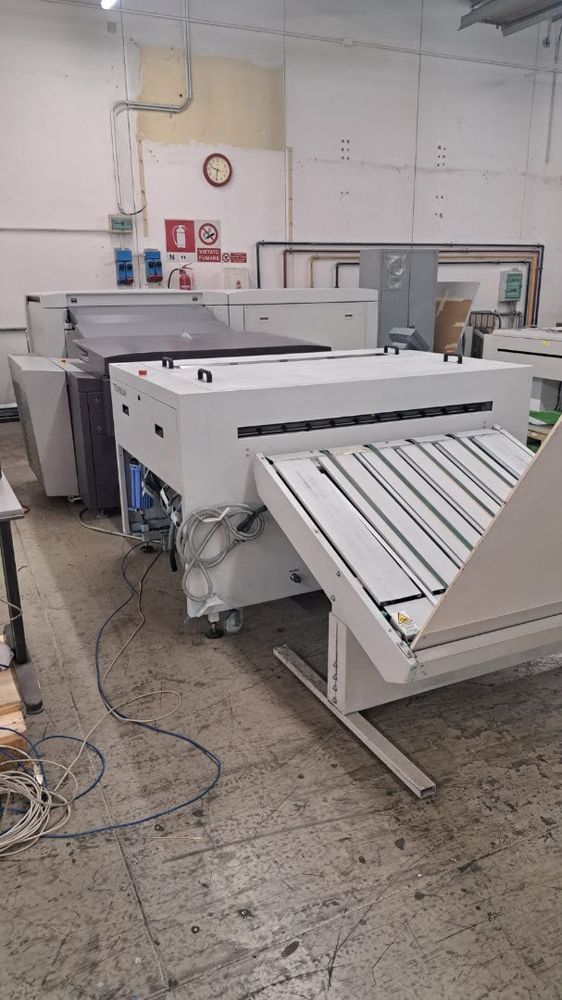

TITANIUM 125 PLATE PROCESSOR
-Processor for thermal or conventional offset/CTP plates.
-Can be configured as an "online" or "offline" system, with an interface for platesetters or input/output tables.
-PLC control with touch-screen panel, and access to tanks/maintenance via side panels and a removable top cover.
-Plate width: 240 to 1250 mm -Minimum plate length: 325 mm -Plate thickness: 0.20–0.40 mm
-Development speed: 50–240 cm/min
-Developer tank capacity: ~64 liters
-Accessories: 2 brushes in the developer tank
-Delivery Stacker
