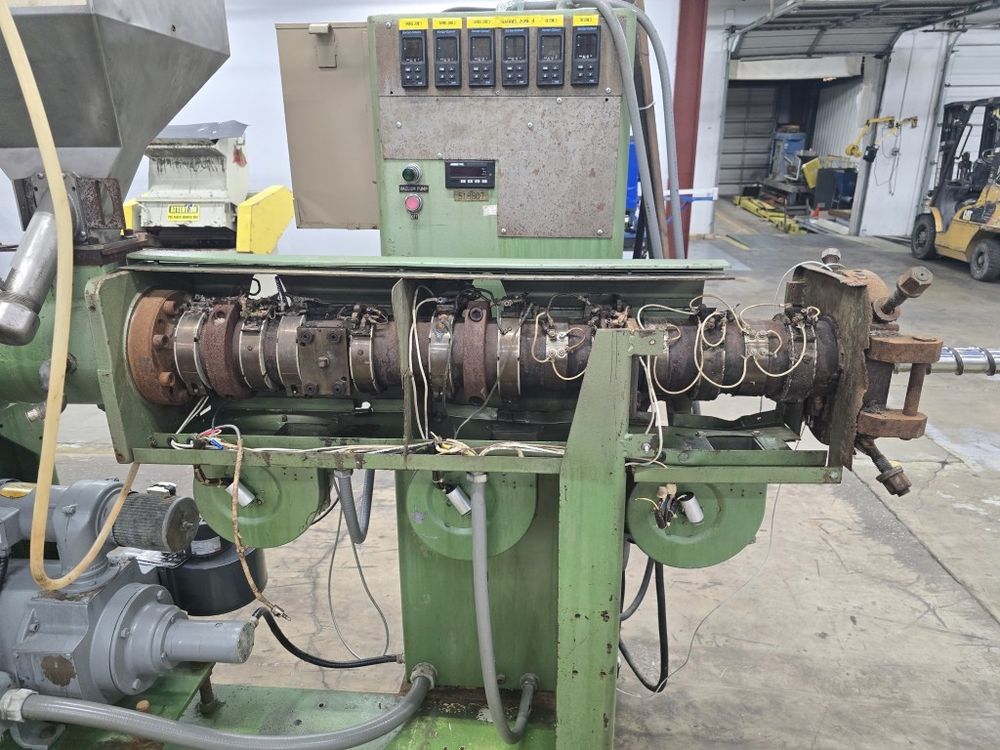

2” Rheotec Extruder

2” Rheotec Extruder, 24:1 L/D Ratio, 20 HP DC Motor
4 Barrel Zones, Air Cooled, 2 Die Zones
20 HP Powertron DC Motor, Model: 2590B452B04, 500 ARM Volts, 35A
150/300 Field Volts, 2.48A/1.24A
1750 RPM
Frame 259AT
Cutler-Hammer Respondor DC Drive, No. GA210TC55-A
Supply: 208-460/3/60, 50A Max AC
Control: 115/1/60, 3A Max
Load: 600V Max, 55A Max
Shunt Field: 150-300V Max, 10A Max
(Field Supply Connected as 3 Phase, Half-Wave Bridge)
(6) Barber Coleman 7EM Temp Controllers, Dynisco 1290
Pressure Transducer Gauge, Simpson Electric Digital RPM Gauge,
Amp Meter
Approximate Dimensions: 102" L x 46" W x 82" H
On Stand With Casters
