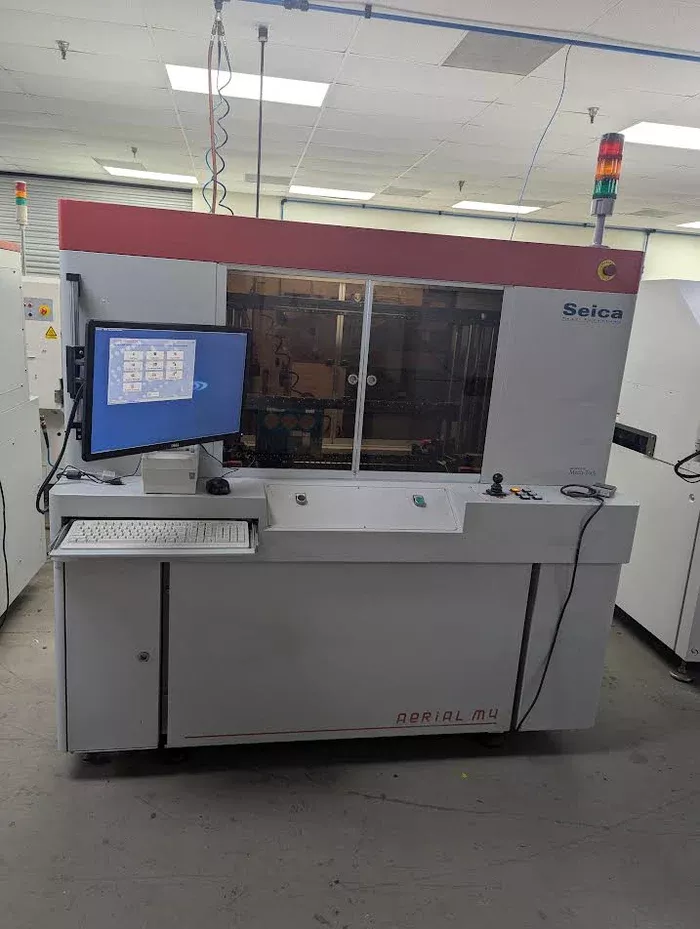

2 Seica Aerial M4 Flying Probe

These machines can be purchased individually or as a package.
Well kept, and under OEM service contract until removed from production.
SW: Seica VIVA (2.3.2. Seica Viva software)
Price is for each unit.
Both tested and passed checkpoint calibration October 2025.
Each is configured with:
4 Independent Flying Probes for independent X, Y and Z movements
(2 on Front and 2 on Rear side)
2 CCD Camera at Probe for Optical Alignment and Vision Tests
(1 on Front and 1 on Rear side)
Manual - vertical board loading
Per OEM Data Sheet: SYSTEM CAPABILITIES
• Open, expandable architecture (IEEE-488, VXI, Boundary Scan)
• Roller bearings on X axes
• Air Bearings on Y axes
• Stepper Motors with integrated Encoders for X and Y Movements
• Stepper Motors with encoders for Z-Movements
• Positioning Resolution: 3µm (0.12mils) X-Axis, 3µm (0.12mils) Y-Axis
• Positioning Repeatability: ± 3µm (0.12mils)

TEST AREA & U.U.T. CHARACTERISTICS
• Test Area: 420 x 610mm (16.5 x 24")
• Probes angle: 12°
• Maximum testable board size: 420 x 610mm (16.5 x 24")
• Minimum board width: 20mm (0.78 x 0.78")
• Maximum PCB Thickness: 5mm (0.20”)
• Edge Clearance: 2mm Min. (0.11”)
• Probe Clearance: 42mm (1.65”) front side (including UUT thickness)
• Probe Clearance: 42mm (1.65”) rear side
• Minimum Pad size: 100µm (4 mils)
• Minimum Pad Pitch 300µm (12 mils)
• Board alignment: Automatic optical alignment

Facilities:
AIR SUPPLY
• Compressed Air Supply: 5Atm (73.5 PSI)
• Air Flow: 200l/min
• Air Compressor Capacity: 300l/min

POWER: 110V2500VA/60HZ
DIMENSIONS AND WEIGHT
• System Dimensions: 1675mm L x 739mm W x 1652mm H (65.9” L x 29” W x 65” H)
• Weight: 600kg (1323lbs)
