20.000 Tons/year SMS Spunbond / Meltblown line for Non Woven
EUROPE (Western and Northern)

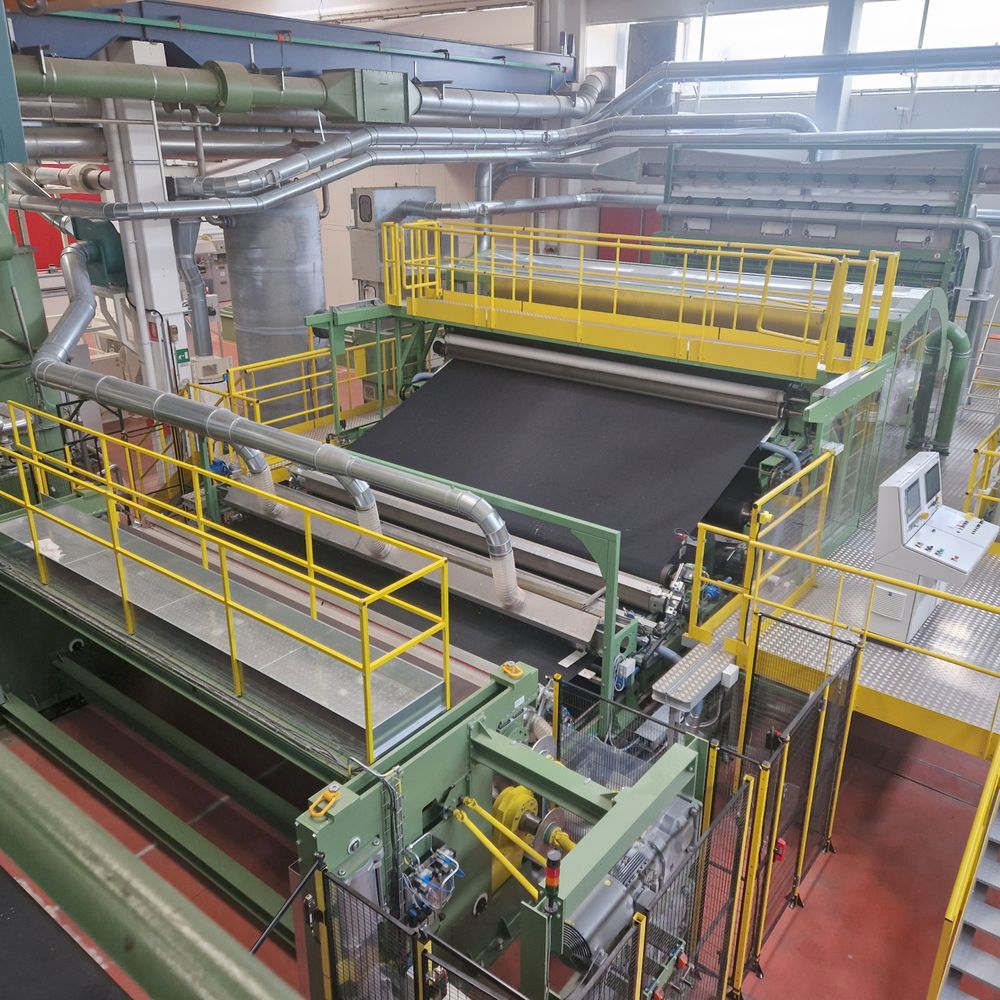

SMS Spunbond / Meltblown Line to produce non-woven for diapers and medical masks
Storage system for polymer granules

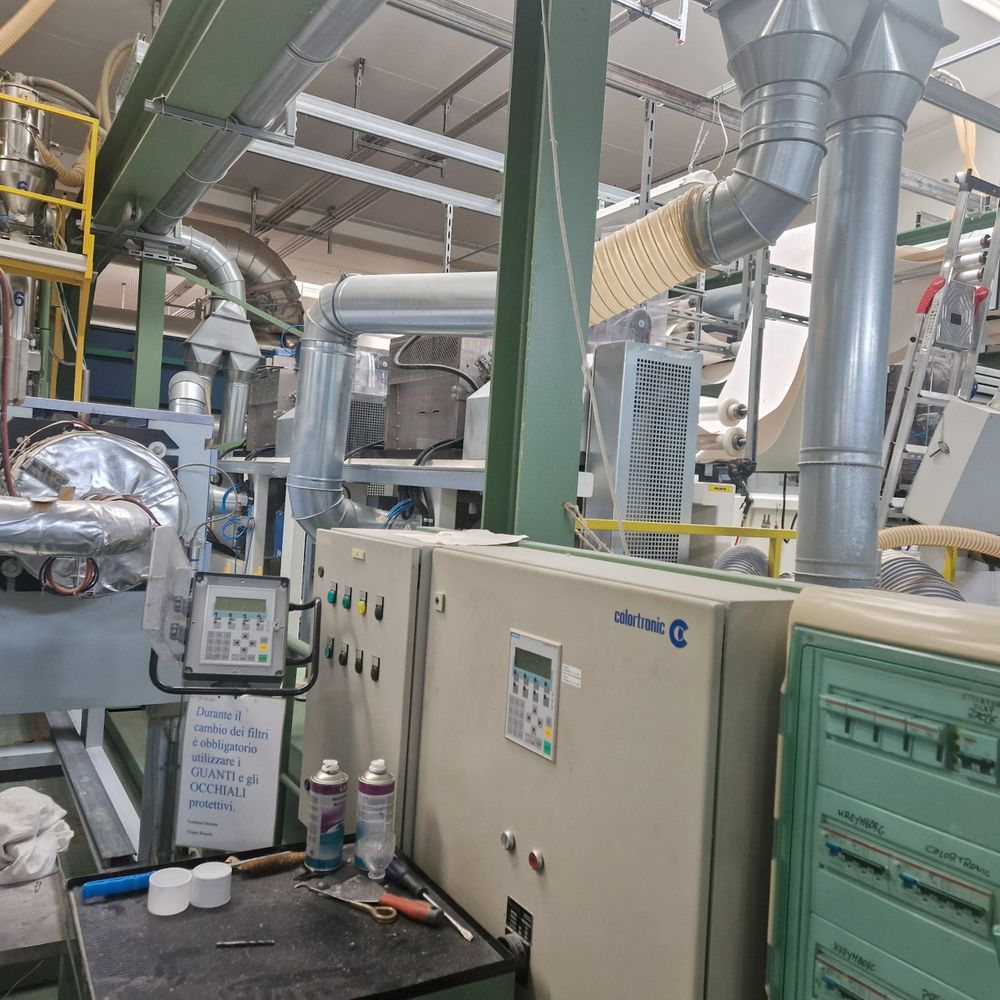

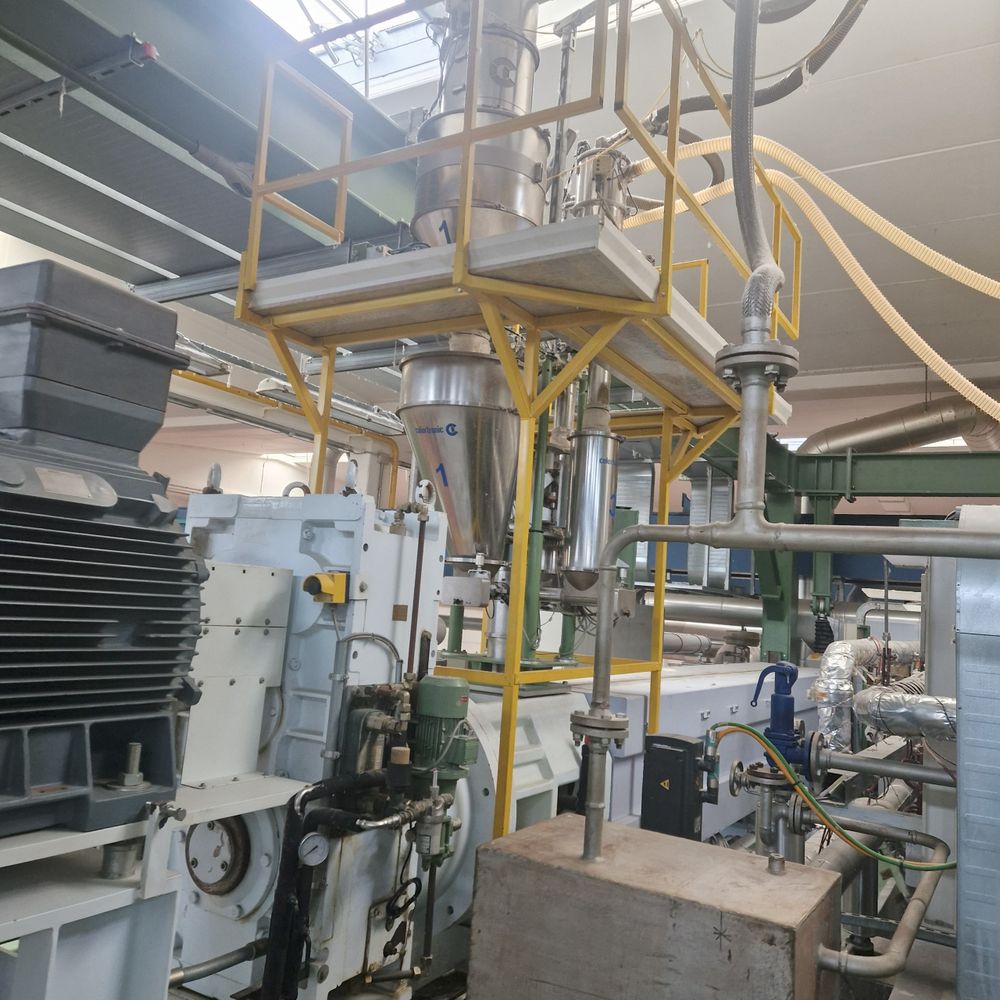

Granule feeding system to extrusion lines
Additive dosing system

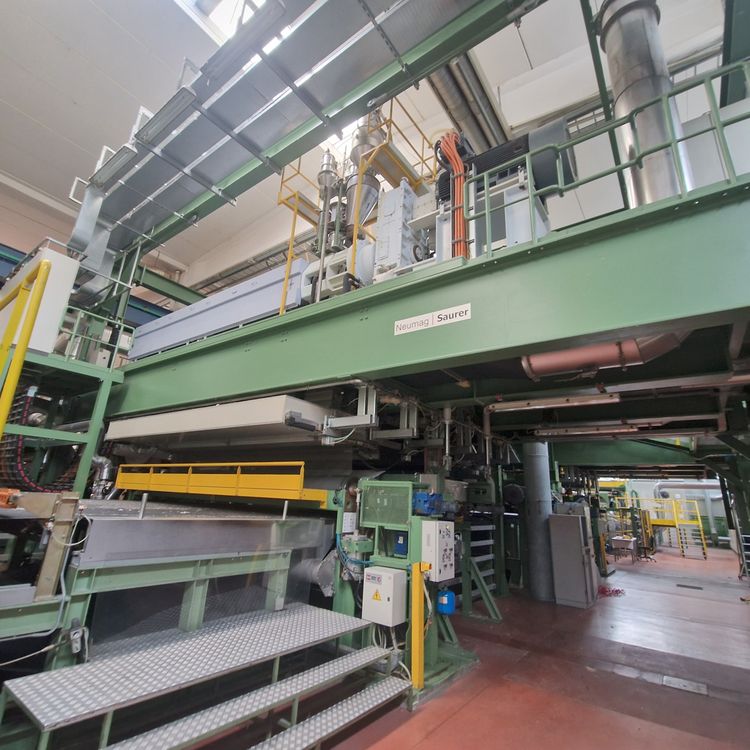

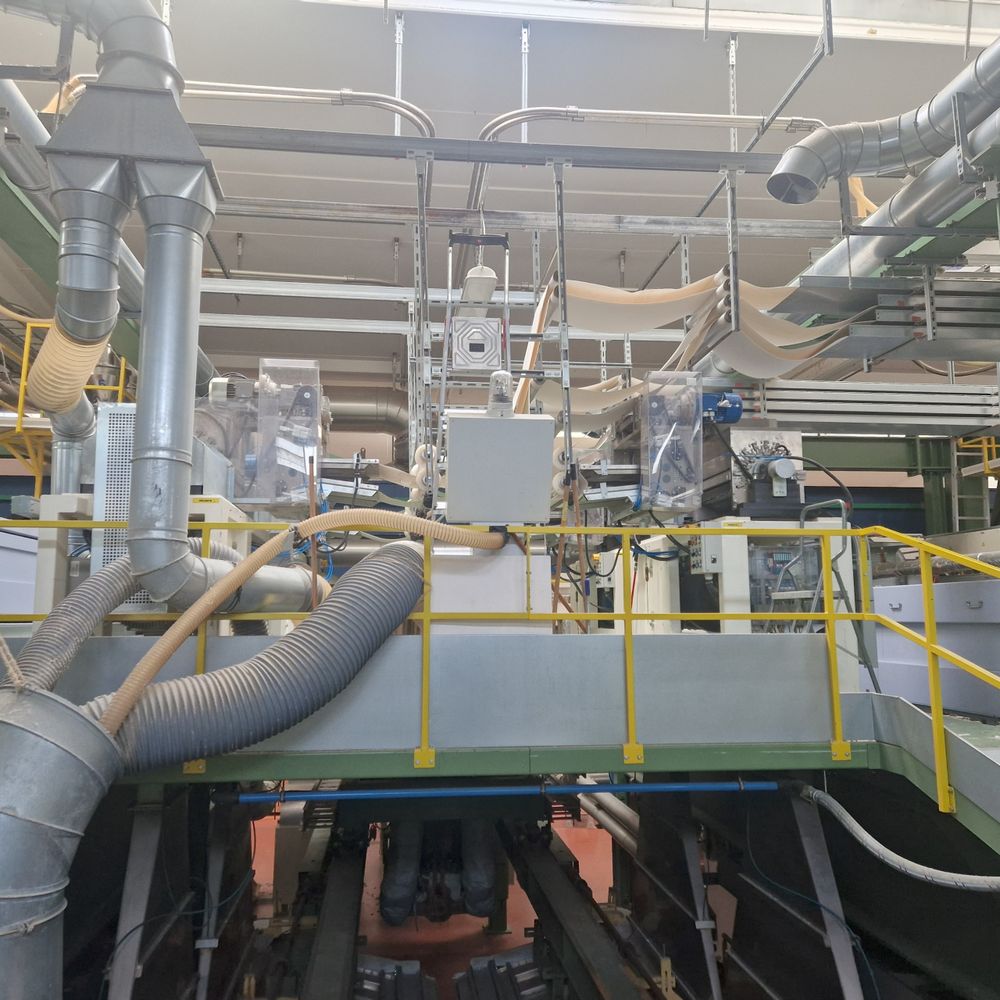

Spunbond extrusion system (excluding spinnerets) [2 beams] — Neumag
• 1 extruder, screw diameter 150 mm
• 1 extruder, screw diameter 100 mm
• 1 co-extrusion beam
• 1 drawing slot
• 1 service platform for extruders with movable deck
Spun spinneret
Spun spinneret — trilobal hole design
4 x standard spun spinnerets

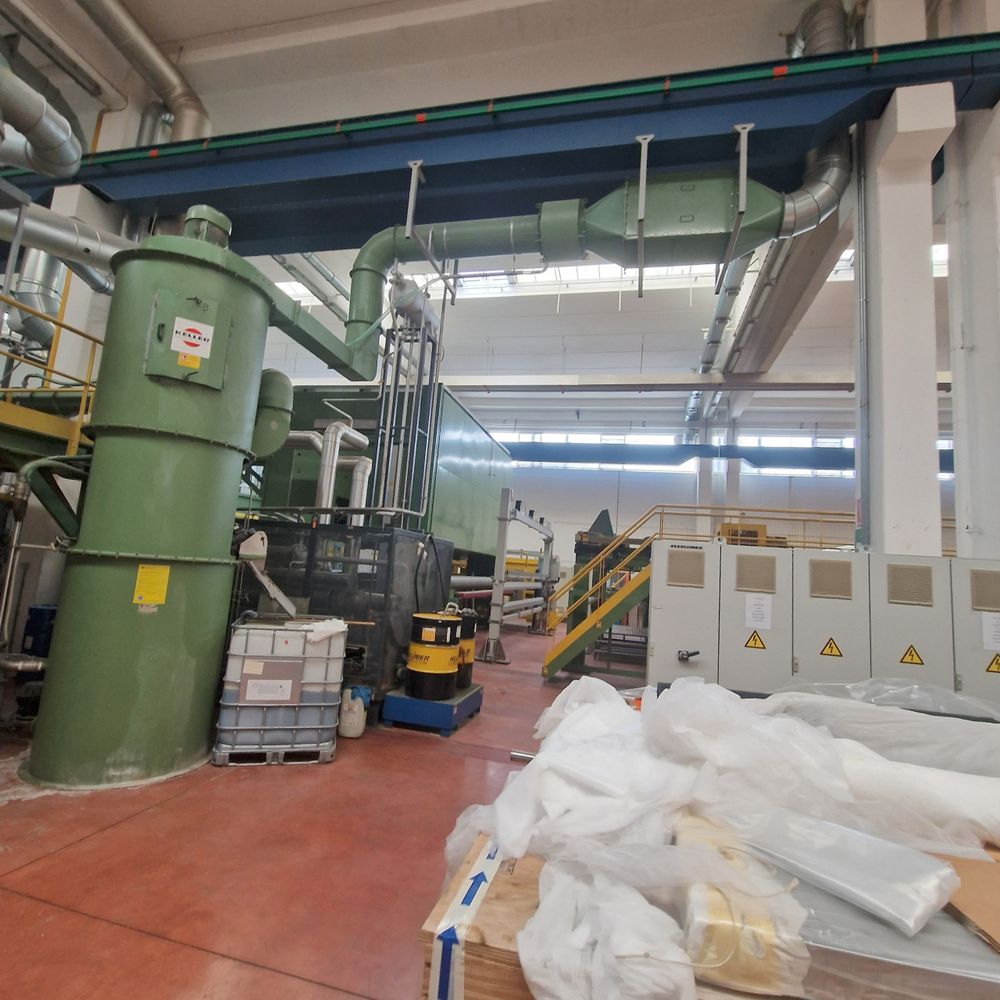

2 x scrubbers for monomer abatement

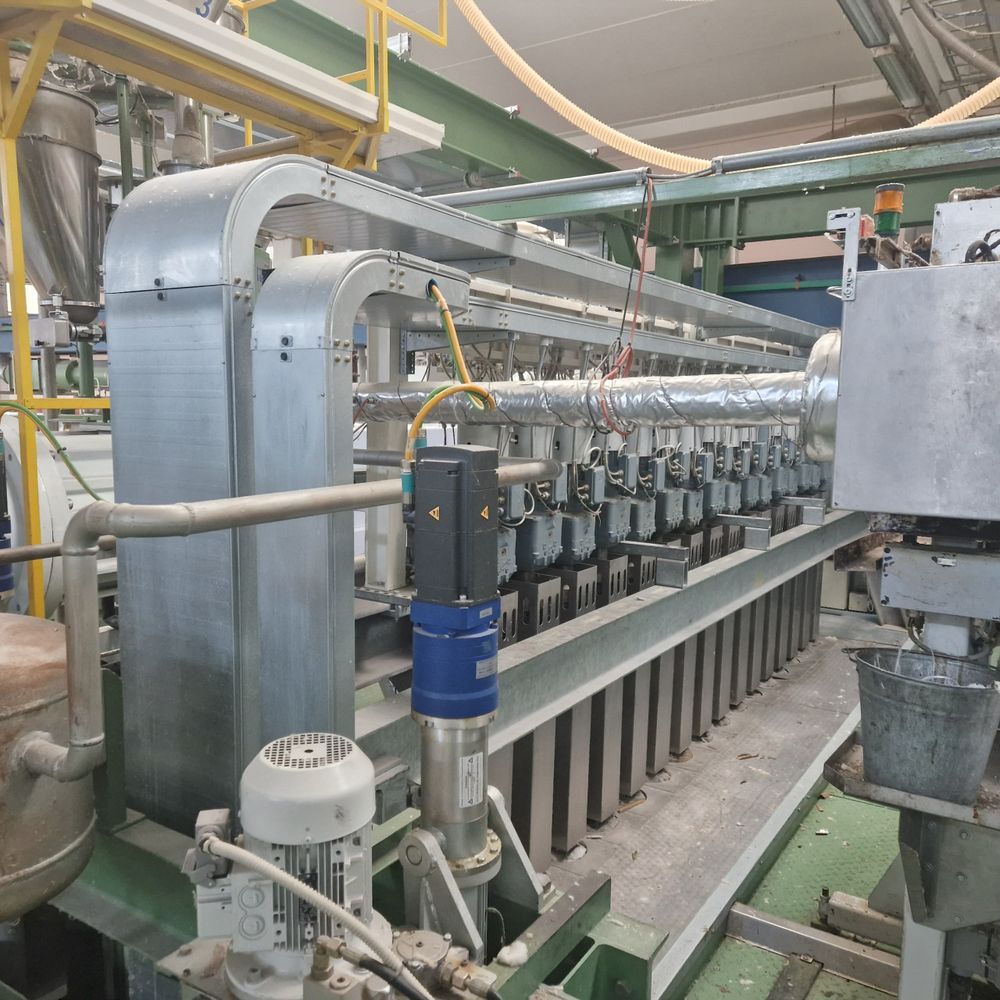

Meltblown spinning beam — MJ Atlanta
Heating and air blowing system for melt unit
Compressed air production system:
• No. 3 Atlas Copco compressors
• No. 1 air dryer
• No. 1 air receiver tank
Central compressed air distribution system
Water-to-water heat exchanger

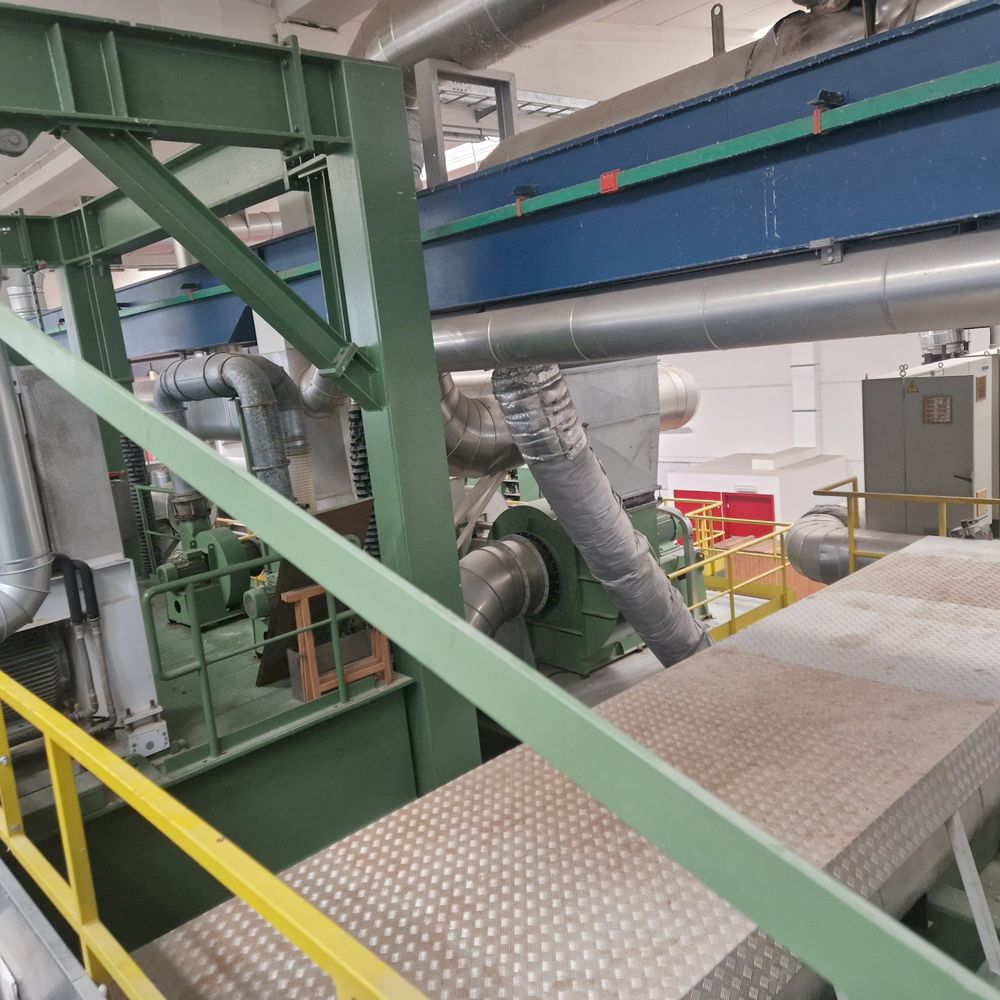

Process air treatment system
Chiller for process air cooling

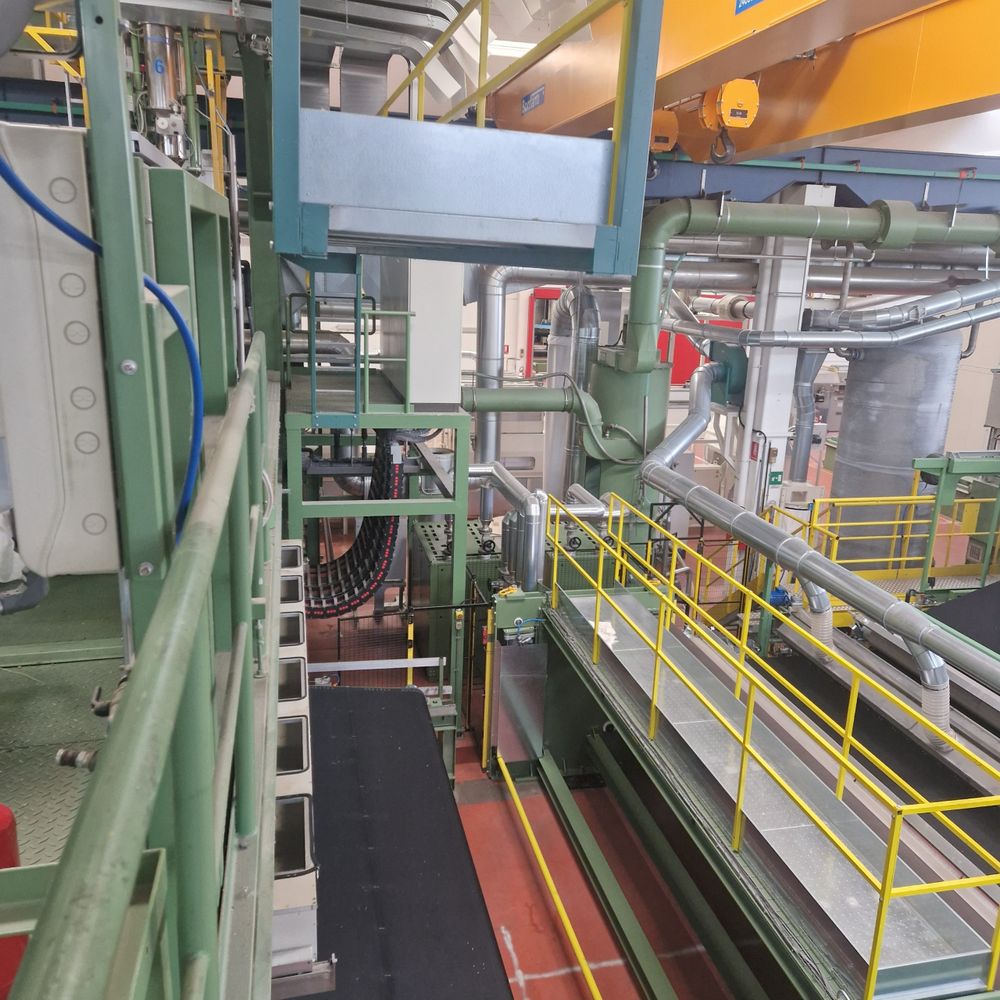

Web forming belt — Neumag
6 x cooling channels
Production line 2 — SPUNBOND type SMS
2 x spare belts
20,000 tons/year — monomer abatement system

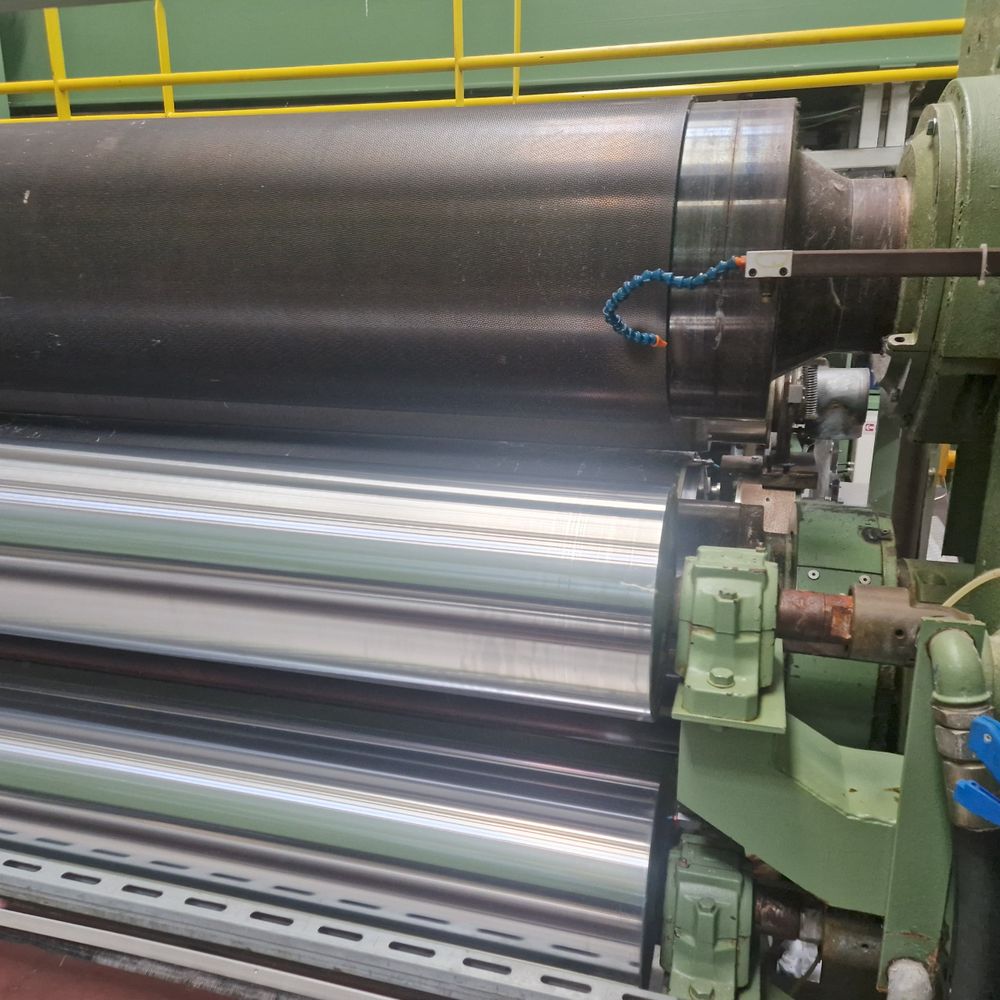

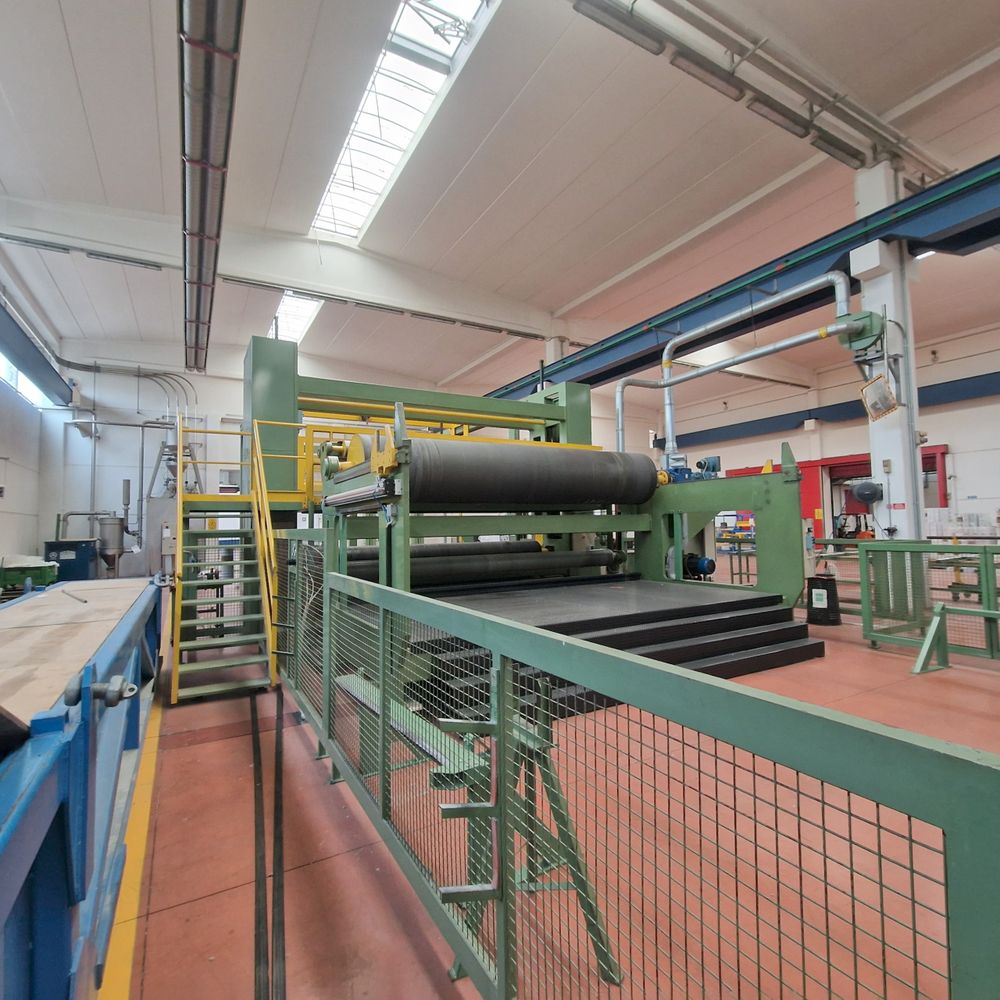

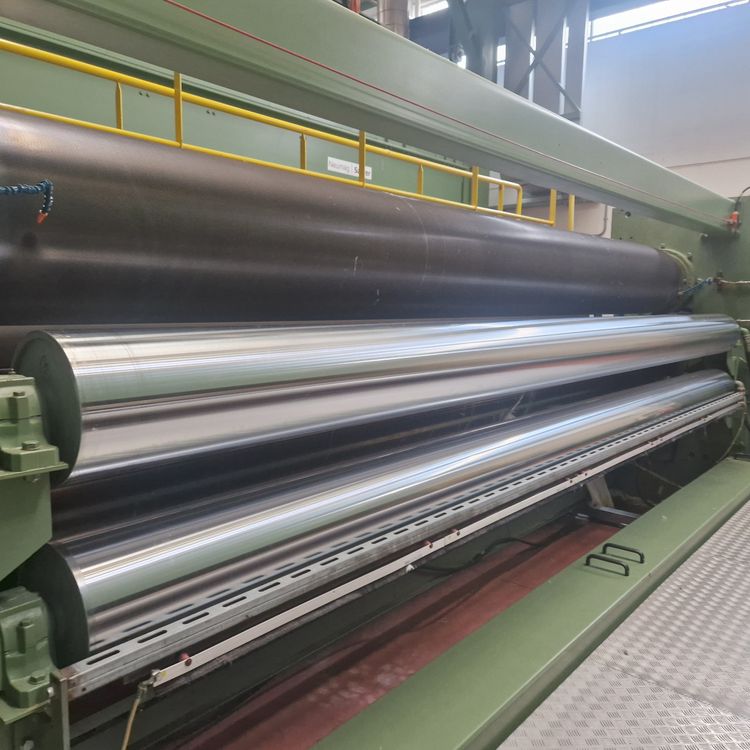

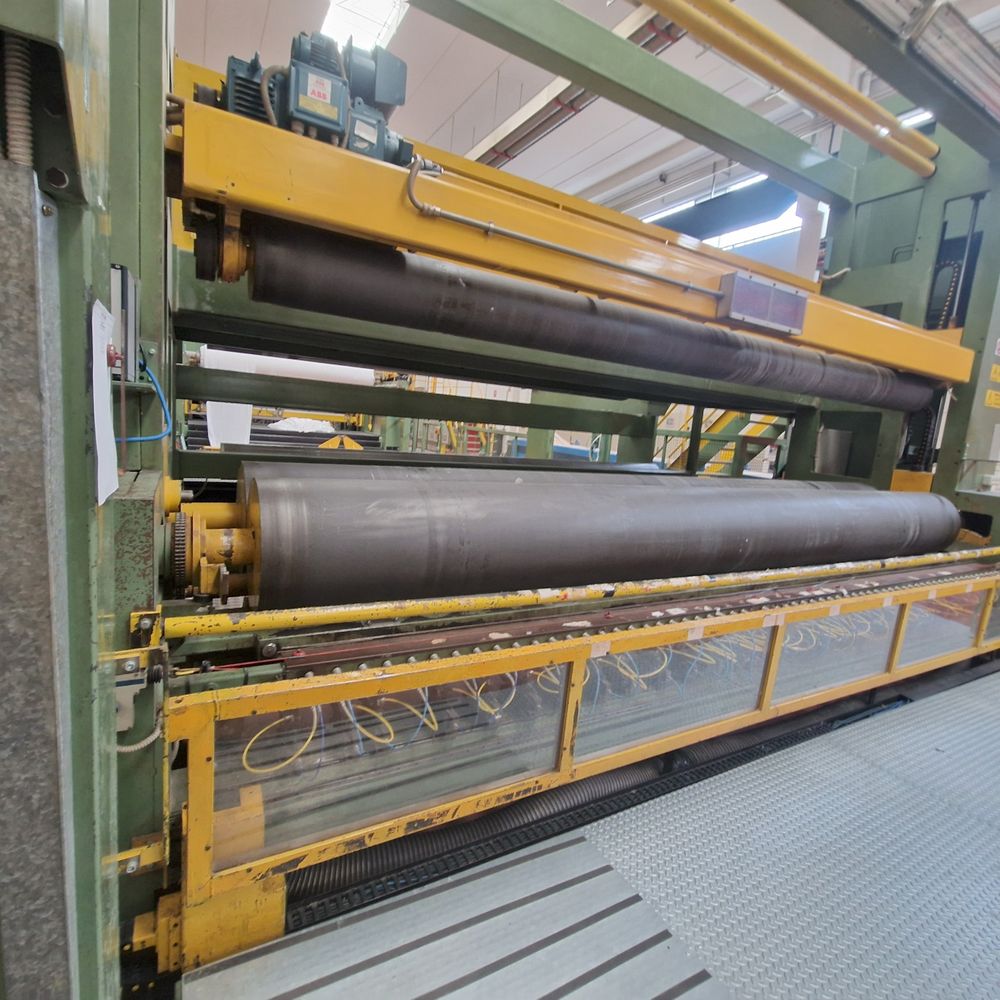

1 x Küsters calender
2 x engraved rolls + No. 1 smooth roll
Cooling system for calender drive rolls

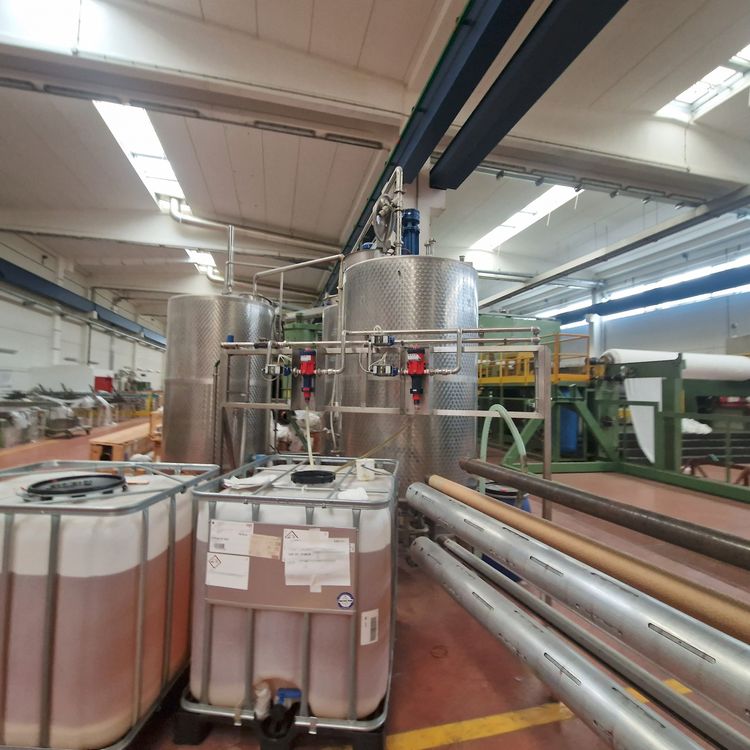

Hydrophilic impregnation unit

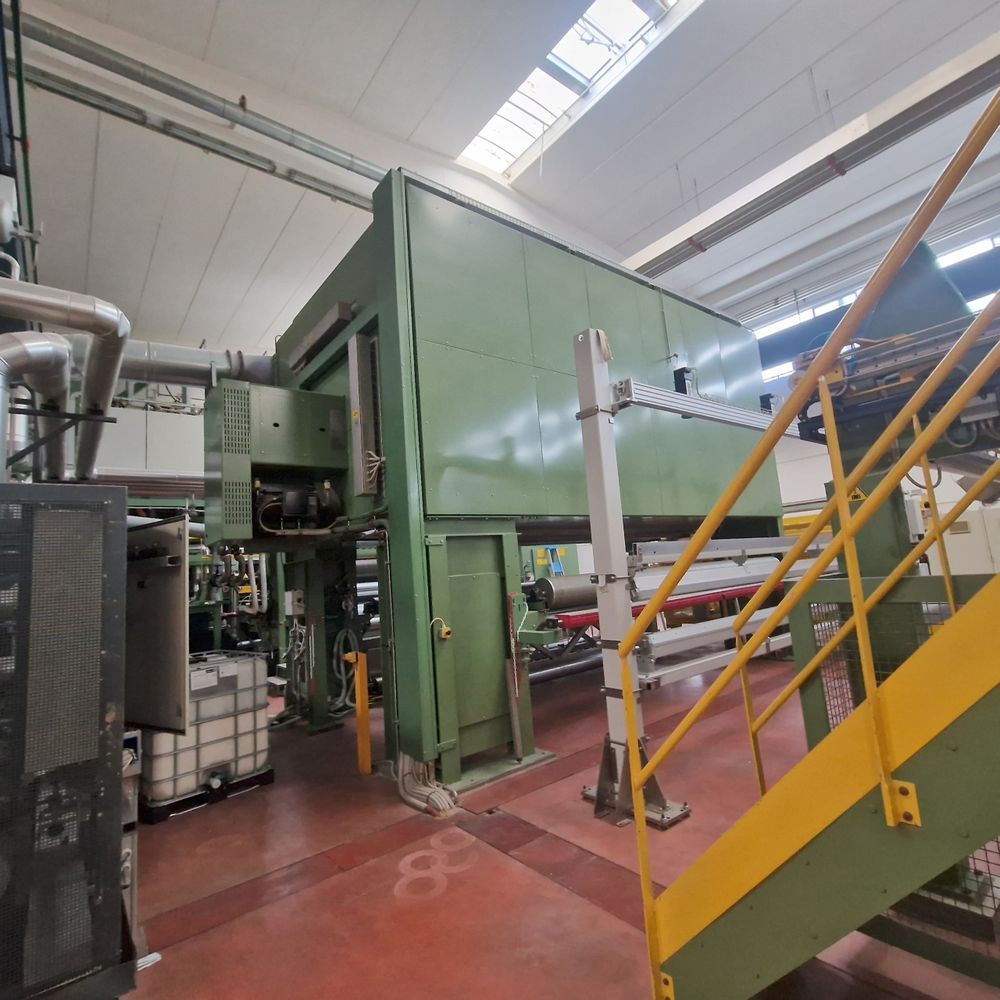

Drying oven for impregnated product — Fleissner
Fabric metal detector — Mesutronic
Fabric defect inspection system — Dr. Schenk

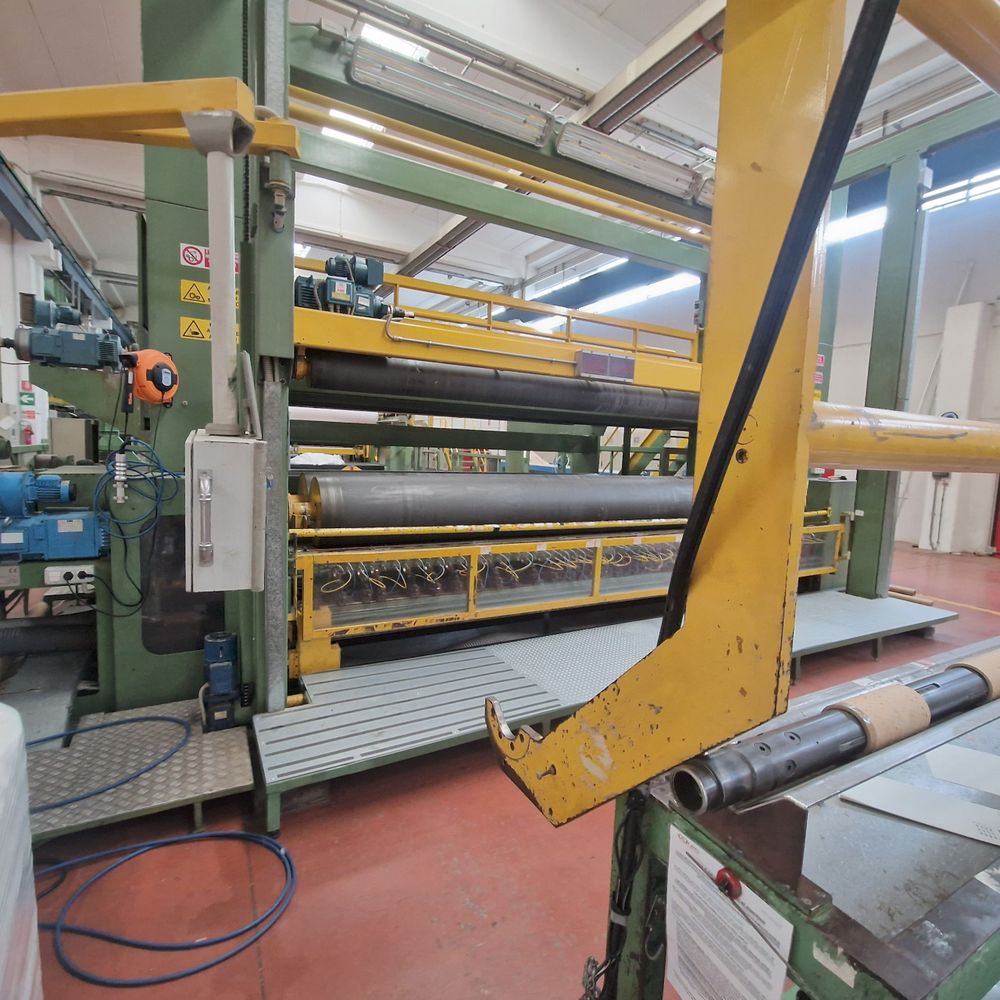

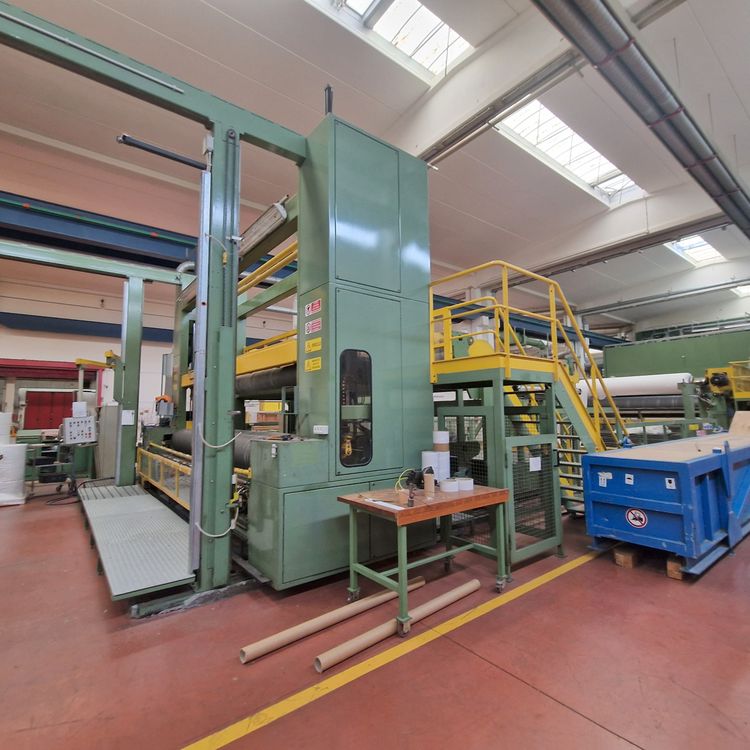

Automatic winder — L3
Rewinder and slitter — L3
2 x expandable shafts for slitter
Spinneret extraction trolley
Equipment for spinneret inspection and cleaning
8 x spinneret management programs
2 x spinneret assembly/disassembly benches
Spinneret opening and closing bench
Ultrasonic spinneret washing tank — MOVEngineering model USHRS 1260 (year 2000)
Crystallization furnace for spinneret cleaning — Vötsch model VTUT (year 2004)
Polymer removal tank — MOVEngineering model HYP50OTP (year 2000)

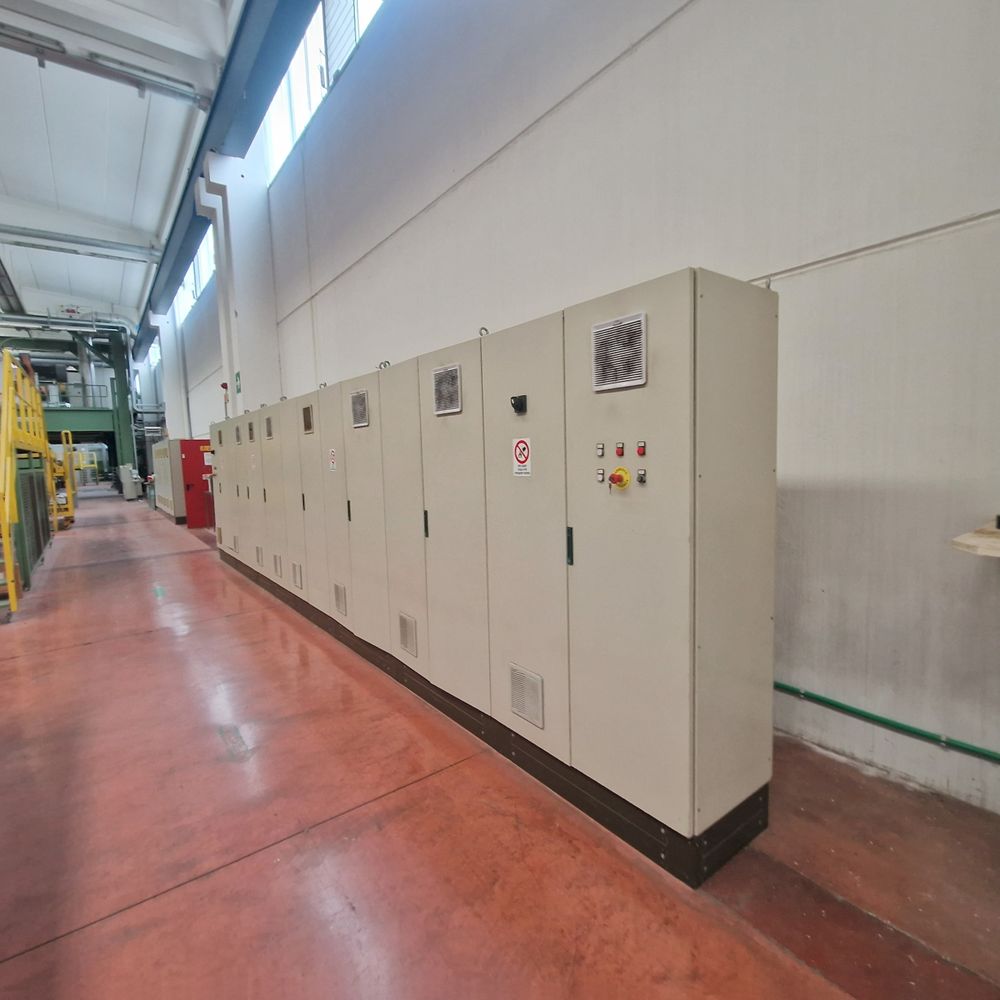

Line drives
Spare parts set
Plant installation systems
Inspection system
PP scrap granulation system — NGR S-Gran 65VHD (year 2011, serial Q-10079)
Hot air generator + filter — Neumag

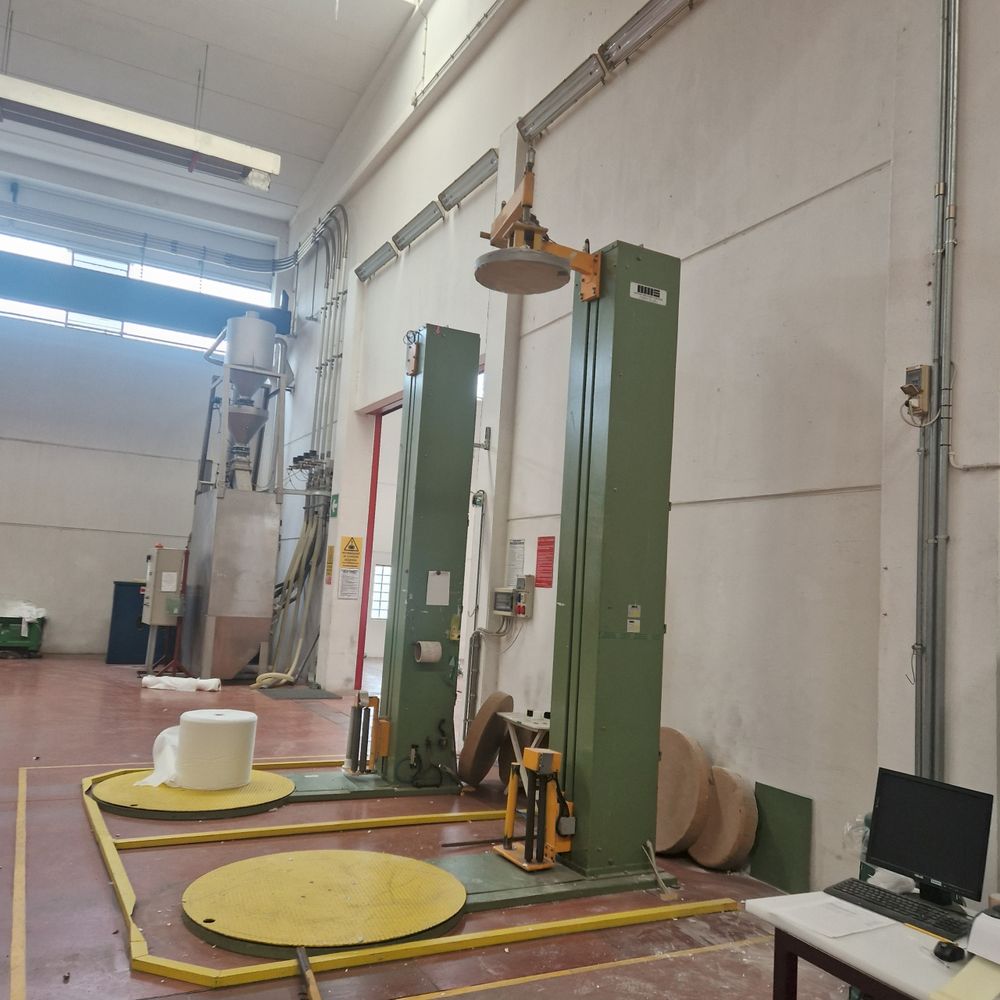

2 xwinders — OMS model AV25 (year 2000, serial 11452)
