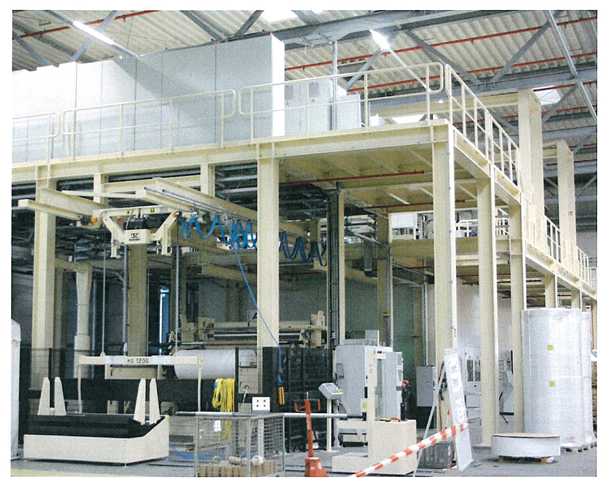

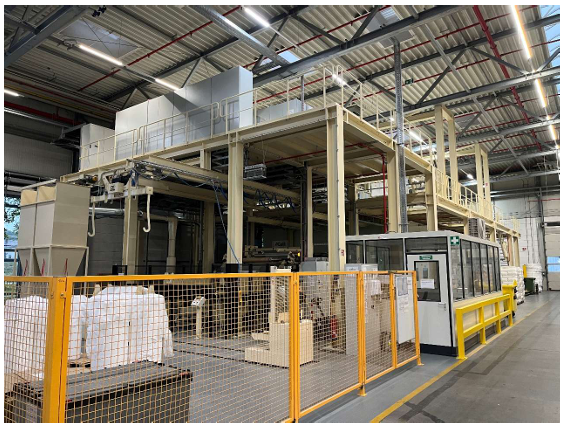

Oerlikon Meltblow non woven line

Offered for sale is almost brand new complete Meltblown nonwoven production line, designed for the
manufacturing of meltblown fabrics used in filtration, medical, hygiene and technical applications.
The line is based on industrial-grade components, modular design, and a high level of automation,
suitable for continuous production.

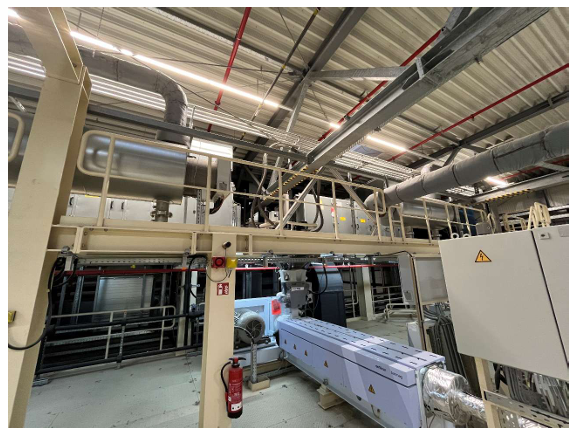

The system includes raw material handling, extrusion, meltblown spinning, web forming, quenching and
air systems, winding, electrical control and auxiliary equipment.
Machine has been running for few weeks only.

Main Applications:
Meltblown production lines are widely used for the manufacturing of fine-fiber nonwoven materials with
high filtration efficiency and uniform structure.
Typical end-use applications include:
• Filtration media for air and liquid filtration (HVAC, industrial filters, automotive filters)
• Medical and hygiene products, including face masks, respirators and protective materials
• Nonwovens for healthcare, such as surgical products and absorbent layers
• Industrial and technical textiles requiring controlled fiber diameter and porosity
• Composite and multilayer nonwoven structures in combination with spunbond materials
The offered line is suitable for both standard meltblown grades and technical filtration products, depending
on polymer type and process settings.

Key Technical Features:
Extrusion & Polymer Handling
• Dual extruder configuration (MB I & MB II)
• Throughput ranges (depending on polymer type):
o PP (MFI 400–1200): approx. 40–150 kg/h
o PET (IV 0.53): approx. 40–120 kg/h
o TPU (MFI 25): approx. 60–90 kg/h
• Gravimetric metering and mixing systems
• Stainless steel polymer pipelines and filters
• Electrically heated polymer distribution systems

Meltblown Spinning System
• Electrically heated meltblown spinning beams
• Operating temperature up to 345°C
• Heating power up to 52 kW
• Segmented air manifolds (double-sided)
• Precision pressure and temperature control
• High-capacity spinning pumps
• Quick-change spinneret system

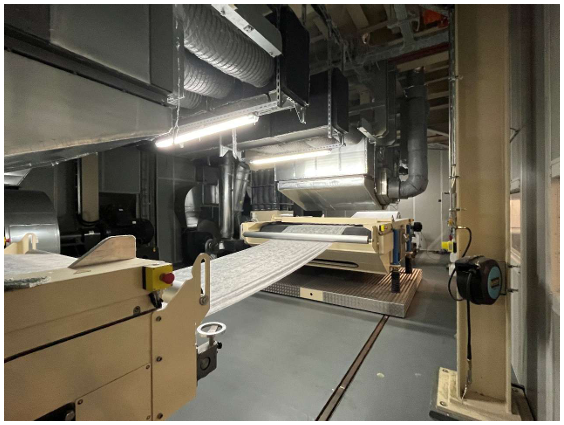

Web Forming & Fabric Handling
• Web forming system with pin-seam forming wire
• Adjustable working width up to 1,850 mm

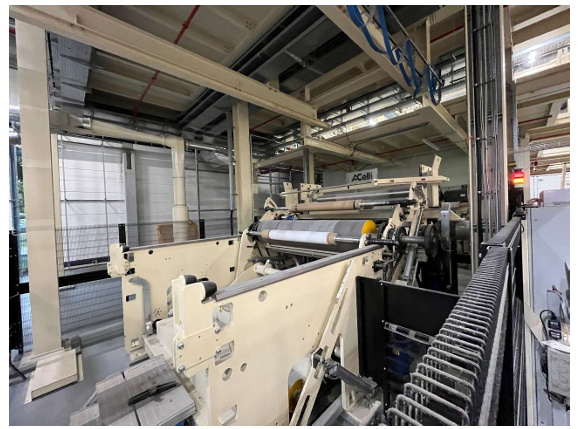

• Fabric winding system with:
o Automatic tension control
o Adjustable winding shaft
o Cross-cutting unit
o Roll unloading and handling system
• Suitable basis weight range (depending on setup): approx. 15–80 gsm

Air & Thermal Systems
• Quench air system with secondary air conditioning
• Chilled water unit for quench air systems
• Air heaters (electrically heated)
• Suction and exhaust air systems
• Controlled process air temperature and pressure

Electrical & Control System
 Siemens PLC-based control system
 Distributed electrical cabinets
 Process Control System (PCS) with visualization
 Central control panels and safety systems
 Emergency stop and fast stop devices
 Automation level up to FAUS 1.9

Utilities & Installation Conditions
 Electrical motors: IP54 / cabinets IP44–IP20 (depending on area)
 Ambient operating temperature range: 15–40°C
 Designed for industrial production environments
 Standard European electrical and safety directives applied

Scope of Supply
The offered system includes:
 Complete meltblown production line equipment
 Electrical cabinets and control system
 Air, heating, cooling and auxiliary systems
 Documentation (operation, maintenance, drawings)
 Spare parts and special tools (as specified)

Additional Information:
 Language of documentation and HMI: German / English (technical)
 Suitable for relocation and recommissioning
 Ideal solution for companies entering or expanding meltblown production
 Professional disassembly including matchmarking and loading into chosen transport unit performed
by appointed Contractor (in sale package)
 Available immediately, sold as is

pdf with full mline description available upon request
