3 Hyundai FANUC Series I CNC Color Control 2,000 RPM HYUNDAI WIA L4000 2 Axis

HYUNDAI WIA L4000
2023

Swing Over Bed: 30.7"
Machining Length: 41.1"
Chuck Size: 18"
Spindle Nose: A1-11
Spindle Bar Capacity: 5.2"
Max Turning Diameter: 22.4"
Spindle Speed: 2,000 RPM
Spindle Power: 35 HP
Spindle Bore Diameter: 4.6"
Rapid Traverse X: 788 in/min
Rapid Traverse Z: 985 in/min
Spindle Torque: 1,754 Nm
Gear Ranges: 2
Turret Stations: 10
Tailstock Quill Diameter: 4.7"
Tailstock Taper: MT #5
Tailstock Quill Travel: 4.7"
Programmable Tailstock: Yes
Tailstock Travel: 37.3"
Number of Axes: 2
Bar Capacity: 4.6"
Tailstock: Yes
Live Tooling: No
Sub Spindle: No
Control: FANUC Series I CNC Color Control
Machine Weight: 18,700 lbs
Cutting Hours: 2,635

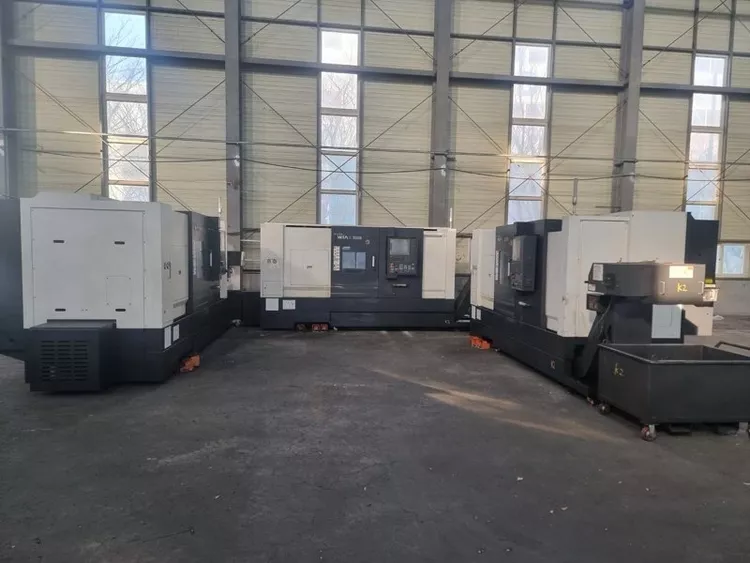

Machines Available: 4
Heavy Duty Box Way Construction: Yes
Tool Setter: Yes
Chip Conveyor: Yes
Hydraulic Chuck: 18" 3-Jaw
Chuck Pressure Failure Detector: Yes
