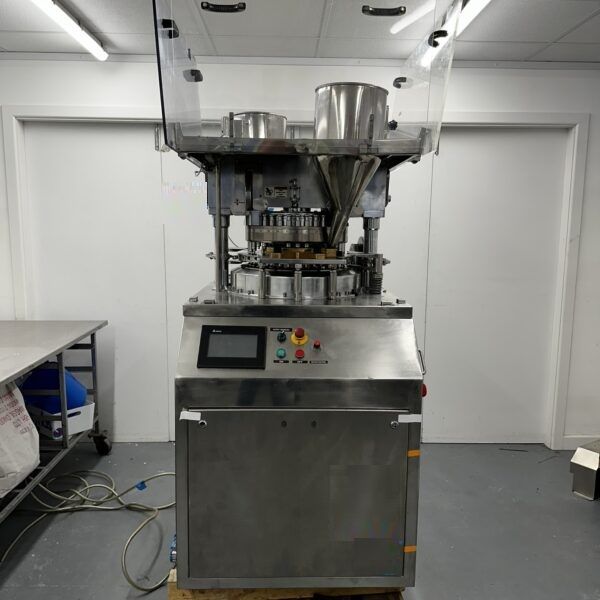

35 Station Tablet Press

35 Station Tablet Press (Double sided feed) – TP02

C.I. Body and C.I. Middle plate
CROMPTON GREAVES MAKE MOTOR.
Upper punch penetration
Electronic Digital Tablet RPM Counter
Inter lock Switches to all Guards.
Double Sided lifting cams
Lower Guard of polished Stainless Steel & Upper Guards of Acrylic Material
Aluminium Turret Guards
Effective Dust Extraction Nozzles
One shot Lubrication System, Anti Vibrating mounts
Reverse direction motion protection is provided to avoid accidents.

Number of stations 35
Type of Tooling ‘D’
Feed & eject positions 2
Output tablets / hour 129,600 Tablets per hour
Max. Operating Pressure 10 Tons
Max. Tablet Diameter 25mm
Depth of Fill 20mm
Upper Punch Penetration 1.5 – 8mm
Main Electrical Motor 7.5HP x 1440RPM x 3PH x 415V x 50Hz
Overall Dimension (mm) 1000 x 1040 x 1790mm high
Net Weight 1400Kg
Gross Weight 1800Kg
