370A+

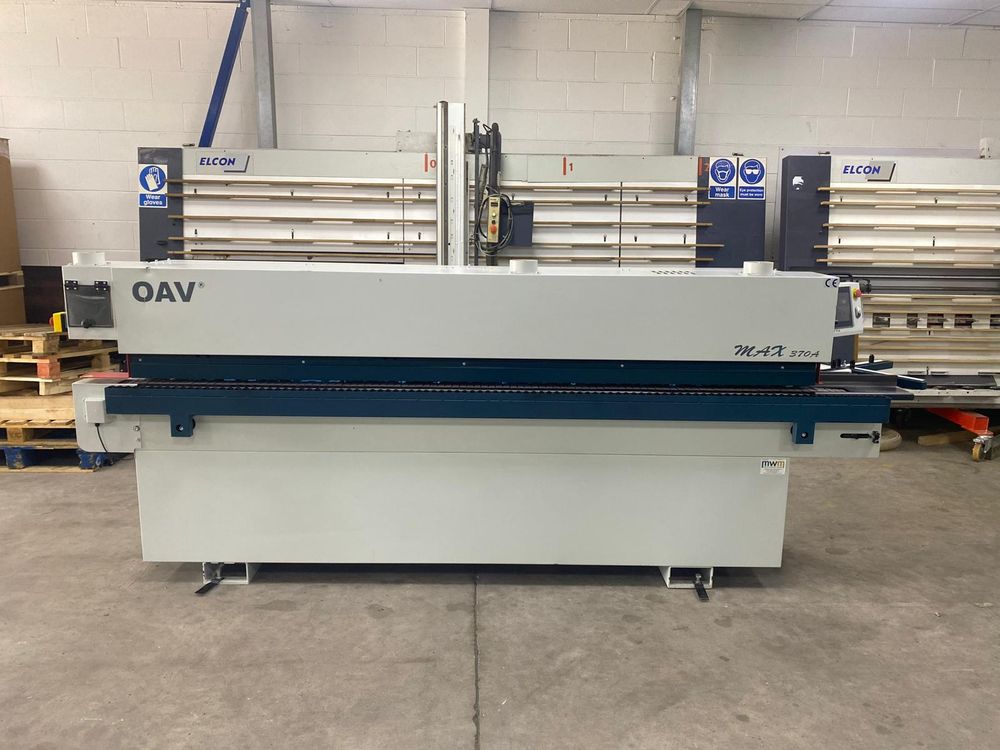

USED OAV 370A+ Corner Rounding Edgebander
PRE MILLING UNIT : Yes
MINIMUM PANEL LENGTH : 170mm
EDGE THICKNESS : 0.4mm
MINIMUM PANEL THICKNESS : 8mm
END TRIM : Yes
MOTOR POWER: 8.1Kw
CORNER ROUNDED : Yes
SCRAPING : Yes
BANDER TYPE: Hot Melt
FEED SPEED : 9m/min
MAXIMUM EDGE THICKNESS: 3mm
MAXIMUM PANEL THICKNESS : 45mm
TOP AND BOTTOM TRIM : Yes
BUFFING : Yes
DUST OUTLET SIZE (MM) : 3 x 120mm
VOLTAGE / PHASE : 415V / 3ph
WEIGHT : 905KG
OVERALL DIMENSIONS : 4088 x 1003 x 197mm

Features include :
Corner rounding Unit
Pre-heating
Pre-milling
Hot melt glue pot
End trimming
Nesting Rollers
Radius trimming
Radius scraping
Buffing unit
