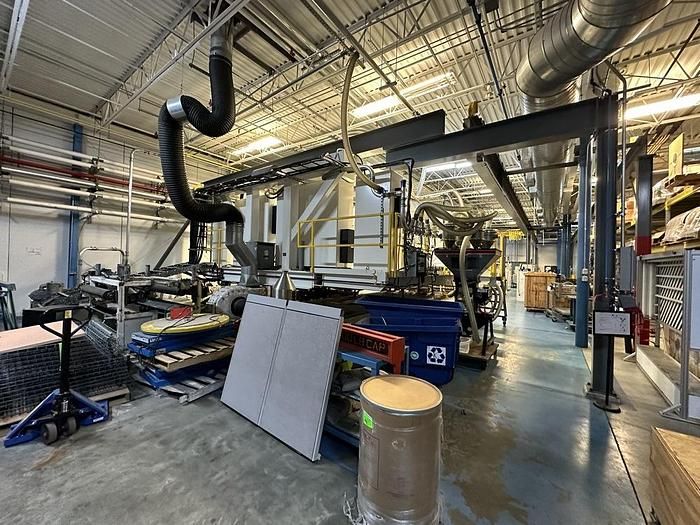

4.5″-Plus Two – 2.5″ Extrusion Web Line

4.5 EXTRUDER B – NEW 2009
Extruder #1 & #2 2.5″, 30:1 L/D Ratio
Extruder #1 & #2 Throughput 90-100 Lbs/Hr (Approx.)
Extruder #3 4.5″, 30:1 L/D Ratio
Extruder #3 Throughput 1,000 Lbs/Hr (Approx.)
Material Processed Fluoro Polymers (Pellet Form)
Max. Web Width *1 84″ Trimmed Finished / 92″ Untrimmed
Max. Web Width *2 56″ Trimmed
Nominal Machine Roll Face 96″ / 102″ at Winder (For Oscillation)
Machine Line Speed *1 *2 10 – 250 FPM
Gear-In Speed 250 FPM
Adjustable Thread Speed Up to 50 FPM
Process Tension Ranges *1 Low Range 5 – 50 Lbs / High Range 50 -150 Lbs
Hand of Except Winder/Drive Side *4 Right Side
Hand of Winder Only Left
Slitters Edge Trim Razor Blade (3 Pairs)
Max. Roll Diameter (Winder) 26″
Max. Roll Weight (Winder) 3,500 Lbs
Core Size Shafted *5 6″ ID, 6 1/2″ OD
Core Material Fibre
Web Tension Range *1 Low Range 5 – 50 Lbs / High Range 50 – 150 Lbs.
Idler Rolls 6″ OD Live Shaft Carbon Fiber
