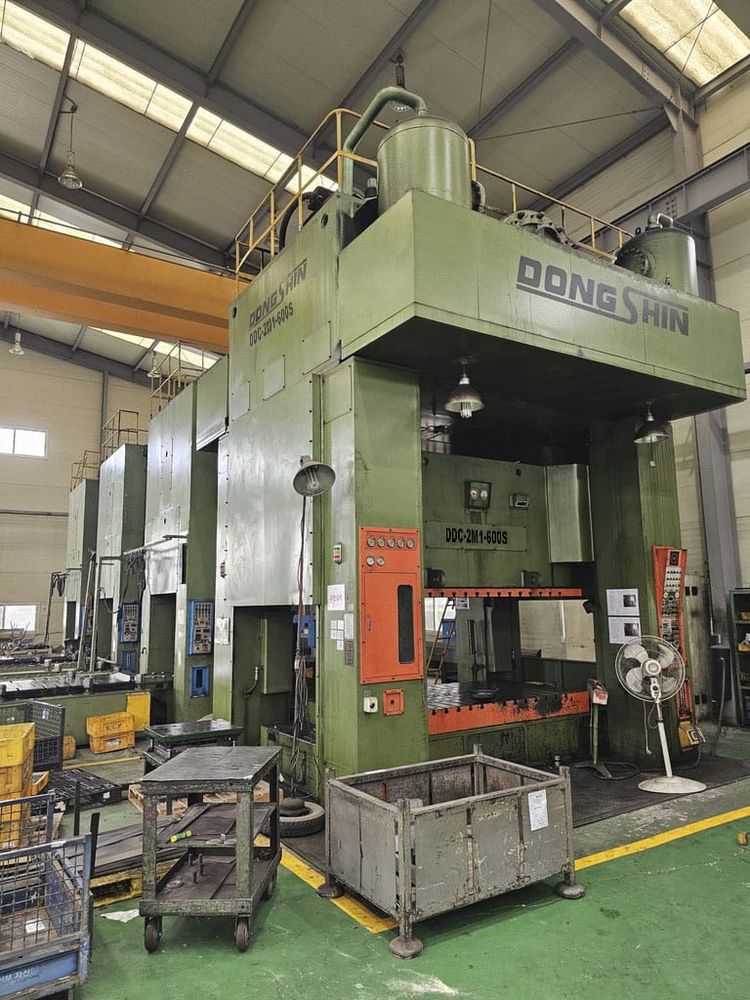

4 Dongshin DDC-2M1-600S – DDC-300 Press Line 300 t - 600 t
Ref :
2809990-3-GO
Condition :
Used
Manufacturer :
Dongshin
Model :
DDC-2M1-600S – DDC-300 Press Line
Pressure :
300 t - 600 t
Year(s) :
-
Quantity :
4
Location :
Seller or machines location:
ASIA (South)
ASIA (South)
Press 1 capacity: 600 t
Press 1 stroke: 350 mm
Press 1 die height: 1000 mm
Press 1 slide adjustment: 350 mm
Press 1 speed: 25 spm
Press 1 bolster: 3000 × 1600 mm
Press 2 capacity: 300 t
Press 2 stroke: 300 mm
Press 2 die height: 845 mm
Press 2 slide adjustment: 150 mm
Press 2 speed: 25 spm
Press 2 bolster: 2500 × 1500 mm
Press 3 capacity: 300 t
Press 3 stroke: 300 mm
Press 3 die height: 845 mm
Press 3 slide adjustment: 150 mm
Press 3 speed: 25 spm
Press 3 bolster: 2500 × 1500 mm
Press 4 capacity: 300 t
Press 4 stroke: 300 mm
Press 4 die height: 845 mm
Press 4 slide adjustment: 150 mm
Press 4 speed: 25 spm
Press 4 bolster: 2500 × 1500 mm
