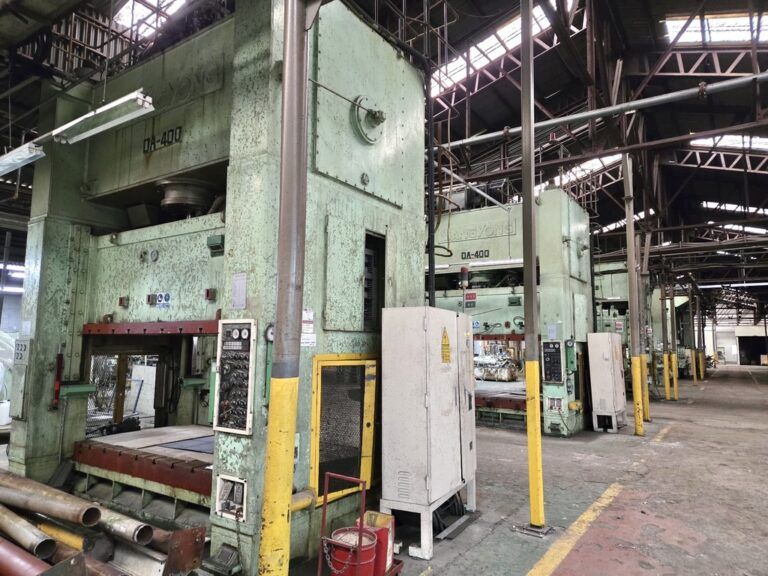

Dong Sung, Ssangyong DA-400-400 / DA-400D-28 – DA-300D-25 Press Line 300 t - 400 t
Ref :
2809993-3-GO
Condition :
Used
Manufacturer :
Dong Sung, Ssangyong
Model :
DA-400-400 / DA-400D-28 – DA-300D-25 Press Line
Pressure :
300 t - 400 t
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
ASIA (South)
ASIA (South)
Press 1 capacity: 400 t
Press 1 stroke: 400 mm
Press 1 die height: 920 mm
Press 1 slide adjustment: 250 mm
Press 1 speed: 12–24 spm
Press 1 bolster: 2800 × 1600 mm
Press 1 die cushion
Press 2 capacity: 400 t
Press 2 stroke: 400 mm
Press 2 die height: 920 mm
Press 2 slide adjustment: 250 mm
Press 2 speed: 12–24 spm
Press 2 bolster: 2800 × 1600 mm
Press 2 die cushion
Press 3 capacity: 400 t
Press 3 stroke: 400 mm
Press 3 die height: 920 mm
Press 3 slide adjustment: 250 mm
Press 3 speed: 20 spm
Press 3 bolster: 2800 × 1600 mm
Press 3 die cushion
Press 4 capacity: 300 t
Press 4 stroke: 300 mm
Press 4 die height: 900 mm
Press 4 slide adjustment: 250 mm
Press 4 speed: 20 spm
Press 4 bolster: 2500 × 1600 mm
