4-piston dispenser

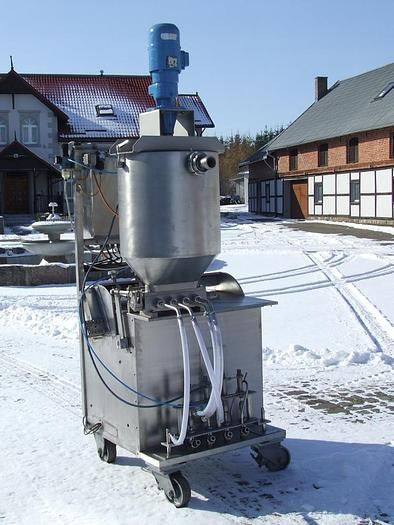

4-piston dispenser with jacketed hopper and agitator, stainless steel

Overall dimensions:
Length – 1,300 mm;
Width – 1,000 mm;
Height – 2,400 mm.

Technical specifications:
Stainless steel jacketed hopper capacity – 70 l;
Product is fed into the hopper through a frontal connection;
The hopper is equipped with a stainless steel embracing agitator;
Agitator rotation speed is regulated by an inverter;
Agitator motor power – 0.4 kW;
Main motor power – 3.0 kW;
Dispensing – 4 doses simultaneously;
Adjustable dispensing speed – up to 60 cycles/min x 4 dispensers = 240 pcs/min;
Dispensing range – 20-70 ml; Dosing piston diameter – 25 mm;
Adjustable dose stroke;
Manual dose adjustment on the connecting rod and pushers;
Pneumatic attachment for additional dose shutoff – prevents product boil-over;
Completely stainless steel construction;
Can be synchronized with the conveyor.
