7 DMG Mori Seiki MSX-853IV CNC Control 4000 RPM MORI NLX 2500/700 2 Axis

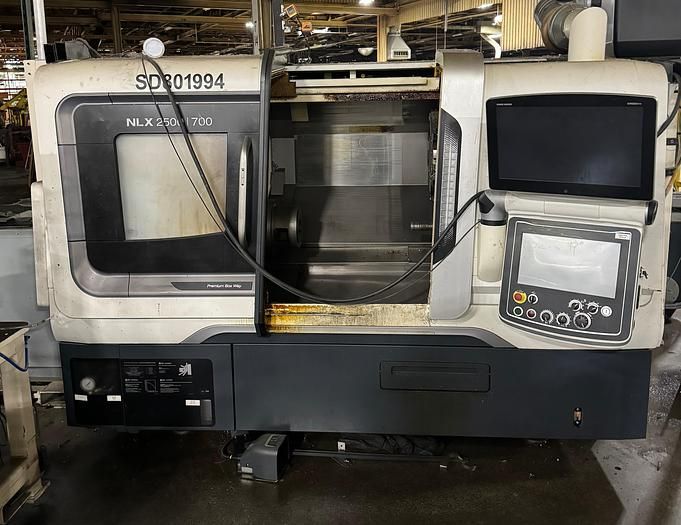

DMG MORI NLX 2500/700 2 AXIS CNC LATHE WITH CHIP BLASTER
DATE OF MFG. 2015

7 UNITS AVAILABLE

Mori Seiki MSX-853IV CNC Control
Cutting Time ?
Collet Hydraulic Chuck
10 Station High Speed Turret
25 HP Spindle Power
PCMCIA Card Slot
Rigid Tapping
Coolant System Chip Blaster

Capacity:
Max Turning Diameter: 14.4″
Max Turning Length: 27.7″
Max Bar Capacity: 3.1″
Swing Over Bed: 23.2″
Distance Between Centers: 31.5″

Travels:
X Axis Travel: 10.2″
Z Axis Travel: 31.2″
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM
Spindle: Spindle Nose: A2-8
Spindle Bore: 3.5″
Spindle Speed: 4000 RPM
Spindle Motor: 25 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second
Tool Holders Type: BMT

Tailstock:
Tailstock Body Travel: 25.5″
Tailstock Quill Dia.: 3.34″
Tailstock Quill Stroke: 3.1″
Tailstock Taper: MT-4
General: Power Source: AC 220 V, Three Phase, 60 Hz Power Requirement: 26 kva
Overall Dimensions: 103″ x 75 ″ x 72″ High
Weight : 9,900 lbs Approx.

EQUIPPED WITH:
Programmable Tailstock
Chip Conveyor
