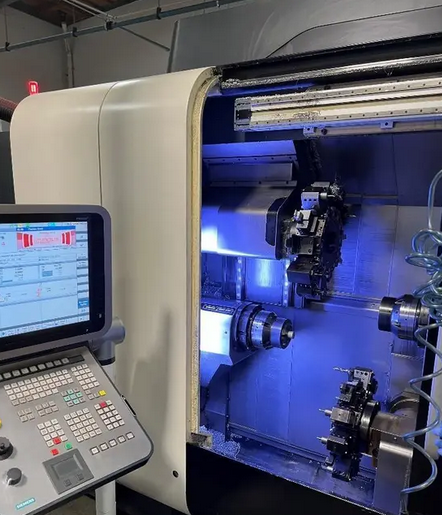

DMG, Gildemeister CNC CONTROL 7000 rpm SPRINT 50 2 Axis

Two turrets
Tailstock
Chip conveyor
12 ATC

X/Y/Z travel (turret slide 1): 8.5 / ±1.4 / 13.8 in
Rapid traverse X/Y/Z (turret slide 1): 1,181.1 / 590.5 / 2,362.2 ipm
Acceleration X/Y/Z (turret slide 1): 23.0–32.8 ft/s²
X/Y*/Z travel (turret slide 2): 4.9 / ±1.4 / 13.8 in
Rapid traverse X/Y/Z (turret slide 2): 1,181.1 / 590.5 / 2,362.2 ipm
Acceleration X/Y/Z (turret slide 2): 5.7 / 15.0 ft/s²
X/Z travel (counter spindle slide): 1,181.1 / 2,362.2 in
Rapid traverse X/Z (counter spindle slide): 23.0–32.8 ipm

C-axis main spindle: 0.001°
C-axis counter spindle: 0.001°

Integrated spindle motor main spindle: 7000 rpm
Main spindle power (40/100% DC): 32.2 / 21.5 hp
Main spindle torque (40/100% DC): 73.8 / 55.3 ft-lbs
Main spindle run-up to 4,000 rpm: 0.9 sec
Main spindle head diameter: 4.7h5 in
Bar capacity main spindle: 2.0 in
Collet chuck diameter main spindle: 5.5 in
Integrated spindle motor counter spindle: 7000 rpm
Counter spindle power (40/100% DC): 29.5 / 21.5 hp
Counter spindle torque (40/100% DC): 73.8 / 55.3 ft-lbs
Counter spindle run-up to 4,000 rpm: 0.9 sec
Counter spindle head diameter: 4.7h5 in
Bar capacity counter spindle: 2.0 in
Collet chuck diameter counter spindle: 5.5 in

Number of driven tools: 12
Tool interface: 12 × VDI 25 with TRIFIX
Driven tool speed: 8000 rpm
Driven tool power (40% DC): 8.4 hp
Driven tool torque (40% DC): 8.9 ft-lbs
Chip-to-chip time: 0.8 sec
Turrets: Two

Tailstock stroke: 20.1 in
Tailstock force: 3,000 N
Tailstock center: MK3

Machine footprint including chip conveyor: 103.3 ft²
Chip conveyor discharge height: 45.3 in
Machine height: 92.7 in
Machine weight: 20,282.5 lbs
