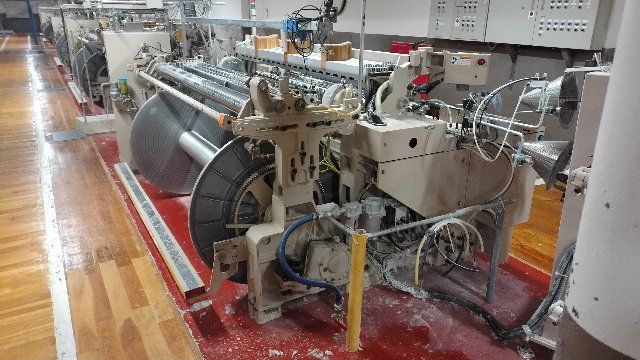

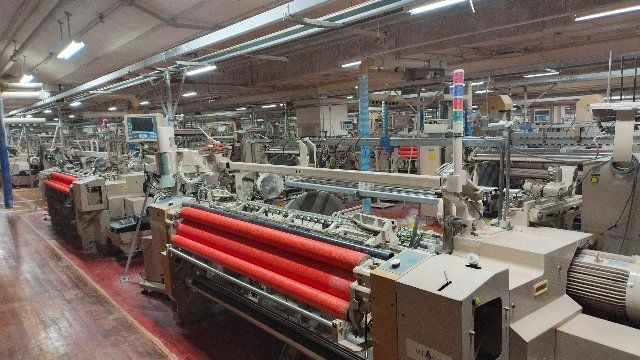

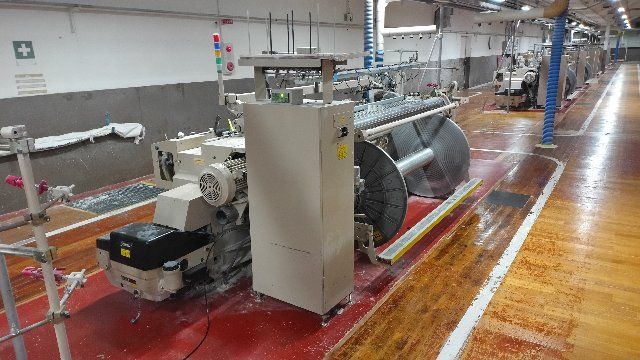

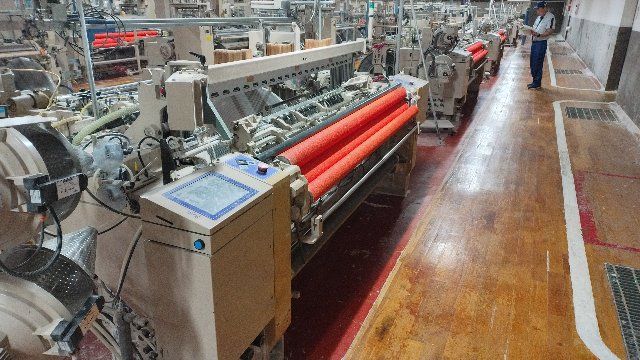

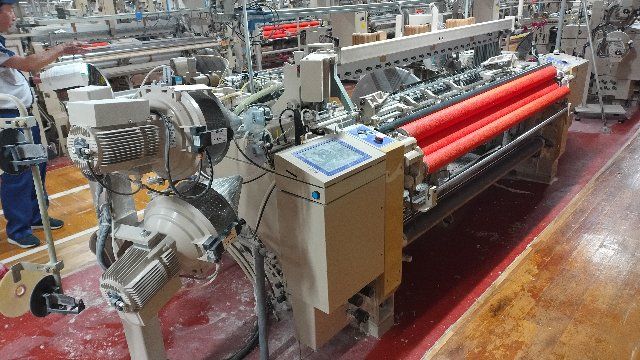

8 Tsudakoma ZAX E 190 Cm Staubli electronic dobby 2871

Year 2001 x 2, 2002 x 2, 2003 x 4
2-Color
700rpm depending on type of fabrics woven

Driving : Programmed and direct drive/stop mechanism by electromagnetic brake
Push button operation using both hands

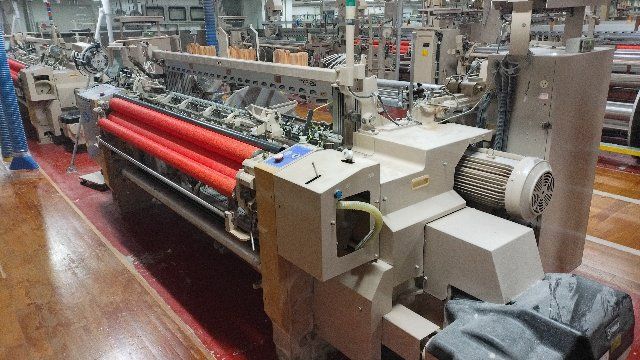

Rush start motor, 3.7kw, 60Hz/440V

Filling insertion : Main and sub-nozzle combined system with profile reed
= S4-type 2.0L main nozzle, 1.5GT Sub-Nozzle, with mist cleaner.
Solenoid valve (SVU) control, auxiliary main nozzle
(independant control type)

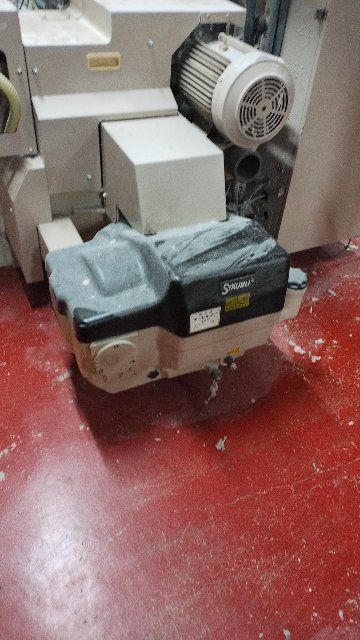

Shedding : Staubli Positive Electronic Dobby shedding type 2871, 16 shafts installed,
14pcs Riderless J-Type heald frames 331mm flate heald length

Let-Off : Continuous and fully automatic positive electronic let-off (ELO)
with programmable kick-back mechanism, 930mm beam flange dia.

Take-Up : Mechanical Continuous indirect take-up system (MTU)

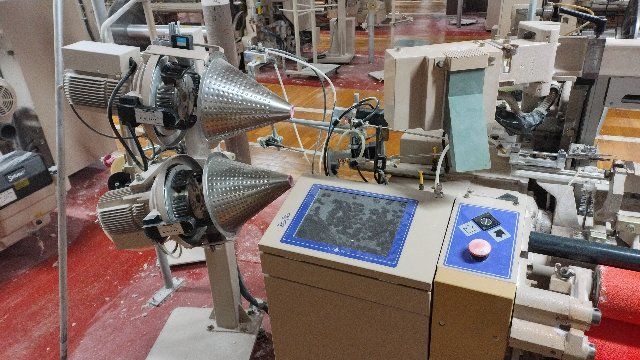

Woven length counter, display on Graphic iT-board (meter/yard/pick)
with pre-sent counter function.

1.5pcs warp beam,1.5pcs cloth roller per machine,

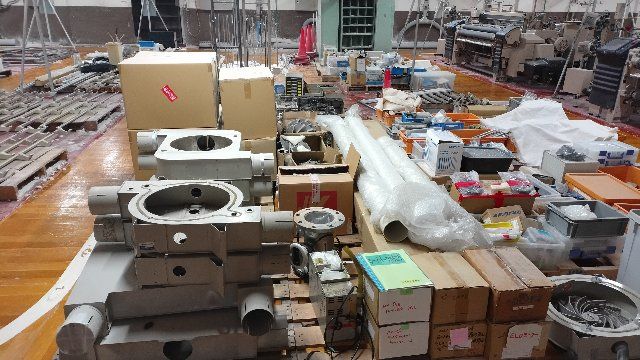

14 heddle frames, heald wires, droppers, 1 reed, etc.
