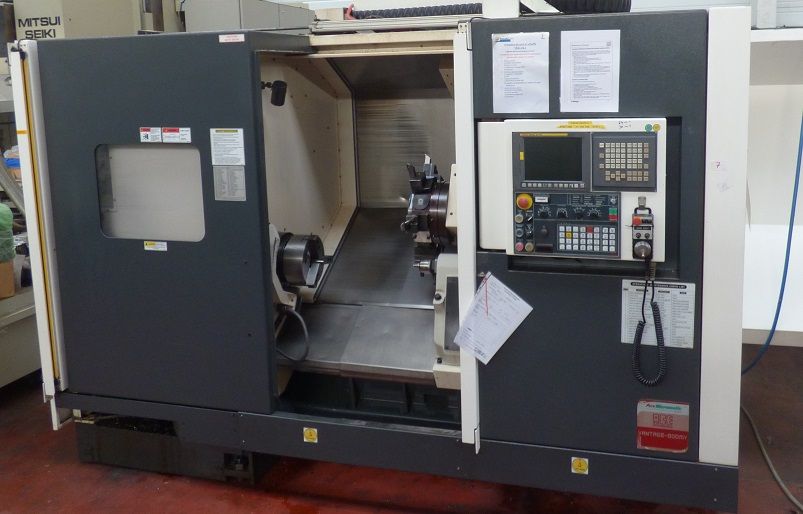

Ace FANUC SERIES OiTD 4000 TYPE VANTAGE 800MY DIGITAL CONTROL LATHE 2 Axis

ACE TYPE VANTAGE 800MY DIGITAL CONTROL LATHE
YEAR 2016


Type:VANTAGE
Type of NC: FANUC SERIES OiTD
Allowable diameter above the bench (mm): 640
Passage diameter above the carriage (mm): 400
Distance between tips (mm): 1025
Maximum turning diameter (mm): 400
Max machining length (mm): 800
Stroke X (mm): 300
Stroke Y (mm): +55/-75
Z stroke (mm): 800
Spindle rotation speed (rpm): 4000
Spindle bore (mm): 63
Spindle nose:A2-8
Maximum diameter in bar (mm): 51
Number of turrets: 1
Number of turret posts: 12
X-axis rapid feed rate (m/min): 20
Y axis rapid feed rate (m/min): 10
Z axis rapid feed rate (m/min): 20
Tailstock:MT4
Floor space (L x W x H): 3690X1900X2500
Weight (g): 6 kg

Equipment
CONVEYOR
AUTOMATIC DOORS
3 FIXED TOOL HOLDER
3 ROTATING TOOL HOLDER
