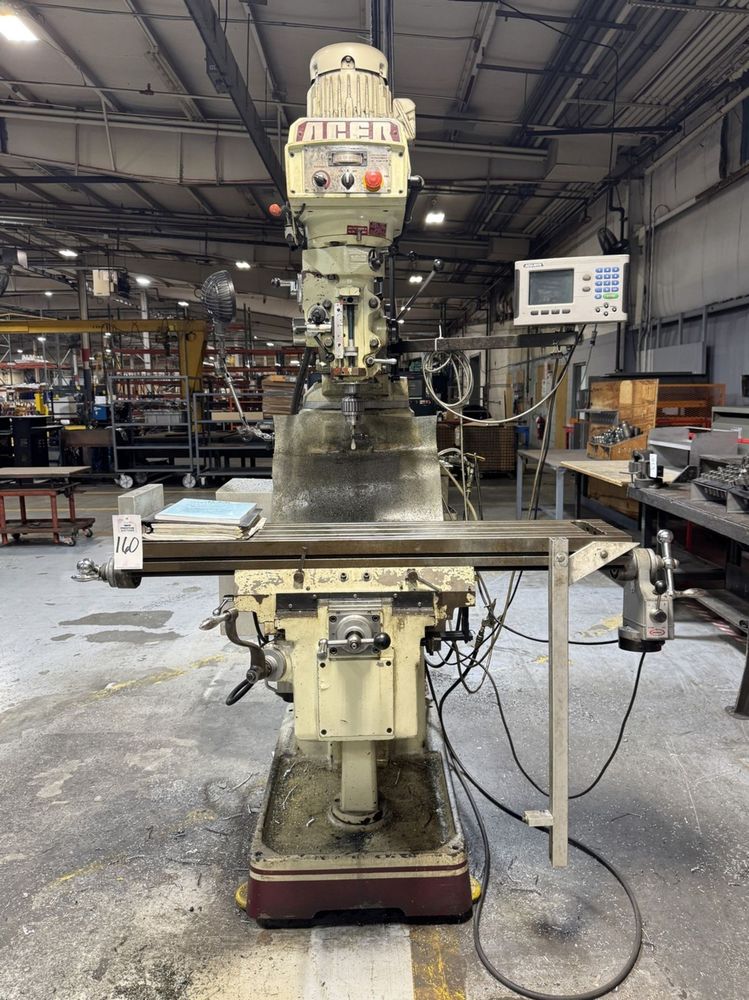

Acer 3VKH Vertical Variable Speed

Table Working Surface: 10" x 50"
Number of T-Slots (Width): 3 (5/8")
Longitudinal Travel (X, Manual): 32-1/2"
Cross Travel (Y): 16"
Vertical, Knee Travel: 19"
Quill Travel (Z): 5"
Ram Travel: 20"
Head Tilt, Left and Right: 90 Degrees
Head Tilt, Front to Rear Each Way: 45 Degrees
Turret Rotation: 360 Degrees
Max Distance, Spindle Nose to Table Top: 18"
Min Distance, Spindle Nose to Table Top: 2"
Power Quill Feeds: .0015 IPR
Power Quill Feeds: .003 IPR
Power Quill Feeds: .006 IPR
Quill Diameter: 3-3/8"
Spindle Speeds: 0 - 4,500 RPM
Spindle Taper: R-8
Maximum Collet Capacity: 3/4"
Approximate Dimensions: 79" x 74" x 90"H
Approximate Weight: 3,100 lbs
AC Frequency Inverter Spindle Drive
ACU-RITE Two-Axis Digital Readout
Servo Power Feed for Longitudinal Table Travel
Hardened and Ground Box Ways for X & Y Axes
Meehanite Casting
One-Shot Lubrication System
Spindle Drive Motor: 3 HP
