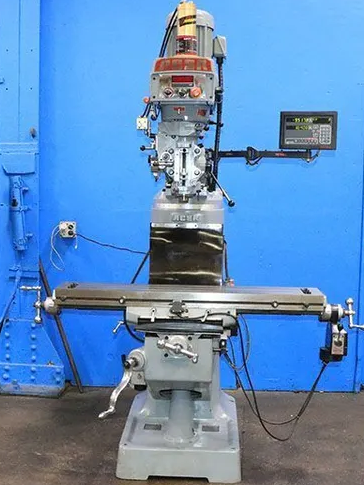

Acer E-MILL 3VSII Vertical 4,500 RPM

Table working surface 9" x 49"
Number of T-slots (width) 3 (5/8")
Longitudinal table travel (X) 34"
Cross travel (Y) 12"
Vertical knee travel 16"
Quill travel (Z) 5"
Ram travel 12"
Head tilt left & right 90°
Head tilt front & rear 45°
Turret rotation 360°
Power quill feeds .0015, .003, .006 I.P.R.
Quill diameter 3-3/8"
Infinitely variable spindle speeds 60–4,500 RPM
Spindle taper R8
Maximum collet capacity 3/4"
AC frequency inverter spindle drive
Newall two-axis digital readout
Servo power feed for longitudinal table travel
Torque-Rite air actuated power draw bar
Hardened and ground dovetail ways for X & Y axes
Meehanite casting
One-shot lubrication system
Spindle drive motor 3 HP
Approximate dimensions 79" x 74" x 90"H
Approximate weight 2,500 lbs
