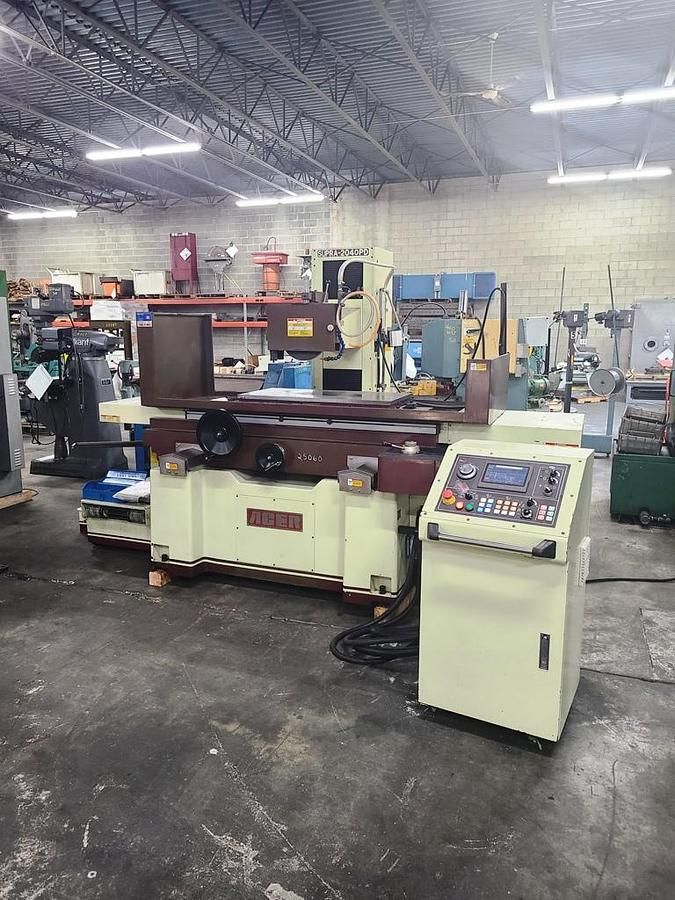

Acer ACER SUPRA 2040PD

Table area: 15.98" x 40.15"
Max grinding length: 40.15"
Grinding width: 19.68"
Max distance spindle center line to table surface: 24.8"
Table longitudinal travel hydraulic: 41.73"
Table longitudinal travel manual: 43.30"
Variable table feed: 196.8–984.25 IPM @ 60 Hz
Table load capacity with chuck and part: 1,620 lbs max
Cross travel of saddle automatic feed increment: 0.0397"–0.984" IPM
Cross travel of saddle automatic constant feed speed: 20.07" IPM
Cross travel of saddle automatic manual travel: 0.000787"
Vertical feed of wheelhead hand wheel per graduation: 0.000197"
Vertical feed of wheelhead automatic feed: 5.90" IPM
Vertical feed of wheelhead step feed: 0.236" IPM
Standard grinding wheel size: 13.97" OD x 1.968" wide x 5" bore
Hydraulic system motor: 3 HP
Cross feed drive motor: 1.3 HP
Rapid elevation motor: 1/4 HP
Spindle motor: 7-1/2 HP, 1750 RPM @ 60 Hz, 230/460 V, 3 phase, 50/60 Hz
Presently wired for 440 V operation
Approx floor space needed for operation: 200" LR x 75" FB x 83" H
Overall size machine: 122" LR x 75" FB x 83" H
Machine weight: 10,600 lbs

(1) grinding wheel hub
19-3/4" x 39" Acer standard pole electromagnetic chuck
PLC control with operators console on wheels
Over-the-wheel wheel dresser
Free standing coolant system with filter
Acer control system operation manual
Grinder operation manual - parts and schematics
