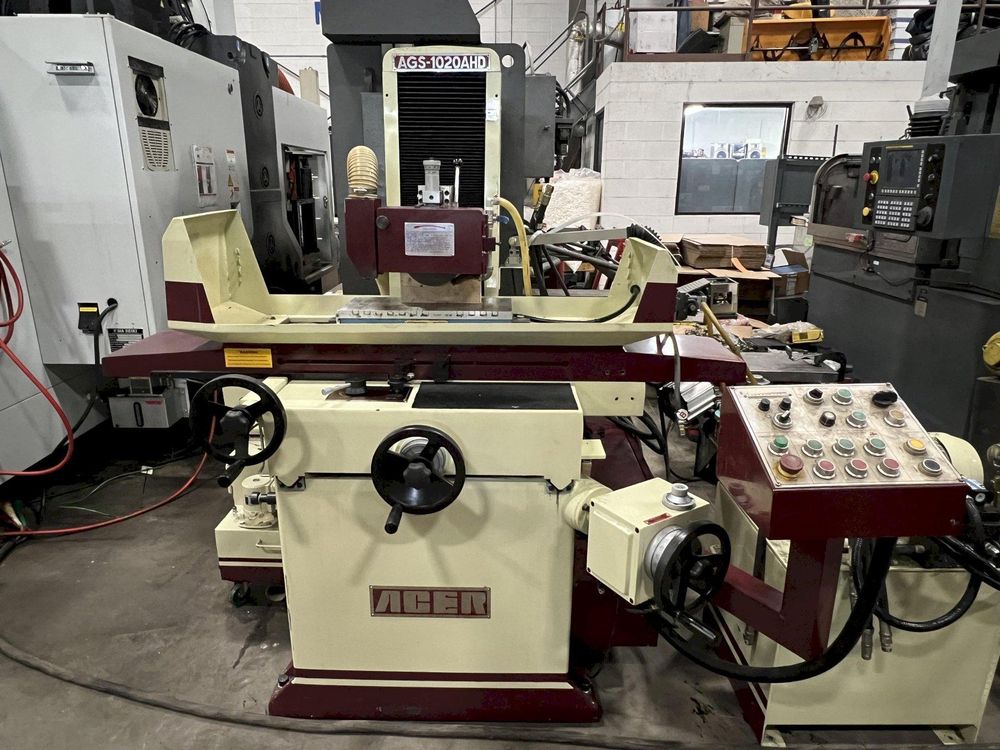

Acer AGS-1020AHD

ACER AGS-1020AHD
Year: 2011

Specifications:
Table Size: 10" × 20"
Max Grinding Width: 10"
Max Grinding Length: 20"
Max Spindle to Table Height: 19.5"
Max Table Load: 1,000 lbs
Table Longitudinal Travel: 20.5"
Cross Travel: 11"
Grinding Wheel Diameter: 8"
Grinding Wheel Width: 0.5"
Grinding Wheel Hole Diameter: 1.25"
Spindle Speed: 3,580 RPM
Longitudinal Feed Range: 16–80 FPM
Auto Crossfeed Travel: 0–1"
Auto Downfeed Range: 0.0001–0.001 IPR
Spindle Motor: 2 HP
Hydraulic Motor: 2 HP
Dimensions: 5'6" × 6' × 5' H
Weight: Approx. 3,600 lbs
Electrical: 230V / 3PH

Equipped With:
Auto Downfeed
8" × 18" ACER Electro Magnetic Chuck
Coolant System
