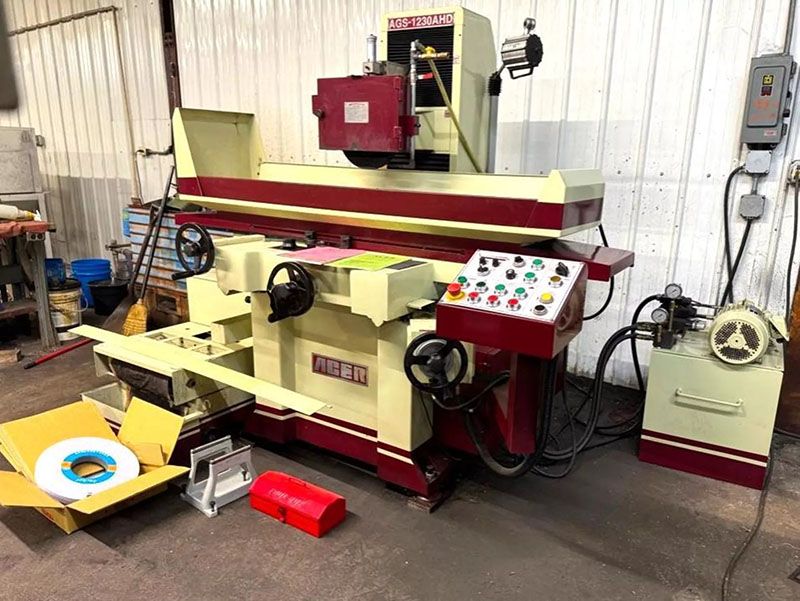

Acer AGS-1230 AHD

Max grinding surface: 12 x 30 in
Distance spindle center to table: 23.5 in
Table speed: 16 – 80 ft/min
Max table travel: 33.1 in
Auto crossfeed increment: 0 – 1 in
Max crossfeed travel: 13.1 in
Crossfeed per revolution: 0.1 in
Crossfeed per graduation: 0.001 in
Crossfeed per revolution (handwheel): 0.2 in
Auto downfeed: 0.001 – 0.0001 in
Vertical graduation: 0.0005 in
Vertical per revolution: 0.1 in
Vertical micro adjustment: 0.0001 in

Spindle speed: 1750 rpm
Spindle motor: 5 hp

Grinding wheel size: 14 x 1.25 x 5 in
Table load capacity: 1000 lbs

Automatic incremental downfeed
Power rapid wheelhead positioning
Hydraulic longitudinal feed
Electronic crossfeed
Turcite-B coated ways
Electromagnetic chuck 12 x 28 in
Neutralizer control
Coolant system with paper filtration
Over-the-wheel dresser
Meehanite casting
Automatic lubrication system
External hydraulic system

Hydraulic pump motor: 2 hp

Machine dimensions: 88 x 68.5 x 87 in
Weight: 4290 lbs
