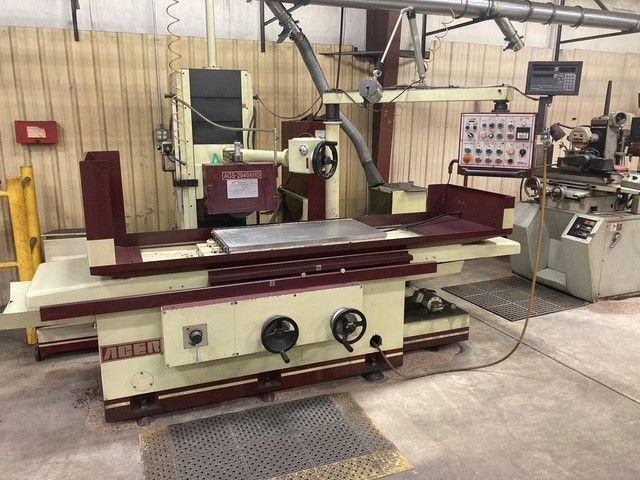

Acer AGS-2040AHD

Table size: 20" x 40"
Max table travel: 64"
Max cross travel: 22"
Crossfeed increment: 0" – 1"

Table speed: 16 – 80 FPM
Hydraulic table drive

Max table load: 2,500 lbs
Distance spindle to table: 23.625"

Spindle motor: 10 HP
Grinding wheel size: 16" x 2" x 5"

Auto incremental downfeed: 0.0002" – 0.002"
Downfeed per graduation: 0.0001"
Downfeed per revolution: 0.02"
Crossfeed per graduation: 0.001"
Crossfeed per revolution: 0.2"

Machine dimensions: 120" x 91" x 85"
Hydraulic unit dimensions: 46" x 30" x 34"
Coolant unit dimensions: 54" x 26" x 27"
Machine weight: approx. 12,300 lbs

Column type design
Automatic incremental downfeed
Power rapid wheelhead positioning
Hydraulic table traverse
Power crossfeed
Ball screw on crossfeed axis
Manual wheel dresser
Electromagnetic chuck 19-5/8" x 39.4"
Variable hold neutralizer control
Coolant system with paper filtration
Magnetic separator
Meehanite casting construction
Turcite-B coated ways
Automatic lubrication system
External hydraulic system with dual pumps
Oil cooler system
3 phase motor system
