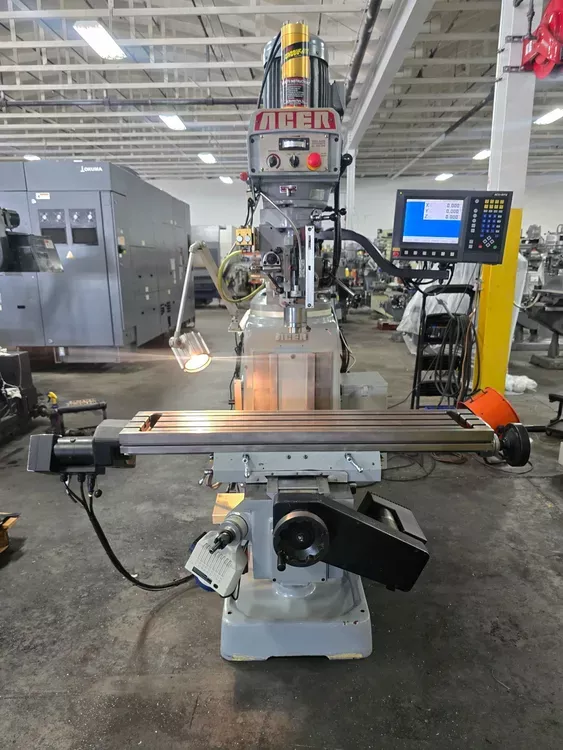

Acer E-MILL 3VK CNC Vertical 4,500 RPM

X-axis travel: 34″
Y-axis travel: 16″
Z-axis knee travel: 16″
Ram traverse: 20″
Quill travel: 5″

Control: Acu-Rite MP2 MillPwr
Display: 10″ color LCD
Memory: 1.25 MB
Storage: 2.5 GB flash
Processor: 1 GHz Intel Celeron
Axis control: 2-axis CNC with 3-axis DRO
Feedback: Closed-loop with 2µm glass scales
Error compensation: Linear and bidirectional non-linear
Graphics: 2D line, 3D line, 3D solid
Program size limit: 9999 steps
Ports: Ethernet, 2× USB, RS-232, floppy drive
Remote Stop/Go switch
Protection: IP54 front, IP40 rear

Spindle speed: 0–4,500 RPM
Spindle taper: R8
Spindle motor: 3 HP

Quill power feed rates: 0.0015″, 0.003″, 0.006″/rev
Quill diameter: 3-3/8″ chromed

Table size: 10″ × 50″
Max load on table: 900 lbs
T-slots: 3 × 5/8″

Torque-Rite power drawbar
Powered knee

Machine dimensions: 96″ × 62″ × 89″
Machine weight: 3,050 lbs
