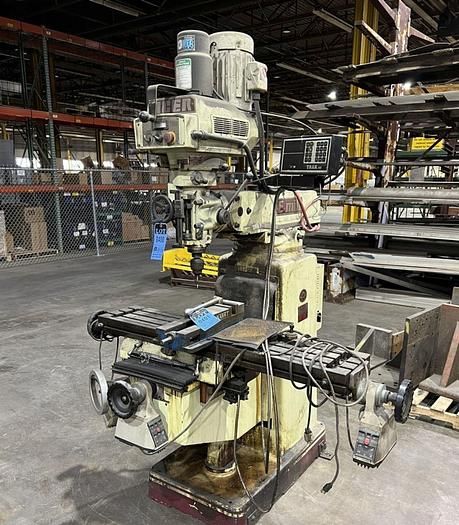

Acer EVS-3VK Vertical 4500 RPM

Table dimensions 10" x 50"
Table longitudinal travel (X-axis) 34"
Saddle cross travel (Y-axis) 16"
Knee vertical travel (Z-axis) 16"
Quill travel (Z-axis) 5"
Ram travel 20"

Spindle-center to column minimum 4"
Spindle-center to column maximum 27"
Spindle-nose to table minimum 1"
Spindle-nose to table maximum 18"

Quill diameter 3.375"
Spindle taper #R-8
Spindle-head swivel 90 degrees
Spindle-head tilt 45 degrees
Spindle speeds 60 to 4500 RPM

Power quill feeds .0015 to .006 IPR
Spindle motor 3 HP
Overall dimensions 98" x 79"
Weight approximately 3100 lbs
SWI "Trak 102" 2-axis digital readouts

Power longitudinal table feed
Power cross table feed
Power vertical table feed
Power down-feed to quill
Power draw bar
Kurt manual vise
