ACG PAM PAC BQS + Hi-Cart + CW 600 HAS + Pewo-Pack 250 Compact + DBM 40 +VC1380

Blister line composted of:

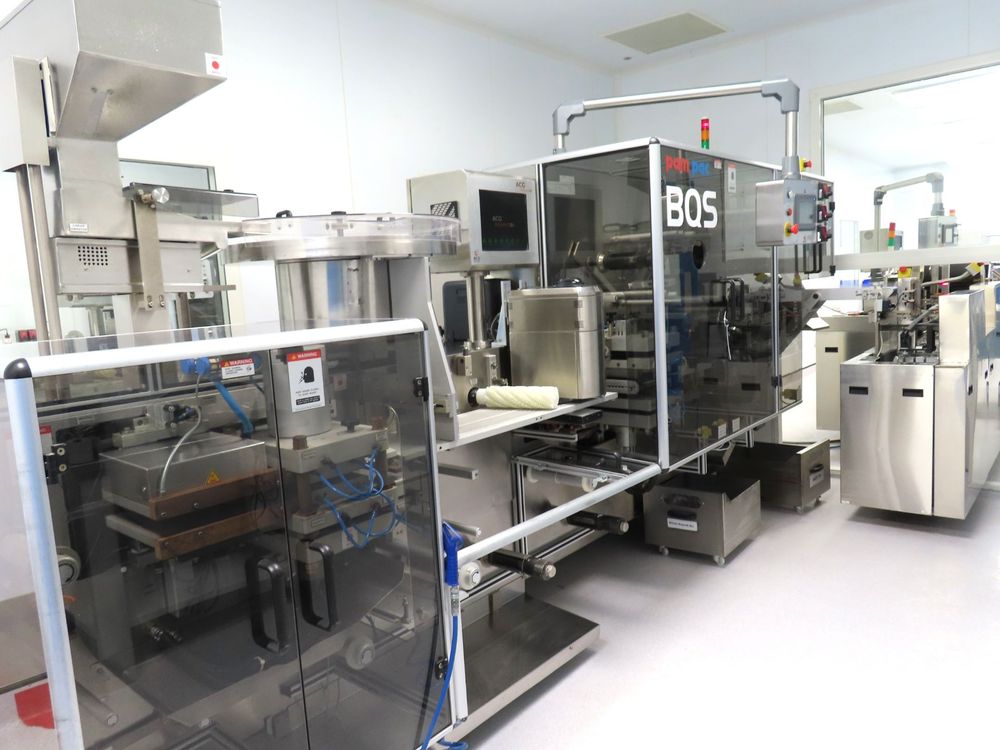

1. Pam Pac Blister Packer Machine, Model: BQS (2007)
Blister packaging of solid dosage products such as tablets, hard capsules and soft gelatine capsules.
Included ACG Control Panel. Thermal Forming and Cold (Alu-Alu) Forming System. S/Steel Hopper and Elizabeth Tablet Feeder. ACG Tablet Inspection System.
Technical specifications:
Thermoforming Up to 45 cycles / min
Cold-forming Up to 35 cycles / min
Forming depth
Thermoforming Up to 12 mm
Cold-forming Up to 9 mm
Maximum forming area: 240 mm × 180 mm
Forming materials PVC, PVC / PVdC, Aclar, Triplex (PVC / PE / PVdC), cold-form foil (Alu)
Lidding materials Push-through foil, child-resistant foil, peelable paper
Blister width up to 127 mm

2. Pam Pac Cartoner Machine, Model: Hi-Cart with ACG Control Panel (year 2007)
Applications
Blister packs, ampoules, vials, bottles, tubes, pouches, bags, sachets and soaps
Max output 180 cartons / min
4 chain:
Carton width: Min 20 mm - Max 75 mm
Carton height: Min 20 mm-Max 65 mm
Carton length: Min 95 mm -Max 200 mm
3. Pam Pac Checkweigher, CW 600 HAS Checks weight and detects metal contaminants. Wolke M600 Advanced Inkjet Printer.
Weight Capacity 600 g

4. Pester Pac Wrapper, Model: Pewo-Pack 250 Compact
Min./max. dimensions of the packaging unit:
- 60 x 30 x 60 mm [L x W x H] 360 x 180 x 250 mm [L x W x H].
Capacity: up to 80 packs/min.

5. ACG-Pam Semi Automatic Deblistering Machine, Model: DBM 40 for emptying capsules and tablets in PVC or aluminium blister packs.
Technical specifications: Maximum size that can be deblistered: 240 mm × 100 mm

6. Leak detector Lippke Mocon VC1380 detects the smallest leaks in tablet blisters and other flexible or (semi) rigid packages.
