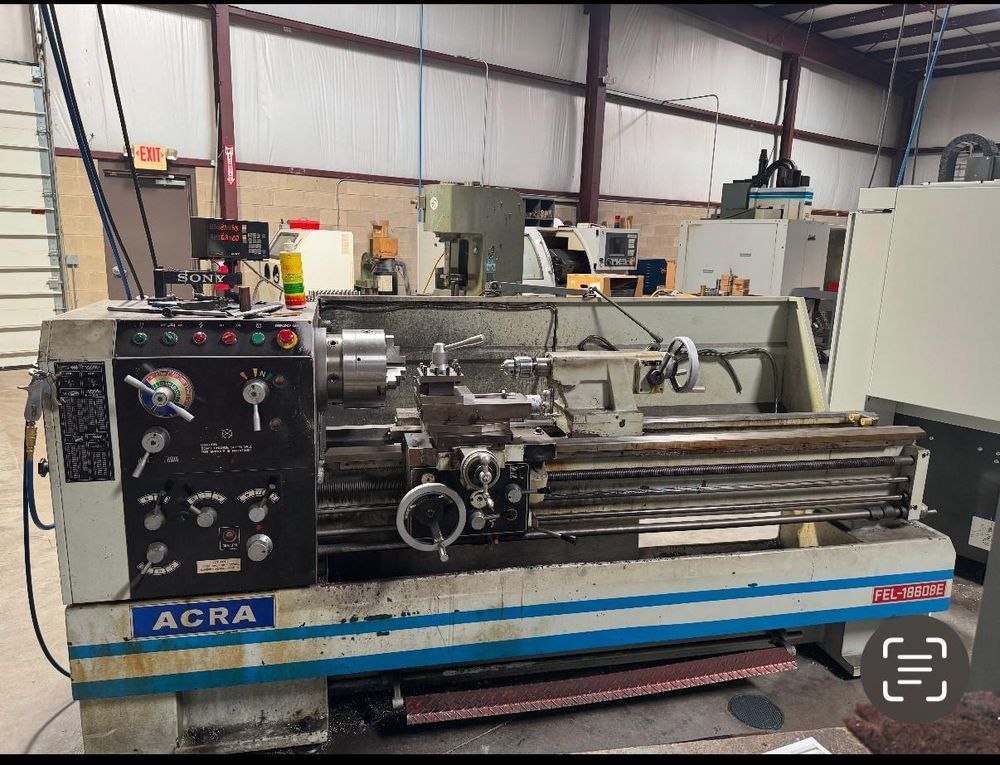

Acra Engine Lathe 1500 rpm FEL-1860BE

Swing over bed 18"
Swing over cross slide 11-7/16"
Swing in gap 26"
Distance between centers 60"
Spindle bore 3.22"
Spindle speeds 25–1500 rpm (12 steps)
Spindle nose D1-8
Feed changes 36
Longitudinal feed rate 0.0015"–0.004"
Thread range 2–72 TPI (45 ranges)
Tailstock spindle travel 6"
Tailstock spindle diameter 2.55"
Tailstock spindle taper No. 4 MT
Spindle motor 7.5 HP
Machine dimensions approximately 91" × 34" × 51" H
Machine weight approximately 4100 lbs
Sony 2-axis DRO
3-jaw chuck
4-jaw chuck
Collet closer
Foot treadle brake
Back splash guard
Operator’s manual with parts list
